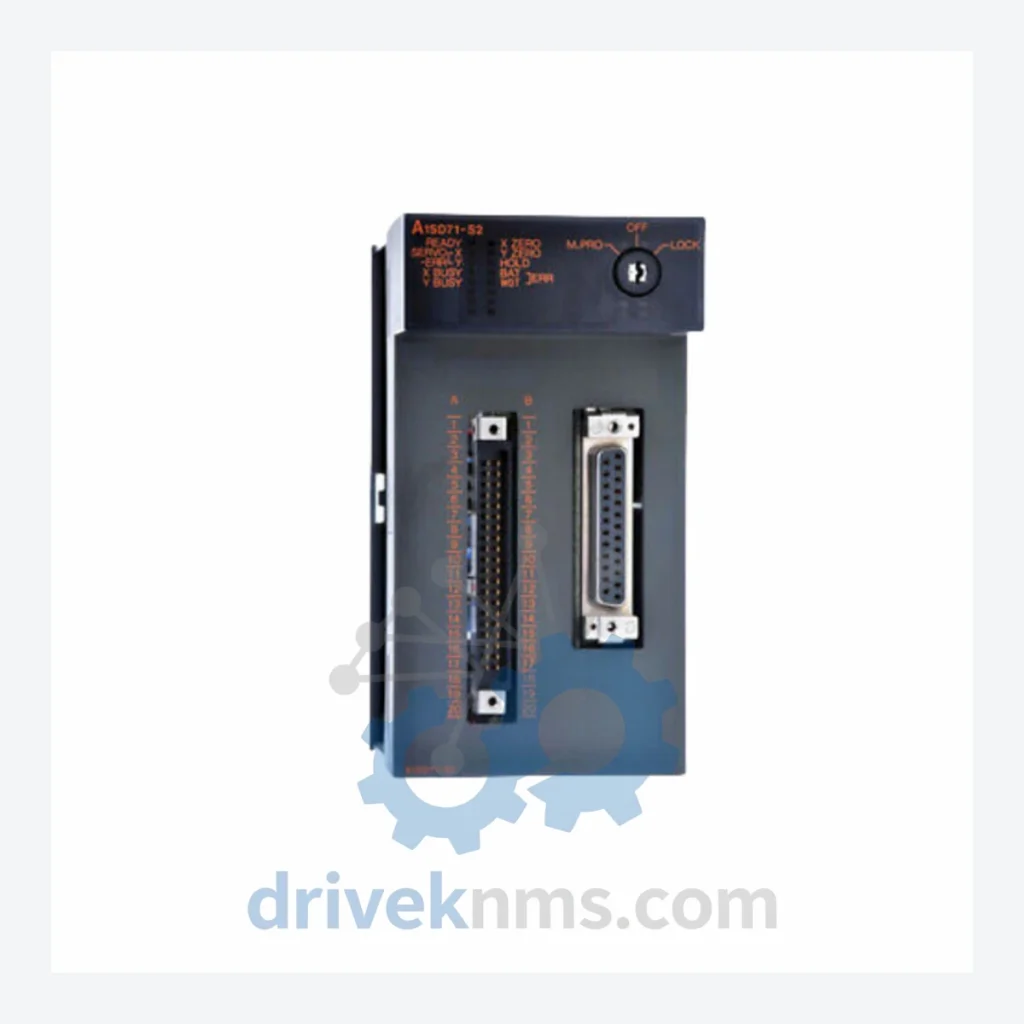

Mitsubishi A1SD71-S2 Positioning Module – Obsolete MELSEC A-Series Spare Part

When a positioning module fails on a MELSEC A-series line, the consequences are not limited to downtime. For facilities still operating Mitsubishi A-series PLC infrastructure, a single failed A1SD71-S2 can trigger a forced migration decision — one that carries engineering costs, new hardware procurement, system re-commissioning, and operator retraining that routinely exceed seven figures. The A1SD71-S2 has been discontinued by Mitsubishi Electric. Replacement with a modern equivalent is not a drop-in process; it requires hardware reconfiguration, ladder logic rewriting, and in many cases, a full safety re-validation. DriveKNMS holds physical stock of the A1SD71-S2. For plant managers facing an unplanned failure or building a long-term spares buffer, this is a direct path to avoiding that cost.

Technical Specifications

Note: Electrical parameters beyond the above are not published here to avoid inaccuracy. Verified specifications are available upon request with supporting documentation.

Solving the Discontinued Hardware Crisis

The Mitsubishi MELSEC A-series platform was the backbone of discrete manufacturing automation across Asia, Europe, and North America through the 1990s and into the 2000s. Many of these systems remain in production today — not because of inertia, but because the processes they control are stable, validated, and deeply integrated into facility infrastructure. The A1SD71-S2 handles single-axis positioning control within this architecture. It communicates directly with the A-series CPU backplane and executes positioning commands that, in many installations, are embedded in decades of refined ladder logic. There is no modern Mitsubishi module that slots into the same base, accepts the same wiring, and runs the same program without modification. Sourcing a genuine A1SD71-S2 is the only way to restore the system to its validated state without triggering a re-engineering project. For plant engineers and maintenance managers, the calculus is straightforward: the cost of this module is a fraction of one day of unplanned production stoppage, and an order of magnitude less than a forced system migration.

How to Extend Your Automation Asset Life by 5–10 Years Through Strategic Spare Parts Management

Facilities that successfully operate legacy automation systems well beyond their nominal end-of-life share a common practice: they treat critical spare parts as capital assets, not consumables. For a MELSEC A-series installation, a structured approach to asset life extension involves three concrete steps. First, conduct a failure mode audit — identify every module in the system that has no available OEM replacement and rank them by criticality to production continuity. The A1SD71-S2 will appear near the top of that list for any line with positioning requirements. Second, establish a minimum buffer stock. A single spare is a single point of failure. Two units — one on the shelf, one in the machine — provides genuine protection against an unplanned outage while the second unit is sourced. Third, document the firmware version and configuration parameters of every installed module. For the A1SD71-S2, this means preserving the positioning data and program currently loaded, so that a replacement unit can be restored to operational state without relying on institutional memory. These steps do not require capital expenditure on new systems. They require discipline and a reliable source for the hardware. DriveKNMS specializes in exactly this supply chain function for legacy industrial components.

Condition & Reliability Assurance

Discontinued modules sourced from the secondary market carry real risk if they are not properly evaluated before installation. DriveKNMS applies a 5-step quality process to every A1SD71-S2 unit before it is offered for sale.

Step 1 – Visual and Mechanical Inspection: Full board inspection for physical damage, burn marks, cracked solder joints, and connector pin condition. Units with any structural compromise are rejected at this stage.

Step 2 – Electrolytic Capacitor Assessment: A-series modules of this age are subject to electrolytic capacitor degradation. Each unit is evaluated for capacitor bulging, leakage, and ESR deviation. Where degradation is confirmed, capacitors are replaced with specification-matched components before the unit proceeds.

Step 3 – Pin and Connector Corrosion Check: Backplane connector pins are inspected under magnification for oxidation and corrosion. Affected pins are cleaned and treated. Units with irreversible pin damage are rejected.

Step 4 – Firmware Version Verification: The firmware version present on the unit is documented and disclosed. Where version information can be confirmed against known A1SD71-S2 firmware releases, this is included in the unit's documentation package.

Step 5 – Functional Power-On Test: Each unit undergoes a power-on test to confirm basic operational status prior to shipment.

Units that pass all five stages are classified as Tested Refurbished. New Old Stock units that have not been previously installed are offered separately and identified as NOS.

Key Features for System Maintenance

The A1SD71-S2 is a direct hardware replacement for a failed unit in any compatible MELSEC A-series installation. It occupies the same slot, uses the same backplane interface, and operates with the existing positioning program — no ladder logic rewriting, no I/O remapping, no engineering change orders. This is the defining advantage of sourcing the original part number rather than attempting a cross-platform substitution. Facilities that have attempted to substitute a newer Mitsubishi positioning module into an A-series rack have encountered compatibility barriers at the CPU communication level that require significant software engineering to resolve. The A1SD71-S2 eliminates that risk entirely. Installation is a maintenance task, not an engineering project.

FAQ

What warranty applies to a discontinued module like the A1SD71-S2?
DriveKNMS provides a 90-day warranty on all tested refurbished units covering functional failure under normal operating conditions. New Old Stock units carry a 30-day inspection warranty. Warranty terms are confirmed in writing at the time of order.

How do I know the unit is genuine and not counterfeit?
All A1SD71-S2 units sourced by DriveKNMS are inspected for authenticity markers including board markings, component layout, and manufacturer identification. We do not source from unverified brokers. Provenance documentation is available on request for units where supply chain records exist.

Should I buy more than one unit?
For any facility where the A-series system is expected to remain in service for more than two years, holding a minimum of two A1SD71-S2 units is a defensible maintenance strategy. Secondary market availability of this part number is declining. Units available today may not be available at the moment of an unplanned failure.

Can you supply other MELSEC A-series modules?
Yes. DriveKNMS maintains inventory across the MELSEC A-series range. Contact us with your full bill of materials for a consolidated availability check.
