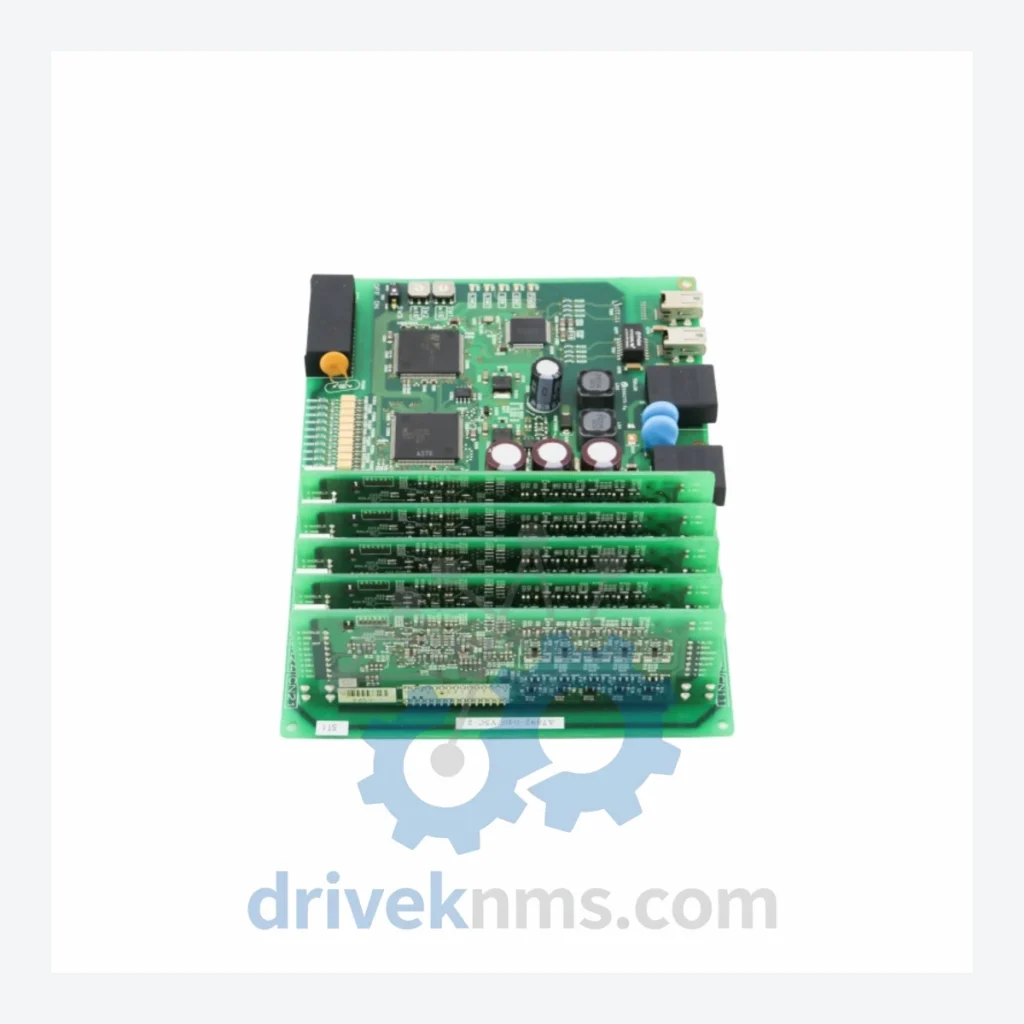

ORIENTAL Motor PCB Assembly Modules: A7892-0407Y5C-1 3870-02203 CDN127R-9

Technical Dossier

Product Details And Specifications

ORIENTAL Motor PCB Assembly Series: Comprehensive Module Range and Technical Overview

ORIENTAL MOTOR Co., Ltd. (Japan) is a globally recognized manufacturer of fractional horsepower motors and motion control systems. The Motor PCB Assembly series — including the A7892-0407Y5C-1 / 3870-02203 / CDN127R-9 — represents the driver and control board sub-assemblies used across ORIENTAL's stepper motor, AC motor, and brushless DC motor product lines. These PCB assemblies are installed in industrial automation equipment across chemical plants, semiconductor fabrication facilities, food processing lines, nuclear facility auxiliary systems, and oil refinery instrumentation. The boards serve as the core interface between the motor driver electronics and the mechanical drive unit, handling current regulation, feedback signal processing, and fault detection logic.

The Evolution of ORIENTAL Motor PCB Assembly Architecture

ORIENTAL MOTOR's PCB assembly architecture has evolved across several product generations. Early-generation boards (1980s–1990s) used through-hole component construction with discrete transistor arrays for current switching. Mid-generation designs (late 1990s–2000s) transitioned to surface-mount technology (SMT), integrating PWM control ICs and optocoupler isolation layers. Modern assemblies (2010s–present) incorporate MOSFET-based H-bridge circuits, onboard microcontrollers for closed-loop feedback, and conformal coating for industrial environment protection.

Cross-generation compatibility is a known challenge: PCB assemblies are typically model-specific and are not interchangeable across motor frame sizes or driver series without engineering verification. Boards from the CDN, CSA, CVD, and RKS driver families each carry distinct connector pinouts, voltage ratings, and firmware dependencies. Sourcing the correct assembly number — including sub-revision codes such as Y5C-1 — is critical to ensure functional compatibility.

ORIENTAL Motor PCB Assembly Full Catalog & Functionalities (SKU List)

The following SKUs represent confirmed ORIENTAL MOTOR PCB assembly and driver board part numbers across multiple product families. Each entry reflects a distinct functional role within the motor control system:

A7892-0407Y5C-1 / 3870-02203 / CDN127R-9: Motor driver PCB assembly for CDN series stepper driver unit, current regulation and phase switching board.
A7892-0407Y5C: Base revision of the Y5C driver board, predecessor to the -1 revision; used in earlier CDN127 driver configurations.
CDN127R-9: Driver unit reference designator for the CDN127 series; R-9 denotes revision 9 of the control PCB.
3870-02203: ORIENTAL internal assembly part number cross-referencing the A7892-0407Y5C-1 board within the CDN127 driver chassis.
A7892-0407Y4C: Prior-generation driver PCB for CDN127 series; Y4C revision; functionally similar but with different gate driver IC.
A7892-0406Y5C: Parallel-series PCB assembly for CDN116 driver unit; lower current rating variant.
A7892-0408Y5C: Higher-current variant PCB for CDN series; used in CDN140 and CDN145 driver units.
CSA-UP56D2: PCB assembly for CSA series AC speed control driver; includes triac firing circuit board.
CVD2114S-K: Driver PCB assembly for CVD series 2-phase stepper driver; SMT construction with onboard current setting DIP switches.
CVD514BR-K: Compact PCB assembly for CVD5 series bipolar stepper driver; includes regenerative circuit board.
RKS543BC-T: PCB assembly for RKS series closed-loop stepper driver; integrates encoder feedback processing circuit.
RKSD503-A: Driver board assembly for RKS series; includes RS-485 communication interface PCB.
ASD36A-A: PCB assembly for ASD series AC servo driver; includes current feedback and resolver interface board.
BXS6200M-10: Control PCB assembly for BX series brushless DC motor driver; includes Hall sensor signal conditioning circuit.
NX940AS-3: PCB assembly for NX series network-compatible stepper driver; includes EtherNet/IP communication board.
AR46SAK-T3: Driver PCB assembly for AR series closed-loop stepper system; includes absolute encoder interface board.
DFC100EC2: Power supply PCB assembly for DC input driver units; includes EMI filter and inrush current limiting circuit.

Sourcing Hard-to-Find & Obsolete ORIENTAL Motor PCB Assembly Parts

The CDN series driver units, including the CDN127 family, have reached end-of-production status. ORIENTAL MOTOR no longer manufactures replacement PCB assemblies for these units as standard catalog items. Field replacements depend entirely on aftermarket inventory, refurbished pull-outs, or new-old-stock (NOS) boards sourced from authorized distributors and specialist suppliers.

DriveKNMS maintains a dedicated inventory of ORIENTAL MOTOR PCB assemblies, including hard-to-find revision-specific boards such as the A7892-0407Y5C-1. Our sourcing network covers original manufacturer surplus, decommissioned equipment disassembly, and verified third-party refurbishment channels. For obsolete part numbers where direct replacements are unavailable, DriveKNMS provides cross-reference analysis to identify functionally equivalent assemblies from current ORIENTAL product lines or compatible third-party alternatives. All sourced boards are documented with traceability records including origin, inspection date, and test results.

Quality Control for the ORIENTAL Motor PCB Assembly Range

ORIENTAL Motor PCB assemblies present specific testing challenges due to their integration of high-frequency PWM switching circuits, optocoupler isolation stages, and motor-specific current feedback networks. DriveKNMS applies the following inspection protocol to all incoming and outgoing PCB assemblies in this series:

Visual Inspection: Examination of solder joints, component seating, conformal coating integrity, and connector pin condition under magnification. Boards with evidence of thermal stress, corrosion, or mechanical damage are quarantined.
Electrical Continuity Test: Point-to-point continuity verification against reference schematics for all signal traces, power rails, and ground planes.
Functional Load Test: Board is installed in a matched CDN series driver chassis and operated under controlled load conditions using a calibrated motor test bench. Phase current output, switching frequency, and fault response are measured against OEM specifications.
Isolation Test: Hi-pot testing between power and signal circuits to verify optocoupler and galvanic isolation integrity.
Burn-In Cycle: Extended operation at rated current for a minimum of 4 hours to screen for latent component failures before shipment.
