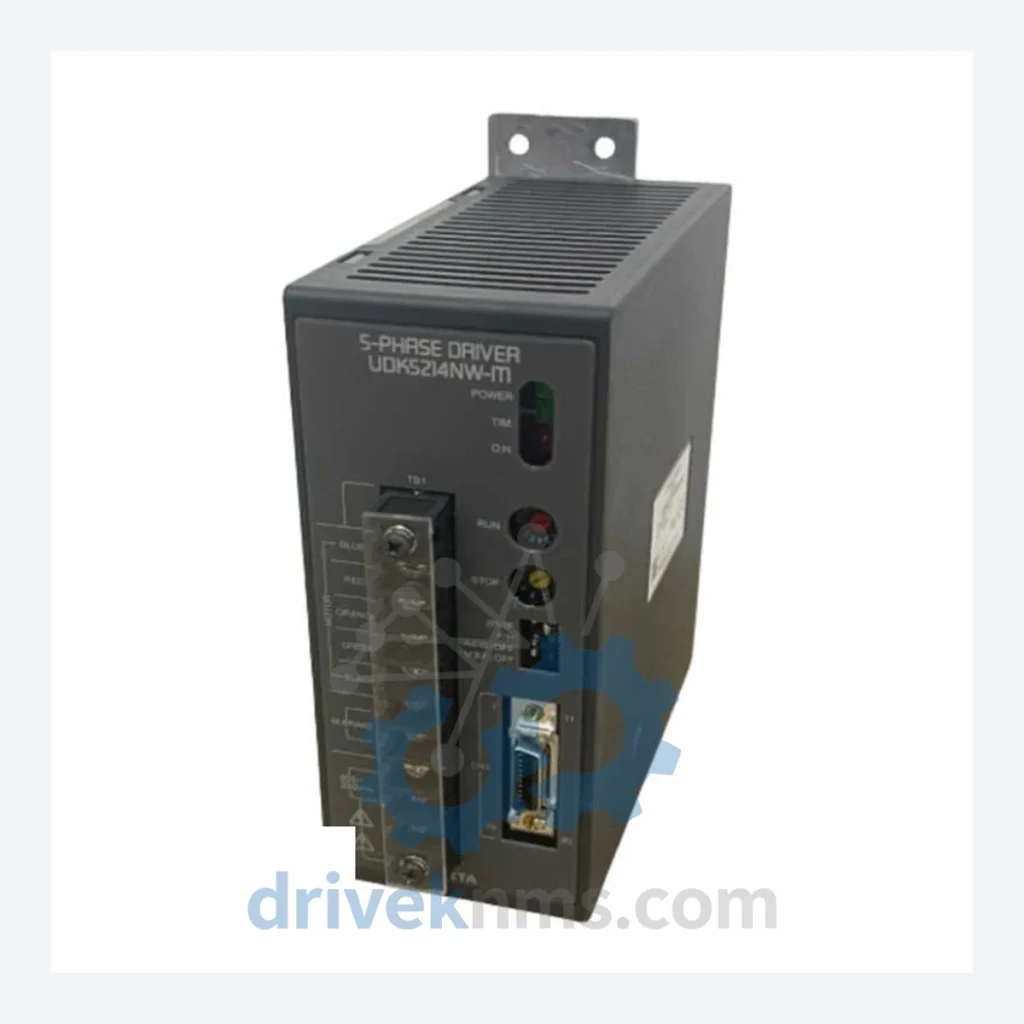

Oriental Motor UDK5214NW-M Stepper Motor Driver – Obsolete CVK Series Spare Part

Technical Dossier

Product Details And Specifications

Oriental Motor UDK5214NW-M Stepper Motor Driver – Obsolete CVK Series Spare Part

RFQ support for obsolete parts: Send the model number, required quantity and destination so DriveKNMS can confirm sourcing options before quotation.

Technical Specifications

Note: Electrical parameters such as input voltage range, output current, and step resolution are not listed here to avoid inaccurate data. Please contact us directly for verified technical documentation and datasheet access.

Solving the Discontinued Hardware Crisis

The CVK Series driver platform was widely deployed across precision automation equipment manufactured between the late 1990s and early 2010s — semiconductor wafer handling stages, medical device assembly lines, optical inspection systems, and multi-axis positioning tables. The UDK5214NW-M, as a pulse-input driver within this family, was integrated at the motion control layer of machines that were engineered to run for 20 to 30 years.

Oriental Motor's discontinuation of this driver does not retire the machines it powers. Facilities operating this equipment face a binary choice: locate a verified replacement driver, or commit to a system-level redesign that disrupts production schedules, consumes engineering resources, and introduces new compatibility risks across the entire motion control chain.

Legacy automation assets depreciate on paper, but their replacement cost in practice is measured in production weeks lost, not component prices. The UDK5214NW-M is a load-bearing component in systems that cannot be casually retired.

Condition & Reliability Assurance

DriveKNMS applies a structured five-step inspection protocol to all discontinued driver units before they are offered for sale. This process is designed specifically for the failure modes common to stepper motor drivers that have been in storage or light service for extended periods.

Step 1 – Electrolytic Capacitor Assessment: Capacitors in power supply and filter stages are inspected for physical deformation, electrolyte leakage, and ESR deviation. Aged capacitors are the primary cause of intermittent driver faults in legacy units.

Step 2 – Firmware and Configuration Verification: Where applicable, onboard DIP switch settings and firmware revision markings are documented and cross-referenced against known production configurations for the UDK5214NW-M.

Step 3 – Pin and Connector Corrosion Inspection: All I/O connectors, motor output terminals, and signal input pins are examined under magnification for oxidation, mechanical deformation, and contact resistance anomalies.

Step 4 – Power-On Functional Test: Units are bench-tested under controlled conditions to verify driver response to pulse input signals and confirm absence of fault output conditions.

Step 5 – Packaging and ESD Protection: Units are packaged in anti-static materials with desiccant to prevent moisture ingress during transit and storage.

Units that do not pass all five stages are not offered for sale. Condition grade (New, Refurbished-Grade-A, or Tested-Used) is disclosed at the time of quotation.

Key Features for System Maintenance

The UDK5214NW-M is a direct drop-in replacement for failed units within the same CVK Series driver family. No reprogramming of the motion controller is required. No modification to the machine's pulse generator or PLC output card is necessary. The mechanical form factor, connector pinout, and signal interface are preserved, which means a qualified maintenance technician can complete the swap without involving a motion control engineer.

For facilities that have standardized on Oriental Motor CVK Series motion across multiple machines, maintaining a centralized spare parts inventory of UDK5214NW-M units is a documented risk mitigation strategy — not a discretionary expense.

Extending Legacy Automation Asset Life by 5–10 Years: A Maintenance Strategy for Plant Management

Automation equipment built on platforms like the Oriental Motor CVK Series was engineered with a design life measured in decades. The mechanical structures, precision ground leadscrews, and linear guides on these machines do not wear out on the same timeline as their electronic control components. A machine frame that is structurally sound and mechanically accurate can continue producing at specification for years beyond the point at which its original control electronics become unavailable through normal distribution channels.

The practical strategy for extending asset life in this context involves three disciplines:

Critical Spare Identification: Map every electronic control component on each machine to its current sourcing status status. Drivers, encoders, servo amplifiers, and motion controllers from discontinued product lines should be flagged as critical spares. The UDK5214NW-M is a representative example — a component that is no longer manufactured but remains essential to machine function.

Plant managers who apply these three disciplines to their legacy CVK Series equipment can realistically extend productive asset life by five to ten years beyond the point at which the original manufacturer discontinued support. The capital cost of this strategy is a small fraction of the cost of premature system retirement.

Q: How do I know the unit is genuine and not a counterfeit?
A: All units are inspected for authentic Oriental Motor labeling, date codes, and construction characteristics consistent with genuine production units. We do not source from unverified secondary markets. Provenance documentation is available on request.

Q: Do you accept returns?
A: Returns are accepted within 30 days for units that arrive in a condition inconsistent with the stated grade. Units must be returned in original packaging. Contact us before initiating any return.
