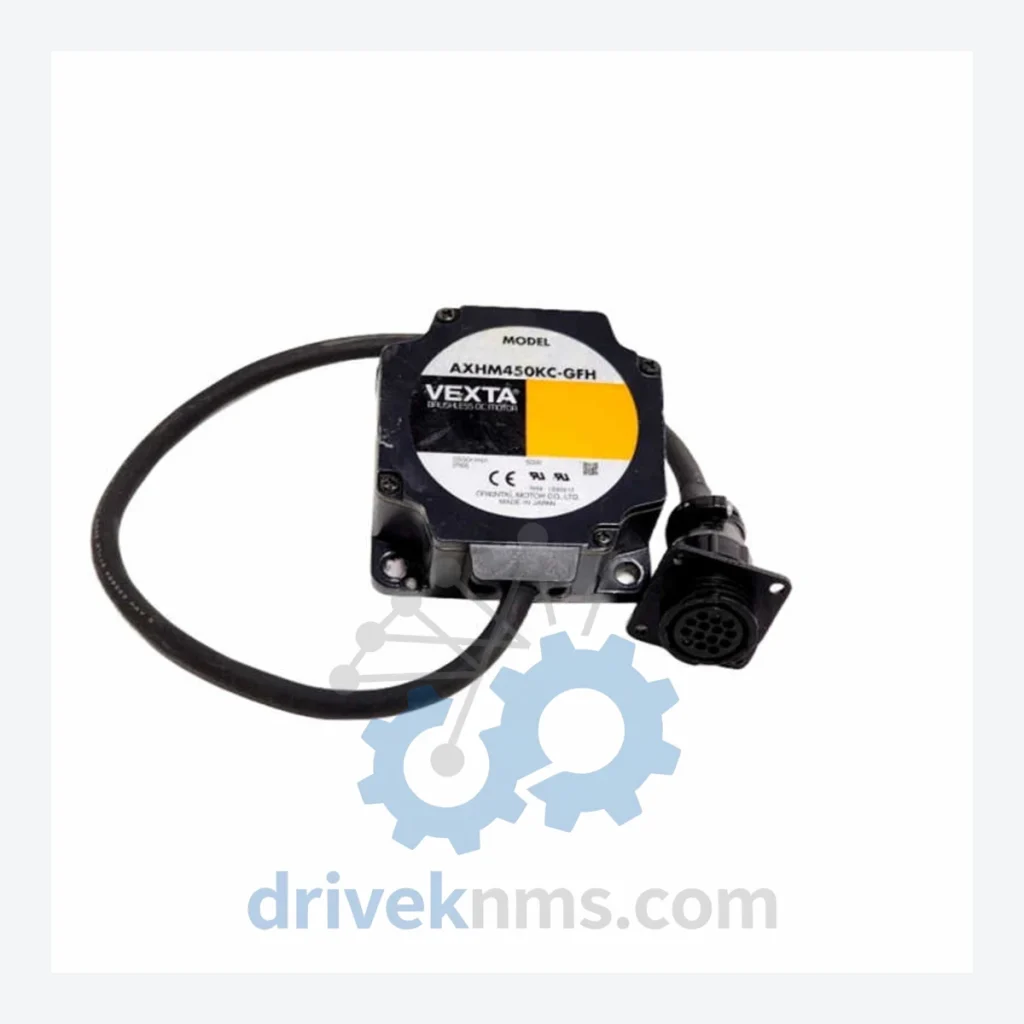

Oriental Motor VEXTA AXHM Series Modules: AXHM450KC-GFH

Technical Dossier

Product Details And Specifications

Oriental Motor VEXTA AXHM Series: Comprehensive Module Range and Technical Overview

The Oriental Motor VEXTA AXHM series represents a mature, field-proven line of 5-phase stepper motor driver packages widely deployed across global heavy industry. Installations span petrochemical processing plants, nuclear facility auxiliary systems, oil refinery instrumentation loops, semiconductor fabrication equipment, and precision packaging lines. The AXHM designation covers integrated driver-motor combinations engineered for high-resolution positioning with minimal vibration — a critical requirement in process-critical environments where mechanical resonance causes measurement error or product defects. The series has accumulated decades of installed base across Asia, Europe, and North America, making long-term spare parts availability a primary operational concern for maintenance engineers and procurement teams.

The Evolution of VEXTA AXHM Architecture

Oriental Motor introduced the VEXTA brand as its industrial-grade stepper motion control platform in the 1970s. The AXHM sub-series emerged as a compact, self-contained driver-motor package targeting applications requiring 0.72° full-step resolution with 5-phase excitation — a configuration that delivers significantly smoother motion than conventional 2-phase designs at equivalent torque output.

Early AXHM units used analog current control circuits with DIP-switch step resolution selection. Mid-generation revisions introduced microstepping capability (up to 1/10 step), improved thermal management via aluminum heat-sink housings, and expanded input voltage tolerance. The KC suffix variants (e.g., AXHM450KC-GFH) denote the integrated driver-motor configuration with connector-type (GFH) termination, designed for panel-mount installation with standardized cable harness interfaces.

As the series entered its maturity phase, Oriental Motor transitioned new designs toward the CVK and RK series platforms with enhanced network communication (RS-485, EtherCAT). AXHM units are no longer in active production for most frame sizes, placing the entire range in the lifecycle maintenance category. Facilities running AXHM-based motion axes must source replacement units from authorized distributors or certified secondary-market suppliers to avoid unplanned downtime.

VEXTA AXHM Full Catalog & Functionalities (SKU List)

The following SKUs represent the documented VEXTA AXHM series range. Units are classified by driver output current rating and motor frame size. All models are 5-phase stepper driver-motor packages unless otherwise noted.

AXHM230KC-GFH: 5-phase stepper driver-motor, 0.23 A/phase, compact frame, connector termination.
AXHM230KC-GF: 5-phase stepper driver-motor, 0.23 A/phase, lead-wire termination variant.
AXHM450KC-GFH: 5-phase stepper driver-motor, 0.45 A/phase, standard frame, panel-mount connector type — primary SKU for this listing.
AXHM450KC-GF: 5-phase stepper driver-motor, 0.45 A/phase, lead-wire output configuration.
AXHM460KC-GFH: 5-phase stepper driver-motor, 0.46 A/phase, enhanced torque variant, connector termination.
AXHM460KC-GF: 5-phase stepper driver-motor, 0.46 A/phase, lead-wire termination.
AXHM550KC-GFH: 5-phase stepper driver-motor, 0.55 A/phase, mid-frame, connector type.
AXHM550KC-GF: 5-phase stepper driver-motor, 0.55 A/phase, lead-wire output.
AXHM560KC-GFH: 5-phase stepper driver-motor, 0.56 A/phase, high-resolution microstepping capable.
AXHM660KC-GFH: 5-phase stepper driver-motor, 0.66 A/phase, large frame, connector termination.
AXHM660KC-GF: 5-phase stepper driver-motor, 0.66 A/phase, lead-wire output, high-torque configuration.
AXHM900KC-GFH: 5-phase stepper driver-motor, 0.90 A/phase, maximum frame size, connector type.
AXHM900KC-GF: 5-phase stepper driver-motor, 0.90 A/phase, lead-wire, high-load positioning axis.
AXHM230K-GFH: Earlier generation 5-phase unit, 0.23 A/phase, without KC driver revision, connector type.
AXHM450K-GFH: Earlier generation 5-phase unit, 0.45 A/phase, predecessor to AXHM450KC-GFH.
AXHM660K-GFH: Earlier generation 5-phase unit, 0.66 A/phase, large frame, pre-KC revision.
AXHM900K-GFH: Earlier generation 5-phase unit, 0.90 A/phase, maximum torque, pre-KC driver board.

Sourcing Hard-to-Find & Obsolete VEXTA AXHM Parts

DriveKNMS maintains a dedicated inventory program for discontinued Oriental Motor VEXTA AXHM units. As the AXHM series has reached end-of-production status across most frame sizes, OEM replacement channels are no longer a reliable source for maintenance procurement. DriveKNMS addresses this gap through three supply pathways:

First, new-old-stock (NOS) units sourced from verified industrial surplus channels and original distributor closeouts. Second, factory-refurbished units that have undergone full disassembly, component-level inspection, and driver board recertification. Third, cross-reference matching to identify compatible current-production Oriental Motor equivalents (CVK, RK series) where mechanical and electrical substitution is feasible without axis reconfiguration.

Quality Control for the VEXTA AXHM Range

AXHM series units present specific inspection challenges due to their integrated driver-motor architecture. The driver PCB, power stage, and motor winding share a common housing, requiring functional testing under load rather than simple continuity checks. DriveKNMS applies the following test protocol to all AXHM units processed through its facility:

Step excitation verification: each unit is driven through full-step, half-step, and 1/10 microstepping modes using a calibrated pulse generator. Output torque is measured at rated speed against the published torque-speed curve. Driver thermal performance is evaluated under continuous duty at rated current for a minimum 30-minute burn-in cycle. Connector integrity (GFH type) is inspected for pin retention force and contact resistance. Units failing any parameter are quarantined and documented; no borderline units are released to stock.
