Allen-Bradley 1746-OB32/D DC Output Module – Obsolete SLC 500 Spare Part

Technical Dossier

Product Details And Specifications

Allen-Bradley 1746-OB32/D DC Output Module – Obsolete SLC 500 Spare Part

RFQ support for obsolete parts: Send the model number, required quantity and destination so DriveKNMS can confirm sourcing options before quotation.

Technical Specifications

Solving the Discontinued Hardware Crisis

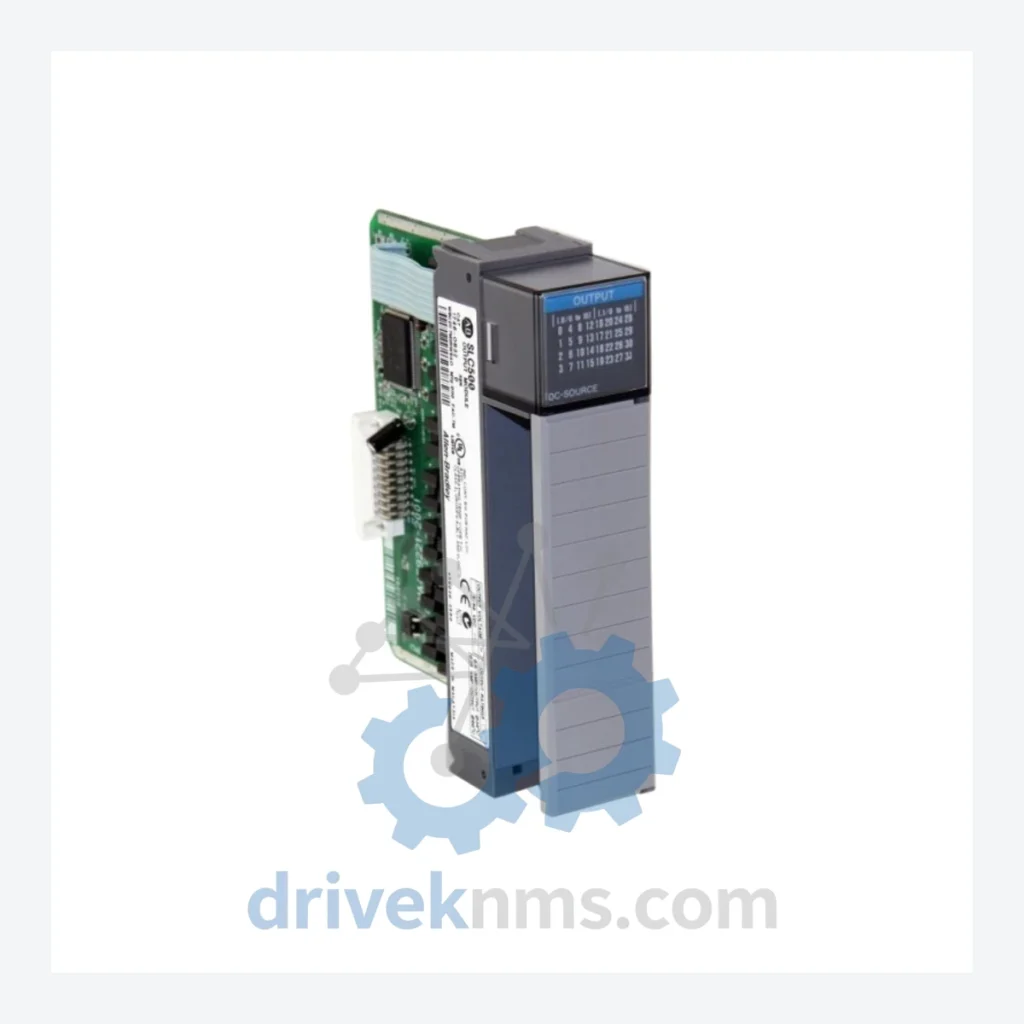

The SLC 500 platform was the backbone of North American discrete manufacturing for over two decades. Automotive stamping lines, food and beverage packaging systems, material handling conveyors, and water treatment SCADA installations were built around it. The 1746-OB32/D, as a 32-point sourcing DC output module, handled the highest-density digital output requirements within that architecture — driving solenoids, relay coils, indicator panels, and actuator interfaces simultaneously.

Rockwell Automation's end-of-life announcement for the SLC 500 line did not retire the installed base. Hundreds of thousands of SLC 500 racks remain in active service globally. The output modules — particularly high-density variants like the OB32 — are the first components to show wear under continuous duty cycles. Transistor output stages degrade. Surge suppression components age. The result is intermittent faults that escalate into hard failures without warning.

This approach has been demonstrated to defer platform migration by 5 to 10 years in facilities where the control system itself remains mechanically and functionally sound. The cost of the spare parts program over that period is consistently lower than the cost of a single unplanned migration event.

Condition & Reliability Assurance

Sourcing discontinued modules from the secondary market carries inherent risk. DriveKNMS applies a 5-step quality assurance process to every 1746-OB32/D unit before it is offered for sale.

Step 1 – Visual and Physical Inspection: Each unit is examined for physical damage, housing cracks, terminal block integrity, and label legibility. Units with evidence of field modification, burn marks, or mechanical damage are rejected at this stage.

Step 2 – Electrolytic Capacitor Assessment: Output modules of this generation use electrolytic capacitors in their power conditioning circuits. Capacitor aging is the primary failure mode in stored or lightly used units. Each unit undergoes ESR (Equivalent Series Resistance) measurement to identify degraded capacitors before the unit reaches the customer.

Step 3 – Firmware and Series Revision Verification: The 1746-OB32 was produced across multiple series revisions (A through D). Series revision affects compatibility with specific processor firmware versions. Each unit is verified against its labeled revision and documented accordingly.

Step 4 – Pin and Connector Inspection: Backplane connector pins are inspected under magnification for corrosion, bending, and contact surface oxidation. Output terminal blocks are checked for corrosion and mechanical integrity. Affected units are cleaned or rejected based on severity.

Step 5 – Functional Verification: Where test infrastructure permits, units are powered and output point activation is verified across all 32 channels. Results are logged and accompany the unit documentation.

Key Features for System Maintenance

Q: How do I confirm the unit is new or quality-refurbished?
A: Each unit is accompanied by a condition report generated during our 5-step QA process. Units are classified as New (unused, original packaging), Refurbished (tested, cleaned, reconditioned), or Tested-Used (functional, field-pulled, documented). Condition classification is confirmed before invoicing.

Q: Can this module be used in a 1747 or 1771 chassis?
A: No. The 1746-OB32/D is designed exclusively for the 1746 SLC 500 chassis backplane. It is not compatible with the PLC-5 (1771) or MicroLogix platforms.
