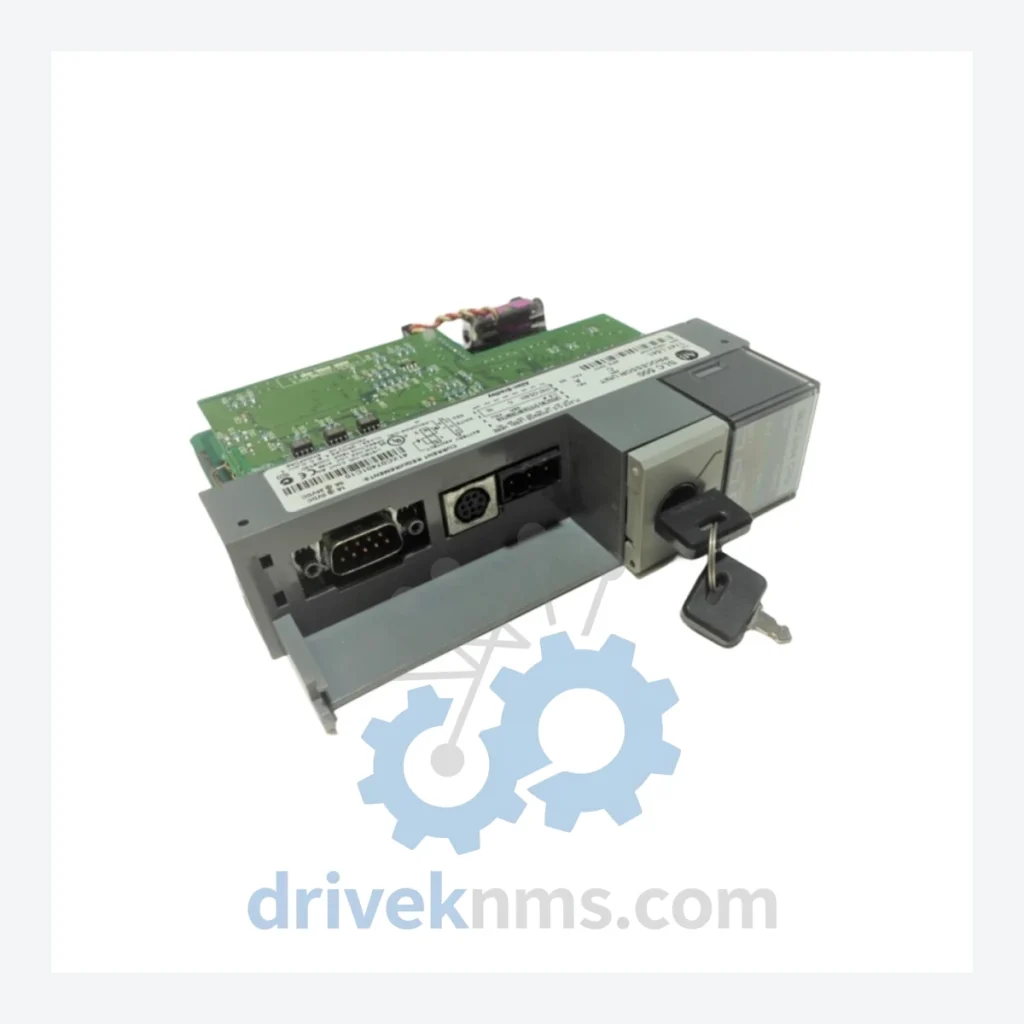

Allen-Bradley SLC 500 Modules – 1747-L541/C

Technical Dossier

Product Details And Specifications

Allen-Bradley SLC 500 Series Technical Notes

The Allen-Bradley SLC 500 (Small Logic Controller 500) is one of Rockwell Automation's most widely deployed programmable logic controller platforms in global heavy industry. Installed across petrochemical refineries, nuclear auxiliary systems, pulp and paper mills, water treatment facilities, and automotive assembly lines, the SLC 500 platform has accumulated decades of field-proven reliability. Its modular rack-based architecture — built around the 1747 and 1746 product families — allows engineers to configure systems ranging from compact 4-slot chassis to expanded 13-slot configurations with distributed I/O. The platform's longevity means that a significant portion of the global installed base remains in active production, making spare parts availability a critical operational concern for maintenance engineers worldwide.

The Evolution of SLC 500 Architecture

The SLC 500 platform was introduced by Allen-Bradley (subsequently acquired by Rockwell Automation) in the late 1980s as a mid-range successor to the SLC 100 and SLC 150 fixed controllers. The architecture evolved through several distinct generations:

Generation 1 — SLC 5/01 & 5/02 (1747-L511, 1747-L514, 1747-L524): Established the baseline 1746 backplane architecture with DH-485 communication and 1K–4K word memory. These units remain in service in legacy installations where platform migration is cost-prohibitive or operationally restricted.

Generation 3 — SLC 5/04 (1747-L541, 1747-L541/C, 1747-L542, 1747-L543): Added DH+ network communication, enabling integration into larger Allen-Bradley DH+ networks alongside PLC-5 systems. Memory expanded to 16K–64K words depending on variant. The /C revision of the 1747-L541 denotes a specific hardware and firmware revision with enhanced diagnostic registers and improved backplane communication stability.

Generation 4 — SLC 5/05 (1747-L551, 1747-L552, 1747-L553): Added native Ethernet/IP communication, representing the final major evolution of the SLC 500 platform before Rockwell Automation transitioned customers toward the ControlLogix and CompactLogix families.

End-of-Life Status: Rockwell Automation has formally discontinued the SLC 500 product line. Active production of new units has ceased. Given the scale of the global installed base, the SLC 500 remains a long-term maintenance commitment for thousands of facilities operating under regulatory or economic constraints that prevent platform migration. DriveKNMS provides dedicated lifecycle extension support for this platform.

SLC 500 Full Catalog & Functionalities (SKU List)

CPU / Processor Modules
1747-L511: SLC 5/01 CPU, 1K word user memory, DH-485 single port communication.
1747-L514: SLC 5/01 CPU, 4K word user memory, DH-485, expanded program capacity.
1747-L524: SLC 5/02 CPU, 4K word memory, DH-485, supports up to 4096 discrete I/O points.
1747-L531: SLC 5/03 CPU, 8K word memory, DH-485 + RS-232 DF1 dual-port communication.
1747-L532: SLC 5/03 CPU, 8K word memory, enhanced instruction set, online program editing.
1747-L541: SLC 5/04 CPU, 16K word memory, DH+ network + DF1 RS-232 dual-port.
1747-L541/C: SLC 5/04 CPU Rev C, 16K word memory, DH+ + DF1, online edit, enhanced diagnostics — primary SKU of this listing.
1747-L542: SLC 5/04 CPU, 32K word memory, DH+ + DF1, extended data table capacity.
1747-L543: SLC 5/04 CPU, 64K word memory, maximum capacity SLC 5/04 variant.
1747-L551: SLC 5/05 CPU, 16K word memory, Ethernet/IP + DF1 dual-port communication.
1747-L552: SLC 5/05 CPU, 32K word memory, Ethernet/IP, integrated web server functionality.
1747-L553: SLC 5/05 CPU, 64K word memory, full Ethernet/IP, maximum capacity variant.

Chassis / Rack (1746 Series)
1746-A4: 4-slot SLC 500 modular chassis, compact installation, standard 1746 backplane.
1746-A7: 7-slot SLC 500 modular chassis, mid-range I/O expansion capacity.
1746-A10: 10-slot SLC 500 modular chassis, high-density I/O configuration.
1746-A13: 13-slot SLC 500 modular chassis, maximum slot count for single-rack systems.

Digital Input Modules (DI)
1746-IB16: 16-point 24VDC digital input, sink/source compatible, standard discrete input.
1746-IA16: 16-point 120VAC digital input module, standard AC input for legacy field devices.
1746-IB32: 32-point 24VDC digital input, high-density discrete input module.

Digital Output Modules (DO)
1746-OB16: 16-point 24VDC transistor output module, sourcing type, standard discrete output.
1746-OW16: 16-point relay output, 120/240VAC or 24VDC, isolated contacts per output.
1746-OB32: 32-point 24VDC transistor output, high-density sourcing output module.

Analog I/O Modules (AI/AO)
1746-NI4: 4-channel analog input, 4–20mA / 0–10V selectable, 12-bit resolution.
1746-NI8: 8-channel analog input, high-density process signal acquisition, 12-bit.
1746-NO4I: 4-channel analog output, current output 4–20mA, isolated channels.

Communication & Specialty Modules
1747-SDN: DeviceNet scanner module, SLC 500 master node on DeviceNet network.
1747-SN: Remote I/O scanner, connects SLC 500 rack to 1771 Remote I/O network.
1747-KE: DH-485 to RS-232 interface module, protocol conversion for legacy serial devices.
1746-BAS: BASIC language module for SLC 500, custom logic via BASIC interpreter.

Quality Control for the SLC 500 Range

SLC 500 modules present specific test challenges due to the integrated backplane communication architecture and age-related failure modes common in legacy industrial electronics. DriveKNMS applies a structured test protocol to all SLC 500 units prior to dispatch:

Backplane Communication Verification: Each module is seated in a reference 1746 chassis and backplane signal integrity is confirmed across all data, address, and control lines. Modules exhibiting intermittent backplane faults are rejected at this stage.

CPU Functional Test: For processor modules including the 1747-L541/C, a full boot cycle is executed using RSLogix 500 software. Program upload/download, online edit capability, and communication port functionality (DH+ and DF1) are verified against factory specifications.

Memory Integrity Check: Battery-backed SRAM is tested for data retention. Battery condition is assessed and replaced as standard on all CPU modules prior to shipment.

I/O Channel Test: Analog and digital I/O modules are tested channel-by-channel using calibrated signal sources. Analog modules are verified for accuracy within ±0.1% of full-scale range.

Thermal Burn-In: Selected modules undergo a 24-hour powered burn-in cycle to screen for early-life failures prior to dispatch.
