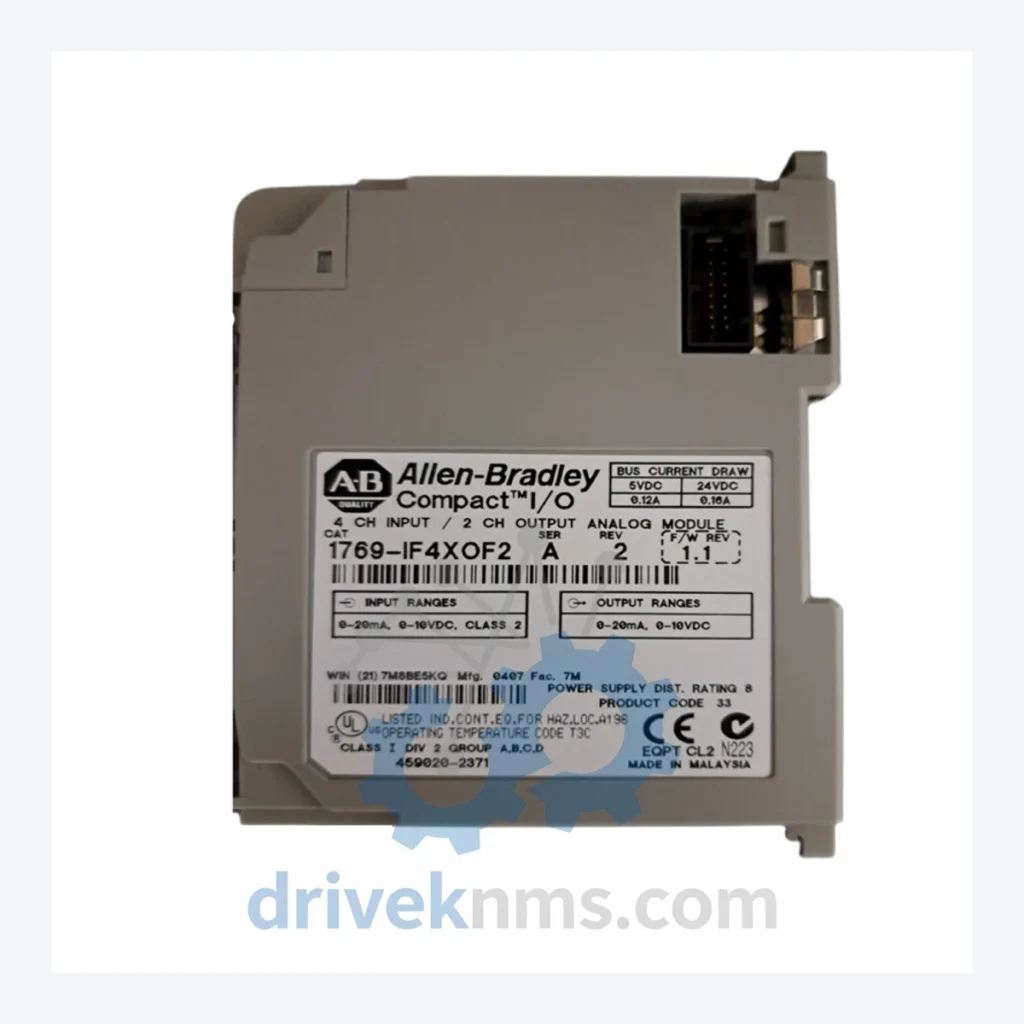

Allen-Bradley 1769-IF4XOF2 Analog Combination Module – Obsolete Compact I/O Spare Part

Technical Dossier

Product Details And Specifications

Allen-Bradley 1769-IF4XOF2 Analog Combination Module – Obsolete Compact I/O Spare Part

RFQ support for obsolete parts: Send the model number, required quantity and destination so DriveKNMS can confirm sourcing options before quotation.

Technical Specifications

Solving the Discontinued Hardware Crisis

The 1769-IF4XOF2 was designed as a space-efficient solution for mixed analog signal handling within the Compact I/O platform. In legacy CompactLogix and MicroLogix 1500 installations — many of which were commissioned in the early 2000s and remain in continuous operation — this module performs functions that cannot be replicated by a simple card swap to a newer series without significant re-engineering of the I/O tree, RSLogix/Studio 5000 program structure, and field wiring terminations.

Rockwell Automation's official end-of-life designation for this module means OEM supply channels are closed. Distributors who previously stocked it have exhausted their inventory. For plant engineers and maintenance managers, the practical reality is this: when the installed spare fails, there is no standard procurement path. The choice becomes either sourcing from the secondary market or committing to a capital project that most maintenance budgets cannot absorb mid-cycle.

How to extend your automation asset life by 5–10 years with critical spare parts:

Condition & Reliability Assurance

Sourcing discontinued industrial hardware from the secondary market carries legitimate risk. DriveKNMS applies a structured 5-step qualification process to every 1769-IF4XOF2 unit before it is offered for sale:

1. Visual and mechanical inspection: Housing integrity, connector pin condition, and PCB surface examination for corrosion, burn marks, or physical damage.
2. Electrolytic capacitor assessment: Aging electrolytic capacitors are the primary failure mode in modules of this vintage. Each unit is evaluated for capacitor bulge, leakage, and ESR deviation from specification.
3. Firmware version verification: The installed firmware revision is documented and disclosed. Customers integrating this module into an existing 1769 rack need to confirm compatibility with their controller firmware to avoid unexpected behavior.
4. Pin and connector integrity check: Backplane connector pins are inspected for oxidation, bending, and contact resistance. Corroded pins are the second most common cause of intermittent analog signal errors in legacy I/O modules.
5. Functional power-on test: Where test infrastructure permits, modules are powered and channel response is verified prior to shipment.

Condition grade and test results are disclosed in writing with each unit. We do not sell modules with undisclosed defects.

Key Features for System Maintenance

• Drop-in replacement: The 1769-IF4XOF2 installs directly into any open 1769 Compact I/O slot without mechanical modification. No new mounting hardware, no rack reconfiguration.
• No reprogramming required: The module's I/O addressing and channel configuration are stored in the controller program, not in the module itself. A replacement unit assumes the same logical identity as the failed module upon rack power-up, provided the controller program is intact.
• Avoids engineering reconstruction costs: Substituting a different module type — even a current-generation Rockwell analog module — requires program edits, I/O tree restructuring, and potentially field wiring changes. The 1769-IF4XOF2 eliminates all of that.
• Preserves process calibration: Analog scaling parameters configured in the controller program remain valid. There is no need to recalibrate field instruments or adjust HMI engineering units after a like-for-like module replacement.

Q: How do I know the unit is genuine and not counterfeit?
A: All units are inspected for OEM labeling consistency, PCB markings, and component authenticity indicators. We source from documented industrial decommissioning projects and authorized secondary market channels. Provenance documentation is available on request.

Q: Can this module be used with Studio 5000 / Logix Designer?
A: The 1769-IF4XOF2 is compatible with RSLogix 500 (MicroLogix 1500 applications) and legacy RSLogix 5000 configurations. Compatibility with current Studio 5000 versions depends on the specific CompactLogix controller revision in use. Confirm your controller catalog number and firmware version before ordering.
