ProSoft Technology MVI56 Series: Comprehensive Module Range and Technical Overview

The ProSoft Technology MVI56 series is a line of communication interface modules engineered for direct installation into Allen-Bradley ControlLogix backplanes. Designed to extend native ControlLogix communication capabilities, MVI56 modules are deployed across critical industrial infrastructure worldwide, including petrochemical refineries, nuclear power generation facilities, offshore platforms, water treatment plants, and continuous-process chemical manufacturing. The series enables ControlLogix PLCs to communicate over legacy and modern industrial protocols without requiring a separate gateway device or external hardware. Each module occupies a single ControlLogix chassis slot and communicates with the processor via the ControlLogix backplane using the MSG instruction or ladder logic data transfer routines. The MVI56 platform has accumulated a substantial installed base across North America, Europe, and Asia-Pacific, making long-term spare parts availability a critical operational concern for maintenance engineers and reliability teams.

The Evolution of MVI56 Architecture

The MVI56 series was introduced in the early 2000s as ProSoft Technology's response to the growing need for multi-protocol communication within the Allen-Bradley ControlLogix platform. Early modules in the series used a dual-port memory architecture, where data was exchanged between the module's internal processor and the ControlLogix CPU via a shared memory block mapped into the controller's tag database. This architecture allowed deterministic data transfer without relying on Ethernet-based messaging, which was critical in environments with strict scan-time requirements.

As industrial Ethernet protocols matured through the 2000s and 2010s, ProSoft expanded the MVI56 catalog to include EtherNet/IP, Modbus TCP, PROFINET, and IEC 60870-5-104 variants. The internal firmware architecture was progressively updated to support higher baud rates, larger data table sizes, and improved diagnostic reporting via the module's configuration port. Compatibility with ControlLogix firmware versions has been a persistent engineering consideration: certain MVI56 modules require specific RSLogix 5000 or Studio 5000 project file versions, and backplane communication behavior can differ between ControlLogix L6x and L7x/L8x processor families.

By the mid-2010s, ProSoft began transitioning newer protocol implementations to the PLX50 and MVI56E series, which introduced web-based configuration interfaces and enhanced diagnostics. However, the original MVI56 form factor remains in active service at thousands of installed sites, and replacement modules continue to be sourced through authorized distributors and specialist spare parts suppliers. For facilities operating legacy ControlLogix systems with no near-term migration budget, maintaining a stock of MVI56 spares is a standard reliability engineering practice.

MVI56 Full Catalog & Functionalities (SKU List)

The following SKUs represent the core MVI56 module range. Each module occupies one ControlLogix chassis slot and is configured via ProSoft Configuration Builder (PCB) software or ladder logic data files.

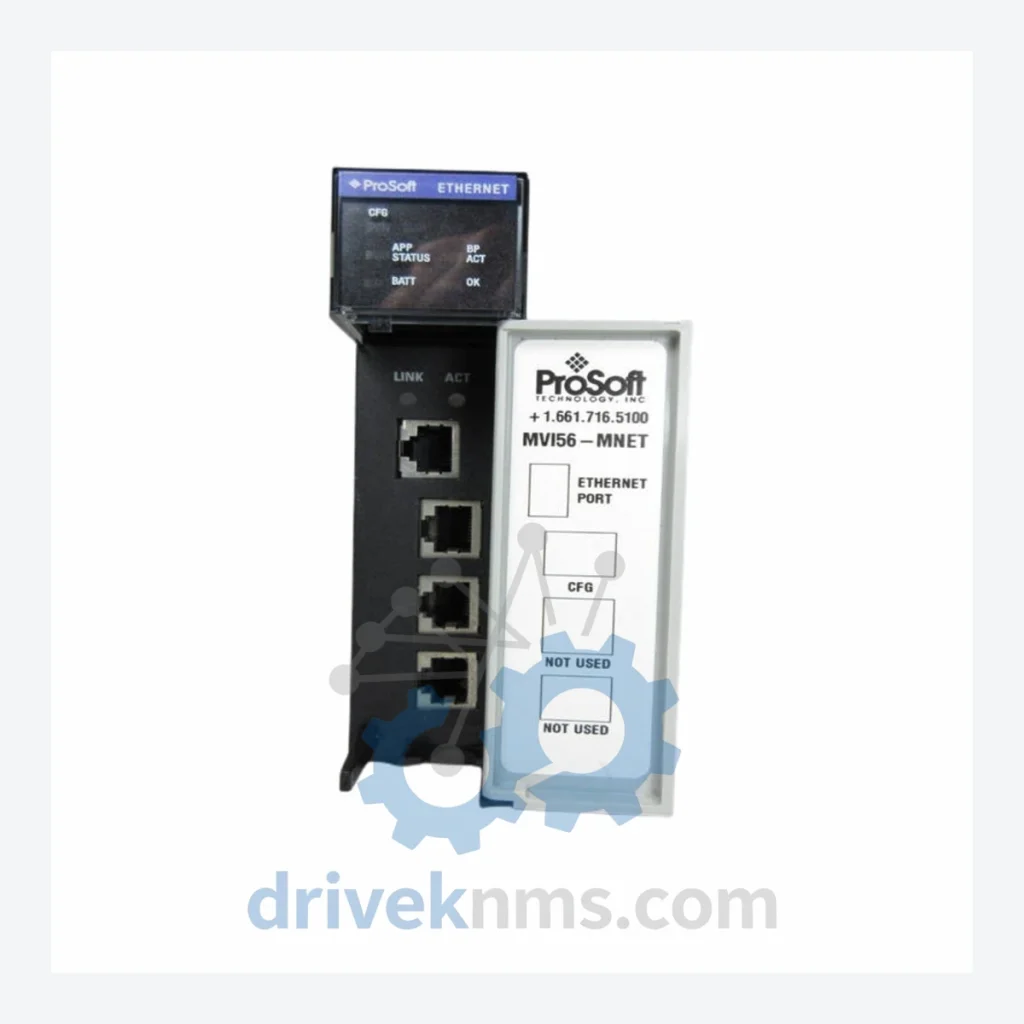

MVI56-MNET: Modbus TCP/IP Client/Server interface module for EtherNet/IP-connected ControlLogix systems; supports up to 100 client commands and 100 server connections.
MVI56-MCM: Modbus RTU/ASCII Master/Slave module; dual RS-232/RS-485 serial ports; supports up to 100 master command list entries.
MVI56-PDPMV1: PROFIBUS DP-V1 Master module; supports up to 125 slave devices; GSD file-based configuration; used extensively in European process industries.
MVI56-PDPS: PROFIBUS DP Slave module; presents the ControlLogix controller as a PROFIBUS DP slave device to a third-party master.
MVI56-DFNT: DeviceNet Scanner (Master) module; supports up to 64 DeviceNet slave nodes; explicit and I/O messaging.
MVI56-DFCM: DeviceNet Client/Master module; alternative DeviceNet implementation with enhanced diagnostic data tables.
MVI56-HART: HART Master module; supports HART pass-through communication for field instrument configuration and diagnostics over 4–20 mA loops.
MVI56-104S: IEC 60870-5-104 Slave (Server) module; used in electrical substation automation and SCADA integration for power utilities.
MVI56-104M: IEC 60870-5-104 Master (Client) module; initiates IEC 104 connections to remote terminal units (RTUs) and IEDs.
MVI56-DNP: DNP3 Master/Slave module; supports DNP3 serial and TCP/IP variants; standard in North American utility SCADA systems.
MVI56-MBTCP: Modbus TCP Client/Server module; alternative Modbus TCP implementation with expanded command list capacity versus MVI56-MNET.
MVI56-GSC: Generic Serial Communication module; configurable ASCII/binary serial protocol; used for custom instrument integration.
MVI56-PNIO: PROFINET IO Controller module; supports PROFINET IO device integration within ControlLogix-based control systems.
MVI56-CCLINK: CC-Link Master/Local Station module; used in Japanese and Asian automotive and manufacturing installations.
MVI56-INTERBUS: INTERBUS Master module; supports INTERBUS fieldbus networks common in European automotive assembly lines.
MVI56-LNG: Lonworks FTT-10 network interface module; used in building automation and energy management system integration.
MVI56-ADMNET: Advanced Modbus TCP/IP module with enhanced multi-session client support and extended diagnostic registers.

Sourcing Hard-to-Find & Obsolete MVI56 Parts

Several MVI56 variants have reached end-of-sale or end-of-life status as ProSoft Technology has migrated protocol support to the MVI56E and PLX50 platforms. For facilities that cannot execute a control system migration within current capital budgets, sourcing replacement MVI56 modules from the secondary market is the standard maintenance strategy.

DriveKNMS maintains a dedicated inventory of MVI56 series modules, including discontinued variants. All units sourced through DriveKNMS are subject to pre-shipment functional verification. For obsolete models where new stock is unavailable, DriveKNMS can source tested surplus units with documented operational history. Customers requiring long-term supply agreements for MVI56 spares to support multi-year maintenance contracts are encouraged to contact the sales team directly to discuss volume pricing and reservation arrangements.

DriveKNMS also supports cross-reference identification: if your site documentation references a legacy part number or a superseded revision, the technical team can identify the correct current or equivalent replacement and confirm backplane and firmware compatibility with your installed ControlLogix processor revision.

Quality Control for the MVI56 Range

MVI56 modules present specific quality verification challenges due to their backplane-dependent communication architecture. Standard power-on bench testing is insufficient to confirm full module functionality; each unit must be validated within a live ControlLogix chassis environment.

DriveKNMS quality control procedures for MVI56 modules include: installation into a ControlLogix test chassis with a compatible L6x or L7x processor; loading of the standard ProSoft Configuration Builder configuration file for the specific protocol variant; verification of backplane communication status via RSLogix 5000 or Studio 5000 controller tag monitoring; protocol-layer functional test using a hardware simulator or live field device (e.g., Modbus TCP client/server loopback test for MVI56-MNET; PROFIBUS DP slave simulator for MVI56-PDPMV1); inspection of the module's configuration port RS-232 interface for diagnostic output integrity; and firmware version documentation against ProSoft Technology's published compatibility matrix.

Modules that do not pass all backplane communication and protocol-layer tests are quarantined and not offered for sale. Test records are retained and available to customers upon request for critical infrastructure procurement processes.
