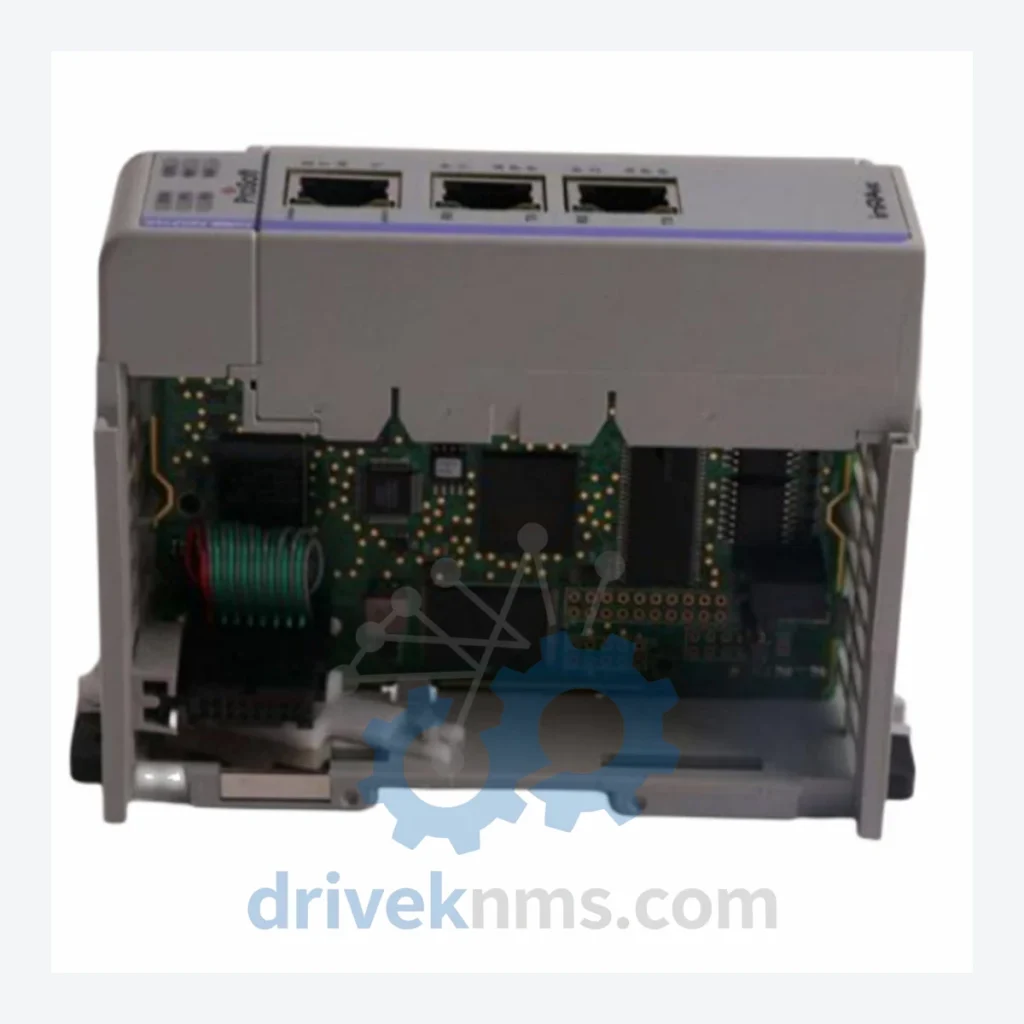

ProSoft Technology MVI69E Modules MVI69E-MBS

Technical Dossier

Product Details And Specifications

ProSoft Technology MVI69E Series Technical Notes

The ProSoft Technology MVI69E series is a family of enhanced communication modules designed for integration with Rockwell Automation CompactLogix and MicroLogix 1500 programmable logic controllers. These modules are deployed across global heavy industry sectors including petrochemical refining, nuclear power generation, offshore oil and gas platforms, pulp and paper manufacturing, and water treatment infrastructure. The MVI69E platform occupies a critical position in distributed control system (DCS) and SCADA architectures where legacy protocol bridging, multi-network communication, and deterministic data exchange are non-negotiable operational requirements. Installed base counts in the tens of thousands across North America, Europe, and Asia-Pacific, making the MVI69E one of the most widely referenced CompactLogix communication module families in industrial automation procurement.

The Evolution of MVI69E Architecture

The MVI69E series is the direct successor to the original MVI69 platform. The transition from MVI69 to MVI69E introduced the "Enhanced" hardware revision, characterized by a redesigned backplane interface, expanded onboard memory buffers, improved diagnostic LED arrays, and firmware architecture supporting simultaneous multi-port operation. Early MVI69 modules were limited to single-protocol, single-port configurations. The MVI69E generation introduced dual-port and multi-port variants, enabling a single module slot to bridge two independent industrial networks simultaneously — a critical capability for migration projects where legacy Modbus RTU networks must coexist with modern Ethernet/IP or PROFINET infrastructure.

Compatibility considerations are significant for maintenance engineers. MVI69E modules are physically and electrically compatible with the 1769 CompactLogix backplane but require specific RSLogix 5000 / Studio 5000 Add-On Instructions (AOI) and configuration files. Firmware versions must be matched to the controller firmware revision. Modules from the original MVI69 generation cannot be directly substituted with MVI69E variants without AOI updates and ladder logic revision. For systems running legacy MVI69 firmware, ProSoft's lifecycle documentation classifies the original MVI69 as End-of-Life (EOL), with MVI69E designated as the long-term supported replacement platform.

MVI69E Full Catalog & Functionalities (SKU List)

The following SKUs represent the verified MVI69E series module catalog, classified by communication protocol and function:

Modbus Protocol Modules

• MVI69E-MBS: Modbus Serial Master/Slave module; supports RTU and ASCII modes on RS-232/RS-485; dual-port capable.
• MVI69E-MBT: Modbus TCP/IP client/server module; Ethernet-based Modbus bridging for CompactLogix.
• MVI69E-MBTCP: Enhanced Modbus TCP module with expanded connection table and simultaneous client/server operation.

PROFINET & Industrial Ethernet Modules

• MVI69E-MNET: Modbus TCP/IP to CompactLogix interface; supports up to 100 client connections.
• MVI69E-MNETC: Modbus TCP/IP client-only module; optimized for polling remote Modbus TCP devices.
• MVI69E-MNETCR: Modbus TCP/IP client with redundancy support; designed for fault-tolerant network topologies.
• MVI69E-GEC: Generic Ethernet Client module; supports custom TCP/UDP socket communication for non-standard Ethernet protocols.

Serial & Legacy Protocol Modules

• MVI69E-GSC: Generic Serial Communication module; configurable for ASCII, DF1, and custom serial protocols.
• MVI69E-DFCM: DF1 Communication module; interfaces CompactLogix with legacy Allen-Bradley DF1 serial networks.
• MVI69E-AFC: American Flow Computer protocol module; used in oil and gas flow measurement and custody transfer applications.
• MVI69E-SLX: SL Series communication module; supports serial link protocol bridging for legacy SL-series devices.

Power, Energy & Specialty Protocol Modules

• MVI69E-61850C: IEC 61850 Client module; enables CompactLogix integration with IEC 61850-compliant intelligent electronic devices (IEDs) in substation automation.
• MVI69E-LDM: Logix Data Manager module; provides structured data buffering and pass-through between CompactLogix and external SCADA hosts.
• MVI69E-HART: HART protocol master module; reads HART device variables from field instruments over 4-20mA loops.
• MVI69E-RSSQ: RSS Queue module; manages high-volume sequential data transfer between CompactLogix and upstream data historians.
