RORZE RD Series: Comprehensive Module Range and Technical Overview

The RORZE RD Series motor driver modules are purpose-engineered motion control components deployed across semiconductor fabrication equipment, flat panel display (FPD) manufacturing lines, and precision automation systems. RORZE Corporation, headquartered in Fukuyama, Japan, has established the RD Series as a standard-bearer for stepper and servo motor drive integration within wafer-handling robots, EFEM (Equipment Front End Module) systems, and cleanroom-grade transport platforms. Installed base spans facilities operated by major semiconductor OEMs across Japan, South Korea, Taiwan, and China. The RD Series occupies a critical position in the maintenance supply chain for equipment generations spanning the late 1990s through the 2010s, with many units still in active production service.

The Evolution of RD Series Architecture

The RORZE RD Series underwent several architectural generations tied to the evolution of RORZE's robot controller platforms (RC Series) and the broader shift in semiconductor automation from open-loop stepper control to closed-loop servo feedback. Early RD modules (RD-011, RD-013 variants) were designed around dedicated stepper driver ASICs with fixed microstep resolution, interfacing directly with RORZE's proprietary backplane bus. Mid-generation modules introduced configurable current profiles and improved thermal management to support higher-torque axis configurations in multi-arm EFEM robots. Later variants in the RD-021 and RD-022 sub-families incorporated enhanced fault diagnostics, encoder feedback compatibility, and communication interfaces aligned with RORZE RC-7 and RC-9 controller generations. Compatibility between RD sub-generations is constrained by backplane connector pinout revisions and firmware handshake protocols — cross-generation substitution requires verification against the specific robot controller revision. As RORZE has transitioned newer platforms to integrated servo amplifier architectures, the standalone RD Series has entered a mature/end-of-life phase, making long-term spare parts availability a primary operational concern for maintenance teams.

RD Series Full Catalog & Functionalities (SKU List)

The following represents the documented RD Series module range. SKUs are classified by function. Verify compatibility with your specific RORZE robot controller revision before ordering.

Motor Driver Modules — Stepper & Servo Axis Control

• RD-011: 2-phase stepper driver, early-generation backplane mount, fixed microstep
• RD-013: 2-phase stepper driver, revised current rating, compatible with RC-3 controller
• RD-013A: RD-013 variant with enhanced overcurrent protection circuit
• RD-015: Stepper driver module, higher current output for Z-axis and heavy-load configurations
• RD-021: Standard stepper driver, RC-5/RC-7 platform, configurable microstep resolution
• RD-021M: RD-021 with modified connector layout for specific robot arm configurations

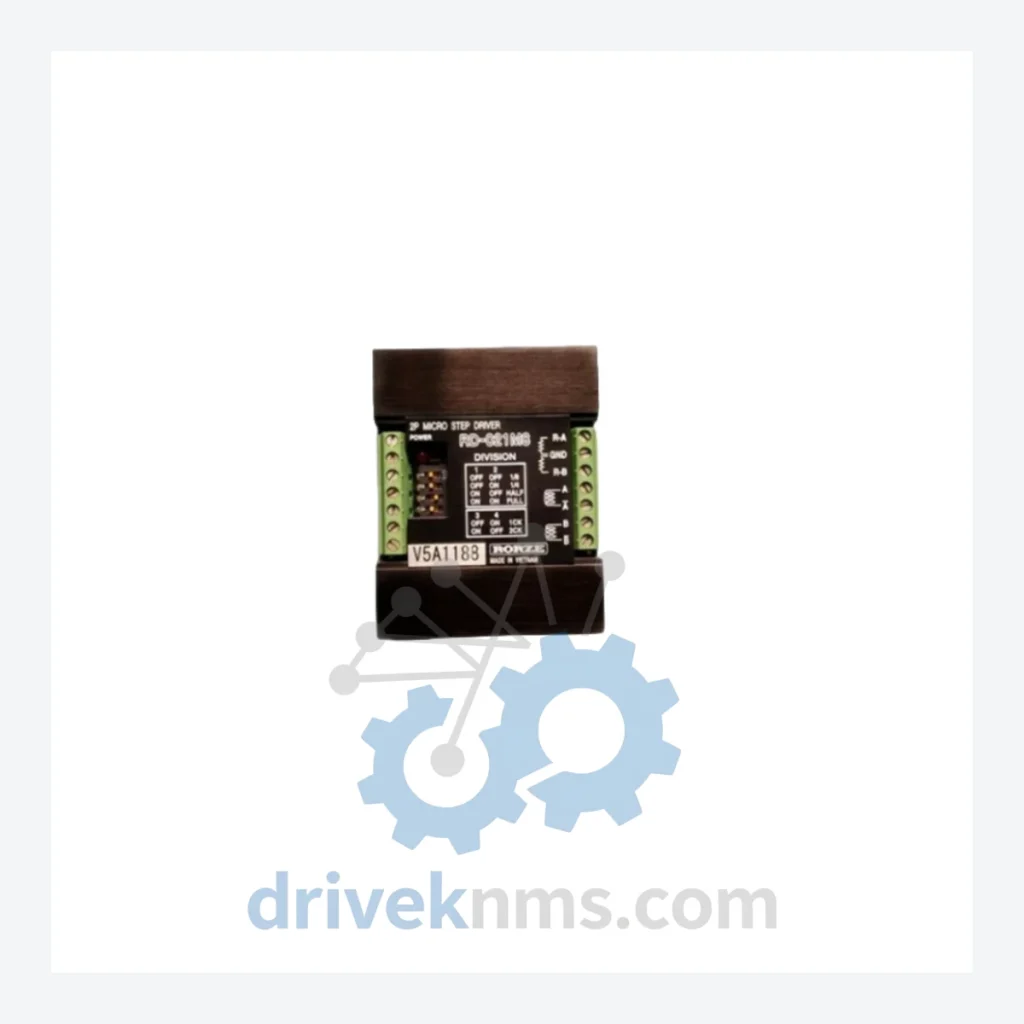

• RD-021M8: RD-021M variant, 8-axis-compatible backplane addressing, RC-7/RC-9 compatible
• RD-021S: RD-021 with integrated encoder signal conditioning for semi-closed-loop operation
• RD-022: Next-generation stepper driver, dual-axis control on single module, reduced slot count
• RD-022A: RD-022 with revised firmware for RC-9 controller compatibility
• RD-023: High-current stepper driver for heavy-payload robot axes
• RD-031: AC servo driver module, encoder feedback, RC-9 and later platforms
• RD-031A: RD-031 with expanded fault code output and diagnostic LED array
• RD-033: Compact servo driver, reduced form factor for space-constrained controller chassis
• RD-041: Multi-axis servo driver, integrated motion profile generation, RC-10 platform
• RD-051: High-voltage servo driver module for extended-reach robot configurations

Sourcing Hard-to-Find & Obsolete RD Series Parts

DriveKNMS maintains a dedicated inventory program for RORZE RD Series modules that have reached end-of-life or been discontinued by the OEM. For semiconductor and FPD facilities operating legacy RORZE robot platforms, unplanned downtime caused by unavailable spare drivers represents a significant production risk. DriveKNMS addresses this through three supply channels: new-old-stock (NOS) units sourced from decommissioned equipment, professionally refurbished modules tested to original performance specifications, and cross-reference substitution advisory where a compatible replacement exists within the RD family. All sourced units are catalogued with traceability records including origin equipment type, decommission date, and pre-sale test results. For models such as RD-011, RD-013, and RD-015 — which have been out of OEM production for over a decade — DriveKNMS's inventory represents one of the few remaining reliable supply sources globally. Customers operating under long-term service agreements (LTSA) for semiconductor tools are encouraged to establish buffer stock arrangements to mitigate future availability risk.

Quality Control for the RD Series Range

RORZE RD Series modules interface with the robot controller via a proprietary backplane bus that carries both power and communication signals. Standard bench testing is insufficient to validate full module functionality. DriveKNMS applies a dedicated test protocol for RD Series units that includes: static electrical verification (insulation resistance, supply rail integrity, output stage continuity), dynamic load testing using a matched stepper or servo motor at rated current, backplane communication simulation using a RORZE-compatible controller emulator to verify command reception and fault reporting, thermal cycling to confirm stable operation across the module's rated temperature range, and encoder signal integrity verification for RD-021S, RD-031, and RD-041 variants. Modules that do not pass all stages are quarantined and not offered for sale. Test records are retained and available to customers on request.

For RD Series availability, cross-reference requests, or bulk spare parts inquiries:

• Email: [email protected]
• WhatsApp: +86 18359293191
• Web: driveknms.com
