RORZE RD Series Microstepping Motor Drivers

Technical Dossier

Product Details And Specifications

RORZE RD Series: Comprehensive Module Range and Technical Overview

The RORZE RD Series microstepping motor drivers represent a core motion control product line deployed extensively across semiconductor fabrication equipment, flat panel display (FPD) manufacturing lines, precision laboratory automation, and industrial robotics. RORZE Corporation, headquartered in Fukuyama, Japan, engineered the RD Series to deliver high-resolution step subdivision, low-vibration operation, and compact DIN-rail or panel-mount form factors suited to cleanroom and precision-critical environments. These drivers are found in wafer handling systems, gantry positioners, and multi-axis pick-and-place machines across Asia, North America, and Europe. The RD Series occupies a critical position in facilities where stepper motor control must be deterministic, thermally stable, and compatible with RORZE's broader motion controller ecosystem (RC, RR, and RM series controllers).

The Evolution of RD Series Architecture

The RORZE RD Series was developed as a standalone driver complement to RORZE's integrated motion controller platforms. Early-generation RD drivers provided fixed microstep resolutions (half-step, quarter-step) with analog current reference inputs. Subsequent revisions introduced programmable microstep resolution via DIP switch or serial interface, expanding subdivision from 1/2 to 1/128 step. The RD-323MS, as a representative mid-range model, supports microstepping with selectable resolution and is designed for bipolar 2-phase stepper motors in the 1–3A phase current range.

As RORZE's controller architecture matured, RD Series drivers were designed to interface directly with RORZE RC-series and RR-series motion controllers via dedicated step/direction signal lines, enabling synchronized multi-axis coordination. Later variants added features including automatic current reduction (ACR) for thermal management, optically isolated I/O for noise immunity in high-EMI environments, and protection circuits for overcurrent, overvoltage, and overtemperature conditions. Many RD Series models are now in the mature-to-end-of-life phase of their product lifecycle. RORZE has transitioned newer machine designs toward integrated servo-stepper hybrid platforms, but the installed base of RD Series drivers in legacy semiconductor and FPD equipment remains substantial, creating sustained demand for replacement and spare units.

RD Series Full Catalog & Functionalities (SKU List)

The following SKUs represent confirmed models within the RORZE RD Series microstepping motor driver family, organized by current rating and feature set:

RD-023MS: 2-phase bipolar microstepping driver, 0.5A phase current, compact low-power variant for light-load axes.
RD-053MS: 2-phase bipolar driver, 0.5–1.5A phase current range, DIP-switch microstep selection, panel-mount housing.
RD-123MS: 2-phase bipolar microstepping driver, 1A rated phase current, standard resolution selection, optoisolated step/dir input.
RD-153MS: 2-phase bipolar driver, 1.5A phase current, enhanced thermal dissipation, suitable for continuous-duty positioning axes.
RD-203MS: 2-phase bipolar microstepping driver, 2A phase current, mid-range current capacity, ACR function included.
RD-253MS: 2-phase bipolar driver, 2.5A phase current, selectable microstep resolution up to 1/64, overcurrent protection.

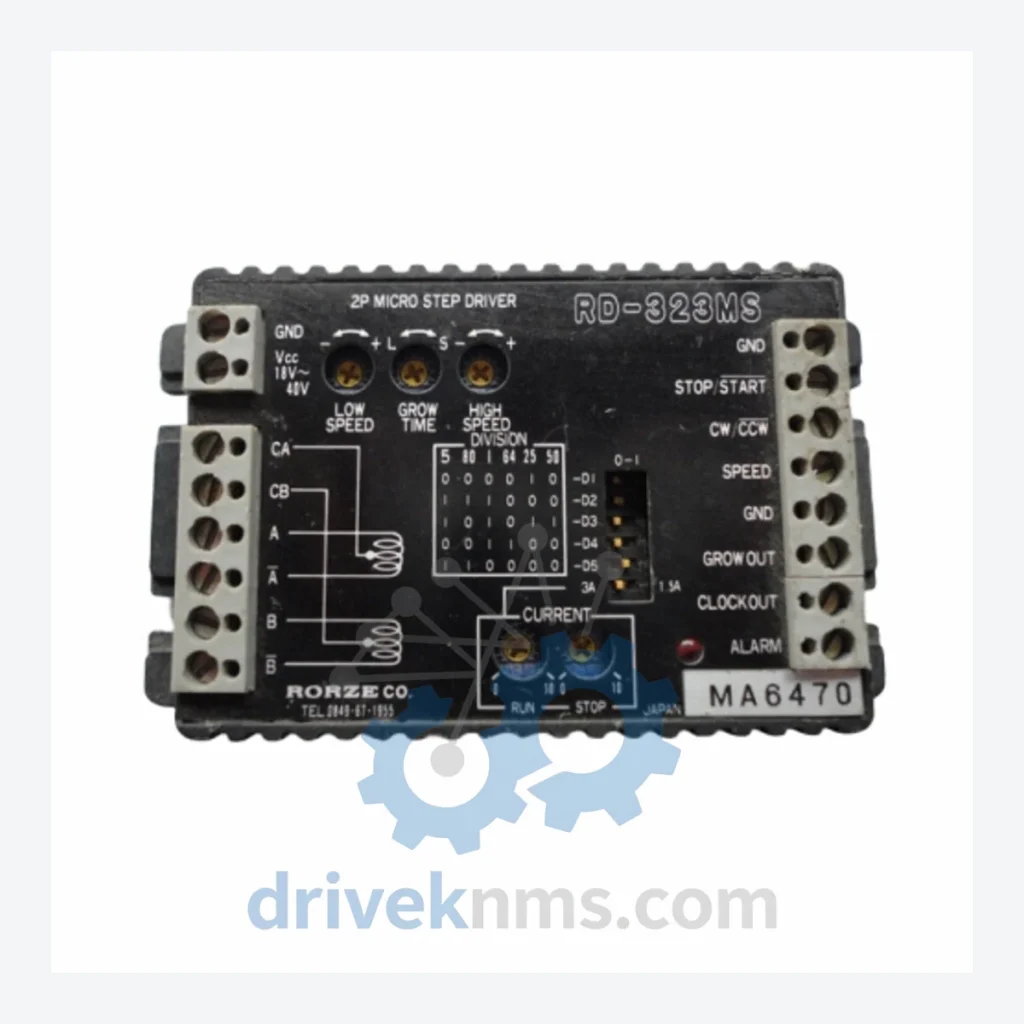

RD-323MS: 2-phase bipolar microstepping driver, 3A phase current, full microstep subdivision, optoisolated I/O, ACR, overtemperature shutdown — primary reference SKU for this listing.
RD-353MS: 2-phase bipolar driver, 3.5A phase current, high-torque stepper motor compatibility, DIN-rail mountable.
RD-503MS: 2-phase bipolar microstepping driver, 5A phase current, high-current variant for large-frame stepper motors in heavy-load automation.
RD-023S: Single-axis stepper driver, fixed half/full step, 0.5A, legacy variant without microstepping subdivision.
RD-053S: Single-axis stepper driver, 1A phase current, fixed step resolution, early-generation RD platform.
RD-123S: 2-phase driver, 1A, fixed microstep, predecessor to the MS-suffix microstepping line.
RD-203S: 2-phase driver, 2A, fixed step resolution, legacy model — replacement recommended with RD-203MS.
RD-323S: 2-phase driver, 3A, fixed step resolution, direct legacy predecessor to the RD-323MS.
RD-503S: 2-phase driver, 5A, fixed step resolution, high-current legacy variant for large stepper motor frames.
RD-D23MS: Differential input variant of the RD-023MS, designed for long-cable or high-noise signal environments.
RD-D323MS: Differential input variant of the RD-323MS, 3A phase current, line-driver compatible step/dir input for noise-critical installations.

Sourcing Hard-to-Find & Obsolete RD Series Parts

DriveKNMS maintains an active procurement network for RORZE RD Series drivers, including models that have been discontinued by the original manufacturer. The RD-023S, RD-053S, RD-123S, RD-203S, RD-323S, and RD-503S fixed-step variants are no longer in standard production. DriveKNMS sources these units through verified secondary market channels, decommissioned equipment lots, and authorized distributor overstock. All units are inspected prior to dispatch. For facilities operating legacy RORZE-based semiconductor or FPD equipment where controller replacement is not feasible, DriveKNMS provides lifecycle extension support: sourcing replacement RD Series drivers, advising on compatible substitute models within the MS-suffix line, and supplying matched pairs or full-axis sets for multi-axis systems. Long-term maintenance agreements and priority allocation for critical spare stock are available on request.

Quality Control for the RD Series Range

Each RORZE RD Series driver processed by DriveKNMS undergoes a structured functional verification protocol prior to shipment. Testing procedures include: input signal continuity verification across step, direction, and enable lines; phase current output measurement at rated load for both motor phases; microstep resolution confirmation via encoder-referenced step count test; ACR function verification under thermal load cycling; optoisolator integrity check on all I/O channels; and protection circuit activation test for overcurrent and overtemperature thresholds. Units exhibiting parameter drift, intermittent phase output, or degraded optoisolator response are quarantined and not dispatched. Refurbished units are clearly identified and carry a separate inspection certificate. This protocol is specifically adapted to the RD Series' dual H-bridge output stage and its sensitivity to phase current imbalance, which is a known failure mode in aged units operating in high-cycle-rate applications.
