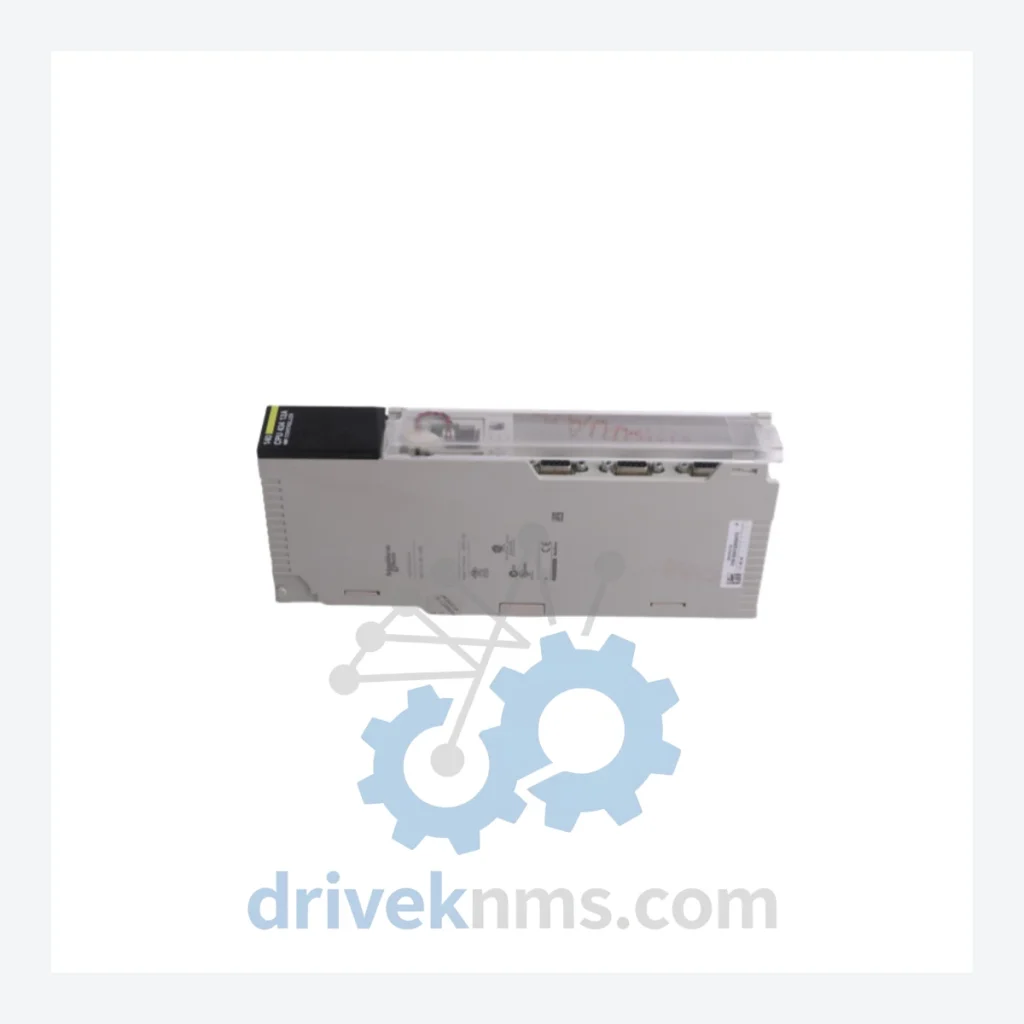

Schneider Electric Modicon Quantum 140CPU43412A Modules

Technical Dossier

Product Details And Specifications

Schneider Electric Modicon Quantum Series: Comprehensive Module Range and Technical Overview

The Schneider Electric Modicon Quantum platform is a high-availability programmable automation controller (PAC) system deployed across critical global infrastructure including petrochemical refineries, nuclear power generation facilities, offshore oil and gas platforms, and large-scale chemical processing plants. The Quantum architecture supports hot-standby redundancy (HSB), distributed I/O via RIO drop topology, and deterministic Modbus Plus / Ethernet communication — making it the reference platform for Safety Instrumented Systems (SIS) and continuous process control in heavy industry. Installed base spans North America, Europe, the Middle East, and Asia-Pacific, with lifecycle support requirements extending well beyond the platform's commercial end-of-sale date.

The Evolution of Modicon Quantum Architecture

The Modicon Quantum platform was introduced by Modicon (later acquired by Schneider Electric) in the early 1990s as a successor to the Modicon 984 series. The architecture is built around a proprietary backplane bus supporting up to 16 slots per local rack, with the CPU occupying slot 1. Early CPU generations — including the 140CPU11302 and 140CPU21304 — used Modbus Plus as the primary peer-to-peer network. The mid-generation transition introduced Ethernet-capable CPUs such as the 140CPU43412A and 140CPU65150, integrating dual Ethernet ports and expanded memory maps. Later variants added Unity Pro programming environment compatibility, replacing the legacy Concept IEC 61131-3 toolset. Compatibility between generations requires careful attention to backplane revision, firmware version, and I/O map addressing — particularly when replacing early-generation CPUs with later Ethernet-enabled models. The platform entered its mature/end-of-life phase commercially, with Schneider Electric directing new projects toward the Modicon M580 (ePAC) platform. However, the Quantum installed base remains active across thousands of facilities, creating sustained demand for long-term maintenance spares and lifecycle extension support.

Modicon Quantum Full Catalog & Functionalities (SKU List)

CPU Modules

• 140CPU11302: Entry-level CPU, 512KB user memory, Modbus Plus port, Concept programming.
• 140CPU21304: Mid-range CPU, 1MB memory, dual Modbus Plus, enhanced diagnostics.
• 140CPU31110: Standard CPU, 2MB memory, single Ethernet port, Unity Pro compatible.
• 140CPU43412A: High-performance CPU, 4MB memory, dual Ethernet + Modbus Plus, Unity Pro / Concept dual-compatible.
• 140CPU65150: Advanced CPU, 7MB memory, dual Ethernet, high-speed task execution, large I/O map.
• 140CPU65160: Extended CPU, 7MB memory, enhanced cybersecurity features, dual Ethernet.

Discrete Input Modules (DI)

• 140DAI34000: 32-channel 24VDC discrete input, sink/source compatible.
• 140DAI54000: 16-channel 115VAC discrete input, isolated inputs.
• 140DAI74000: 32-channel 24VDC discrete input, high-density, LED status per channel.

Discrete Output Modules (DO)

• 140DAO84000: 32-channel 24VDC discrete output, 0.5A per channel, source type.
• 140DAO84010: 32-channel 24VDC discrete output, sink type, short-circuit protection.
• 140DDO35300: 16-channel relay output, 2A per channel, Form C contacts.

Analog Input Modules (AI)

• 140ACI04000: 4-channel analog current input, 4–20mA, 12-bit resolution.
• 140AVI03000: 4-channel analog voltage input, ±10V / 0–10V selectable.
• 140ARI03010: 4-channel RTD/resistance input, PT100/PT1000 compatible.

Analog Output Modules (AO)

• 140ACO02000: 2-channel analog current output, 4–20mA, 12-bit resolution.

Communication & Network Adapters

• 140NOE77100: Ethernet TCP/IP network option module, 10/100 Mbps, web server.
• 140NOM21200: Modbus Plus network option module, dual port, peer-to-peer messaging.
• 140CRP93200: RIO head-end adapter, controls up to 31 RIO drops via coaxial cable.
• 140CRA93200: RIO drop adapter, remote I/O rack interface module.

Power Supply Modules

• 140CPS11420: 115/230VAC power supply, 3.0A at 5VDC, standard rack.
• 140CPS21400: 24VDC input power supply, 3.0A at 5VDC, for DC-powered panels.
• 140CPS41400: Redundant power supply module, hot-swap capable, 5A at 5VDC.

Sourcing Hard-to-Find & Obsolete Modicon Quantum Parts

Schneider Electric has formally transitioned the Modicon Quantum platform to end-of-commercialization status, with the M580 ePAC designated as the migration target. However, the engineering and financial cost of a full platform migration — including I/O rewiring, software conversion, and process validation — means the majority of Quantum installations will remain operational for 10–20 additional years. DriveKNMS maintains a dedicated inventory of Quantum spare parts, including discontinued CPU modules, legacy RIO adapters, and obsolete power supply variants. All units are sourced through verified industrial surplus channels and subjected to full functional testing prior to dispatch. For critical spares with long lead times — including the 140CPU43412A, 140CPU65150, and 140CRP93200 — DriveKNMS provides advance procurement and bonded stock services to support planned maintenance shutdowns and emergency breakdowns.

Quality Control for the Modicon Quantum Range

Quantum modules present specific test challenges due to their proprietary backplane bus protocol and multi-port communication architecture. DriveKNMS applies a structured test protocol for each module category. CPU modules are bench-tested using a live Quantum rack with verified backplane, confirming boot sequence, memory integrity, Ethernet port link establishment, and Modbus Plus token passing. I/O modules are tested under load using calibrated signal sources and measurement instruments, verifying channel-level accuracy and LED diagnostics. Communication modules — including NOE Ethernet cards and NOM Modbus Plus adapters — are tested for full network participation in a live Quantum network segment. Power supply modules are tested under rated load with output voltage and ripple measurements recorded. All test results are documented and available upon request for critical spare applications.
