Schneider ATV61HD75N4 Variable Speed Drive – Obsolete Altivar 61 Spare Part

Technical Dossier

Product Details And Specifications

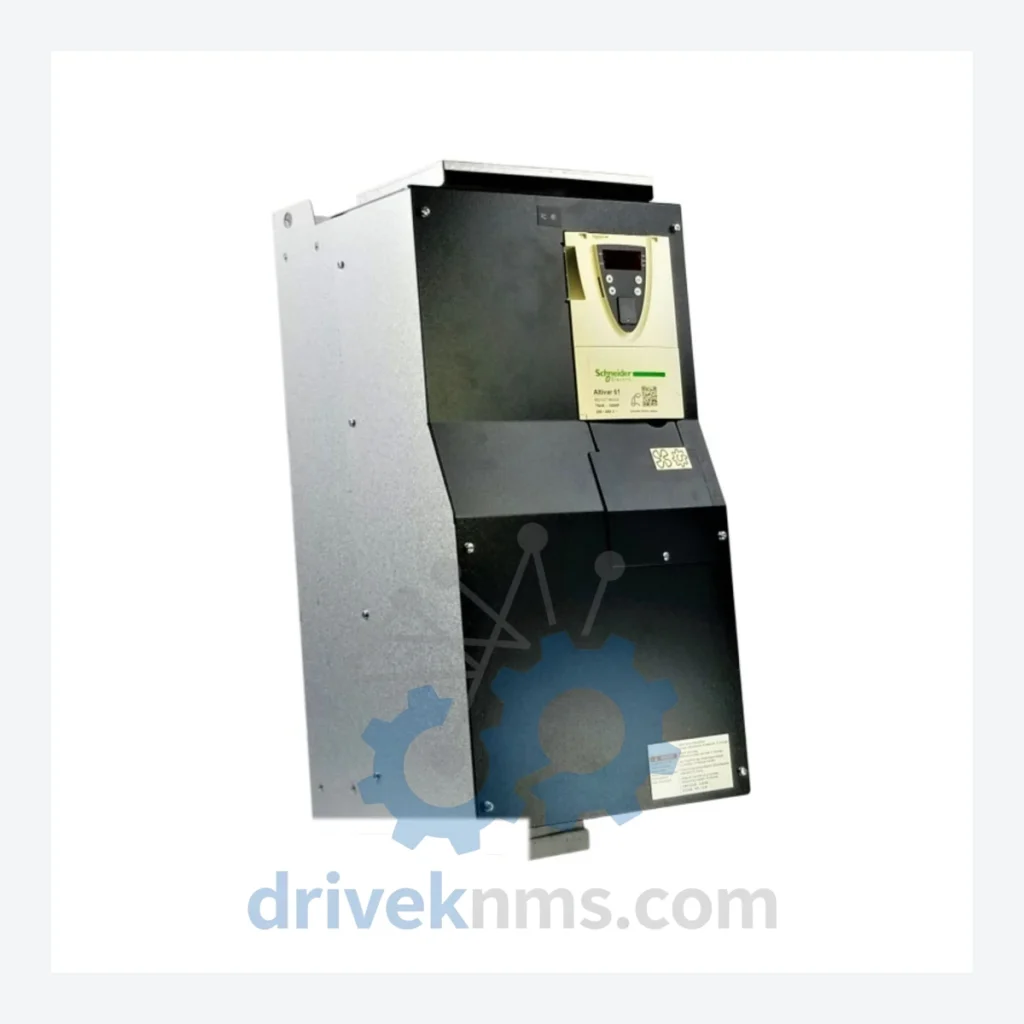

Schneider ATV61HD75N4 Variable Speed Drive – Obsolete Altivar 61 Spare Part

DriveKNMS reviews sourcing options for this model through RFQ handling before quotation.

RFQ support for obsolete parts: Send the model number, required quantity and destination so DriveKNMS can confirm sourcing options before quotation.

Technical Specifications

Note: Electrical parameters listed above are based on published Schneider Electric documentation for the ATV61HD75N4. Any parameters not listed here have been intentionally omitted to avoid inaccuracy. Always verify against your original installation documentation before commissioning.

Solving the Discontinued Hardware Crisis

The Altivar 61 series was Schneider Electric's workhorse drive platform for heavy industrial applications throughout the 2000s and 2010s. It became deeply embedded in process industries — water treatment, HVAC, compressors, conveyors, and pump stations — precisely because of its reliability and the depth of its application-specific firmware. That same reliability is now the source of a maintenance dilemma: these drives are still running, but the supply chain that supported them has dried up.

When an ATV61HD75N4 fails in a facility running a Modicon M340 or a legacy Telemecanique TSX-based control architecture, the engineering team faces a choice with no clean options. Migrating to a current Altivar 630 or 680 is not a direct substitution — parameter sets differ, communication card form factors have changed, and the motor control algorithms behave differently under load. A rushed migration introduces commissioning risk that a planned spare-parts strategy eliminates entirely.

For plant managers facing capital budget pressure, the argument for extending the life of an ATV61-based system by 5–10 years through strategic spare parts procurement is straightforward: the total cost of maintaining a critical spare inventory is a fraction of the cost of a forced, unplanned system upgrade. A structured approach — identifying the three to five highest-criticality drives on a line, securing verified spare units, and establishing a documented swap procedure — converts a reactive maintenance liability into a managed, predictable cost.

Condition & Reliability Assurance

Q: How are RFQ terms confirmed?
A: Quantity, required condition, documentation needs, destination and sourcing route are confirmed during RFQ review before quotation.

1. Electrolytic Capacitor Assessment: DC bus capacitors are the primary aging component in any variable speed drive. Each unit undergoes capacitor ESR (Equivalent Series Resistance) measurement and visual inspection for bulging, leakage, or electrolyte residue. Units with degraded capacitors are either reconditioned with verified replacement capacitors or rejected from inventory.
2. Firmware Version Verification: The ATV61 platform had multiple firmware revisions addressing specific application behaviors. We document and disclose the firmware version present on each unit so your engineering team can assess compatibility with existing parameter files before installation.
3. Terminal and Pin Corrosion Inspection: Control terminals, power terminals, and communication port pins are inspected under magnification for oxidation, corrosion, or mechanical damage. Affected terminals are cleaned and treated; units with structural terminal damage are not offered for sale.
4. Power-On Functional Test: Each unit is powered up and tested for basic drive functionality — display operation, keypad response, and fault-free initialization — prior to packaging.
5. Packaging and ESD Protection: Units are packaged in anti-static materials with desiccant to prevent moisture ingress during storage and transit.

Key Features for System Maintenance

• Drop-in replacement: The ATV61HD75N4 is a direct physical and electrical replacement for any existing ATV61HD75N4 installation. No cabinet modifications, no wiring changes.
• No reprogramming required: Existing parameter files (.par) stored on the original drive or in your SCADA/PLC system can be transferred directly to the replacement unit via the SoMove software tool or the drive's integrated keypad. Your process settings, ramp times, and protection thresholds are preserved.
• Communication continuity: If your installation uses an optional communication card (Profibus, CANopen, DeviceNet), the card from the failed unit can be transferred to the replacement drive, maintaining your existing network configuration without reconfiguration at the PLC level.
• Avoids engineering reconstruction costs: A forced migration to a different drive platform requires engineering hours for parameter mapping, updated wiring diagrams, revised safety documentation, and recommissioning sign-off. A like-for-like ATV61HD75N4 replacement eliminates all of these costs.
• Extends asset life on a defined timeline: Securing verified spare units now allows maintenance planning teams to set a controlled end-of-life date for the ATV61-based system — on their schedule, not in response to an emergency.
