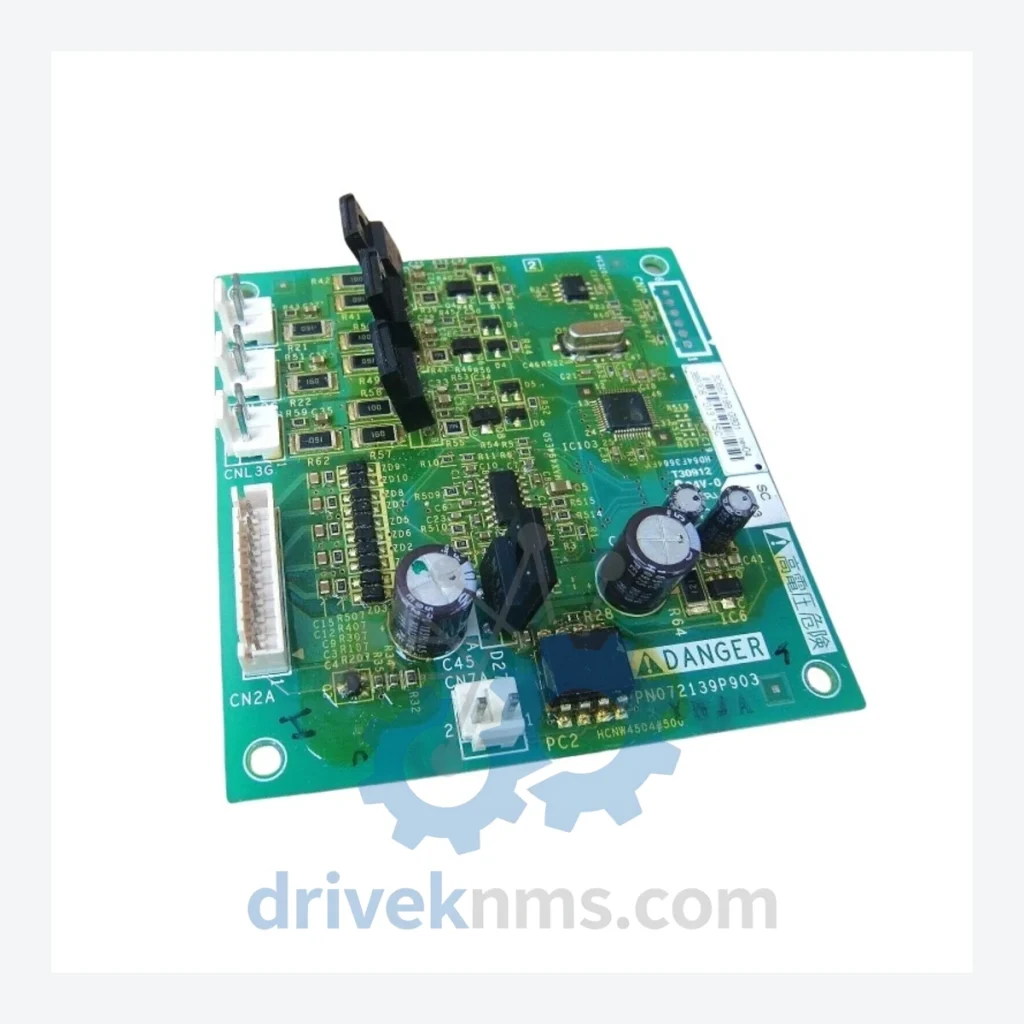

Schneider PN072139P903 Thyristor Trigger Board – Obsolete Altivar Spare Part

When a thyristor trigger board fails inside an aging Schneider Electric Altivar variable frequency drive, the consequences extend far beyond a single component. The entire drive becomes non-operational. In facilities where these drives control critical conveyor lines, compressors, pumps, or HVAC systems, an unplanned shutdown can cascade into production losses measured in tens of thousands of dollars per hour. A full drive replacement — where a modern equivalent even exists — typically demands new cabinet engineering, updated PLC interfacing, and re-commissioning time that stretches from weeks to months. The PN072139P903 thyristor trigger board is the component that prevents that scenario. DriveKNMS holds verified stock of this discontinued board, sourced through controlled industrial channels, for facilities that cannot afford to gamble on system availability.

Technical Specifications

Note: Specific electrical parameters (voltage ratings, gate pulse timing) are verified during our QA process and provided upon request with test documentation. No parameters are published without confirmed measurement data.

Solving the Discontinued Hardware Crisis

The Schneider Altivar drive family was deployed extensively across manufacturing, water treatment, and process industries throughout the 1990s and 2000s. Many of these installations remain in active service today — not because replacement has been overlooked, but because the cost and engineering complexity of full system migration is prohibitive. A single Altivar drive may interface with legacy PLCs, proprietary fieldbus networks, and mechanical systems that were designed around its specific torque and speed characteristics. Replacing the drive means re-engineering the entire control loop.

The thyristor trigger board is the component responsible for converting low-level control signals into the precise gate pulses that fire the power thyristors. When this board degrades — through capacitor aging, thermal cycling fatigue, or trace corrosion — the drive exhibits erratic speed control, overcurrent faults, or fails to start entirely. The failure mode is often misdiagnosed as a power stage fault, leading to unnecessary and expensive power module replacements. A correctly functioning PN072139P903 restores the drive to full specification without touching the power electronics.

For plant managers facing pressure to retire aging automation assets, the arithmetic is straightforward: a replacement trigger board at a fraction of the cost of a new drive buys 5 to 10 additional years of reliable operation. That window is sufficient to plan a structured, budgeted migration on the facility's own schedule — rather than executing an emergency replacement under production pressure.

Condition & Reliability Assurance

Obsolete boards sourced from the secondary market carry inherent risk. DriveKNMS applies a five-stage inspection protocol before any PN072139P903 is offered for sale:

• Visual and mechanical inspection: Board surface examined for physical damage, burnt traces, cracked solder joints, and component displacement.
• Electrolytic capacitor assessment: All electrolytic capacitors checked for bulging, leakage, and ESR deviation. Capacitors showing age-related degradation are flagged and replaced with specification-matched components.
• Firmware and component version verification: Board revision markings and component date codes are recorded and cross-referenced against known production batches to confirm authenticity and compatibility.
• Pin and connector integrity check: All edge connectors and pin headers inspected for oxidation, corrosion, and mechanical deformation. Contact surfaces cleaned and treated where required.
• Functional gate signal test: Where test equipment permits, gate pulse output is verified against reference waveform parameters to confirm the trigger circuit is operational.

Boards that do not pass all five stages are not offered for sale. Condition grade and test findings are documented and available to the buyer upon request.

Key Features for System Maintenance

• Drop-in replacement: The PN072139P903 installs directly into the original board position with no mechanical modification to the drive cabinet.
• No reprogramming required: The trigger board operates on hardware logic. Replacement does not require drive parameter re-entry or PLC software changes.
• Avoids engineering reconstruction costs: Substituting a compatible but non-identical board from a different manufacturer requires gate timing recalibration and carries risk of power stage incompatibility. The original part number eliminates that risk entirely.
• Preserves existing system certifications: Facilities operating under ISO, FDA, or industry-specific compliance frameworks maintain their validated configuration by using the original component.
• Supports long-term spare parts strategy: Procurement of multiple units while stock is available is a recognized asset protection practice for facilities with multiple identical drives.

FAQ

What warranty applies to an obsolete spare part?
DriveKNMS provides a 90-day warranty covering functional defects identified under normal operating conditions. Given the discontinued status of this component, we recommend testing the board in a controlled environment before installation in a live system.

How do I confirm the board is genuine and not a counterfeit?
All boards are inspected for Schneider Electric markings, PCB revision codes, and component date codes consistent with original production. Documentation is provided upon request. We do not sell boards that fail authenticity verification.

Should I purchase more than one unit?
For facilities operating multiple Altivar drives of the same series, holding two to three spare trigger boards is a standard risk mitigation practice. This component is no longer manufactured. Once current secondary market stock is exhausted, no further supply can be guaranteed at any price. Procurement now, while verified stock exists, is the lowest-cost insurance available.

Can this board be used in a drive that has been in storage?
Yes, with the caveat that drives stored for extended periods should undergo a controlled power-up sequence (voltage ramping) to reform DC bus capacitors before full load operation. The trigger board itself is not affected by drive storage conditions.
