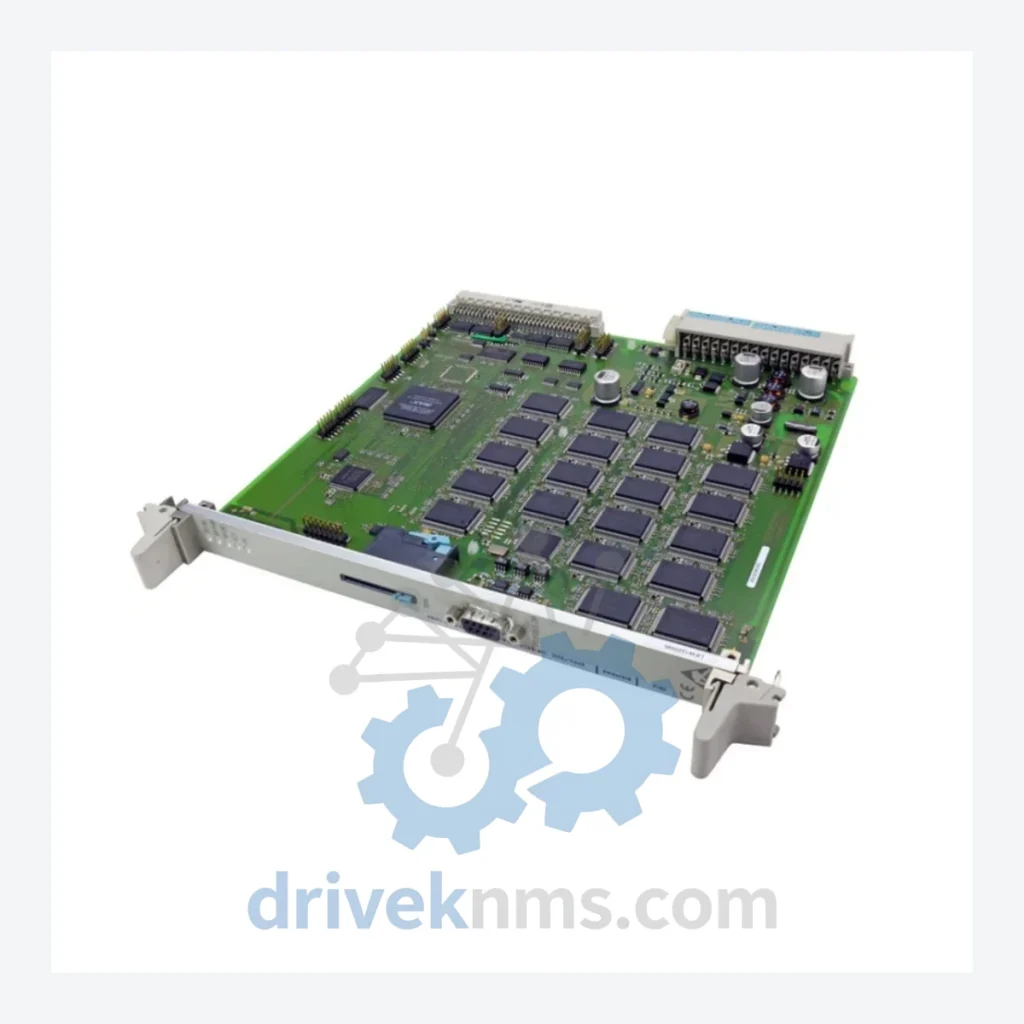

Siemens 6DP1616-8AA Interface Module – Obsolete SINEC H1 Spare Part

Technical Dossier

Product Details And Specifications

Siemens 6DP1616-8AA Interface Module – Obsolete SINEC H1 Spare Part

RFQ support for obsolete parts: Send the model number, required quantity and destination so DriveKNMS can confirm sourcing options before quotation.

Technical Specifications

Note: Electrical parameters such as supply voltage, current draw, and bus timing are not published here to avoid inaccuracy. Confirmed specifications are provided upon request with supporting documentation.

Solving the Discontinued Hardware Crisis

The Siemens SINEC H1 network and the SIMATIC S5 controller family represent a generation of industrial automation infrastructure installed across petrochemical plants, automotive body shops, steel mills, and utility substations throughout the 1980s and 1990s. Many of these systems remain in continuous operation today — not because of inertia, but because the process logic embedded in them represents decades of tuning, safety validation, and regulatory approval that cannot be replicated quickly or cheaply.

The 6DP1616-8AA sits at the communication layer of this architecture. It handles the data exchange between the S5 CPU and the SINEC H1 Ethernet segment. When this module degrades — through capacitor aging, connector oxidation, or firmware corruption — the entire network segment loses its host interface. Redundant paths, if they exist, absorb the load temporarily. But a facility operating without a verified spare is operating on borrowed time.

Condition & Reliability Assurance

Every 6DP1616-8AA unit processed by DriveKNMS passes a five-stage inspection protocol before it is offered for sale. This protocol is designed specifically for discontinued industrial hardware, where age-related degradation follows predictable failure modes.

Stage 1 – Visual and Mechanical Inspection: Board surface, connector pins, and housing are examined for physical damage, corrosion, and evidence of prior repair or rework.

Stage 2 – Electrolytic Capacitor Assessment: Capacitors on legacy communication boards are a primary failure point. Units showing bulging, electrolyte leakage, or ESR values outside tolerance are rejected or recapped before further testing.

Stage 3 – Firmware Version Verification: Where accessible, firmware revision is confirmed and documented. Compatibility with the target system version is verified against known revision matrices.

Stage 4 – Pin and Contact Integrity Check: All edge connectors and backplane pins are inspected for oxidation, bending, and contact resistance. Affected contacts are cleaned or the unit is rejected.

Key Features for System Maintenance

Facilities that maintain a verified spare of this module avoid the following costs: emergency sourcing premiums, expedited freight charges, extended production shutdown, and the engineering hours associated with evaluating and implementing alternative solutions under pressure. The total avoided cost of a single unplanned outage typically exceeds the cost of maintaining a spare inventory for the entire S5 communication layer by a significant margin.

Can you source other S5 or SINEC H1 components?
Yes. DriveKNMS specializes in the broader SIMATIC S5 and SINEC ecosystem. Submit your full bill of materials for a consolidated sourcing assessment.
