Siemens SIPART PS2 Modules – 6DR5210-0EG00-0AA0

Technical Dossier

Product Details And Specifications

Siemens SIPART PS2 Series Technical Notes

The Siemens SIPART PS2 series (order number prefix: 6DR5) is one of the most widely deployed families of intelligent electropneumatic positioners in global heavy industry. Installed across petrochemical refineries, LNG terminals, nuclear auxiliary systems, pulp and paper mills, and large-scale power generation facilities, the SIPART PS2 platform has accumulated decades of field service in environments where valve control precision directly governs process safety and throughput economics.

The series supports both single-acting and double-acting pneumatic actuators, with variants covering HART, PROFIBUS PA, Foundation Fieldbus H1, and 4–20 mA analog communication. Its modular design allows the base positioner to be extended with alarm modules, position feedback modules, and intrinsically safe barriers, making it adaptable to Zone 1 and Zone 2 hazardous area classifications (ATEX / IECEx). The installed base of SIPART PS2 units in operating plants worldwide is measured in the hundreds of thousands, which means that sourcing replacement units and spare modules remains a sustained operational requirement for plant maintenance teams well into the 2030s.

The Evolution of SIPART PS2 Architecture

The SIPART PS2 product line was introduced by Siemens in the mid-1990s as a successor to the earlier SIPART PS1 (6DR2xxx) analog positioner family. The transition from PS1 to PS2 represented a fundamental shift from purely analog position control to microprocessor-based digital self-calibration, auto-tuning, and diagnostic reporting.

Generation 1 (6DR40xx / early 6DR52xx): Initial HART-capable units with basic diagnostic registers. Limited NAMUR NE107 compliance. Firmware updates required physical module swap.

Generation 2 (6DR5xxx standard housing): Introduced the current compact housing format, expanded PROFIBUS PA and FF H1 variants, improved EMC shielding, and extended operating temperature range to –30°C / +80°C. This generation established the dominant installed base.

Generation 3 / Current (6DR5xxx with advanced diagnostics): Added partial stroke testing (PST) capability, enhanced SIL 2 documentation packages, and integration with Siemens PCS 7 and SIMATIC PDM asset management. Some sub-variants in this generation have been consolidated or superseded, creating sourcing gaps for plants locked to earlier firmware revisions.

Compatibility between generations is not always transparent. Plants running older DCS configurations (e.g., Siemens PCS 7 v7.x or Honeywell Experion with PROFIBUS PA segments) may face parameter mapping conflicts when substituting a Generation 3 unit for a Generation 1 or 2 device. This is the primary driver of demand for exact-match replacement units rather than current-production equivalents.

SIPART PS2 Full Catalog & Functionalities (SKU List)

The following SKUs represent the core of the SIPART PS2 range. Each entry reflects a distinct configuration of communication protocol, actuator action, housing type, and approval class. Only verified model numbers within the 6DR5 series are listed.

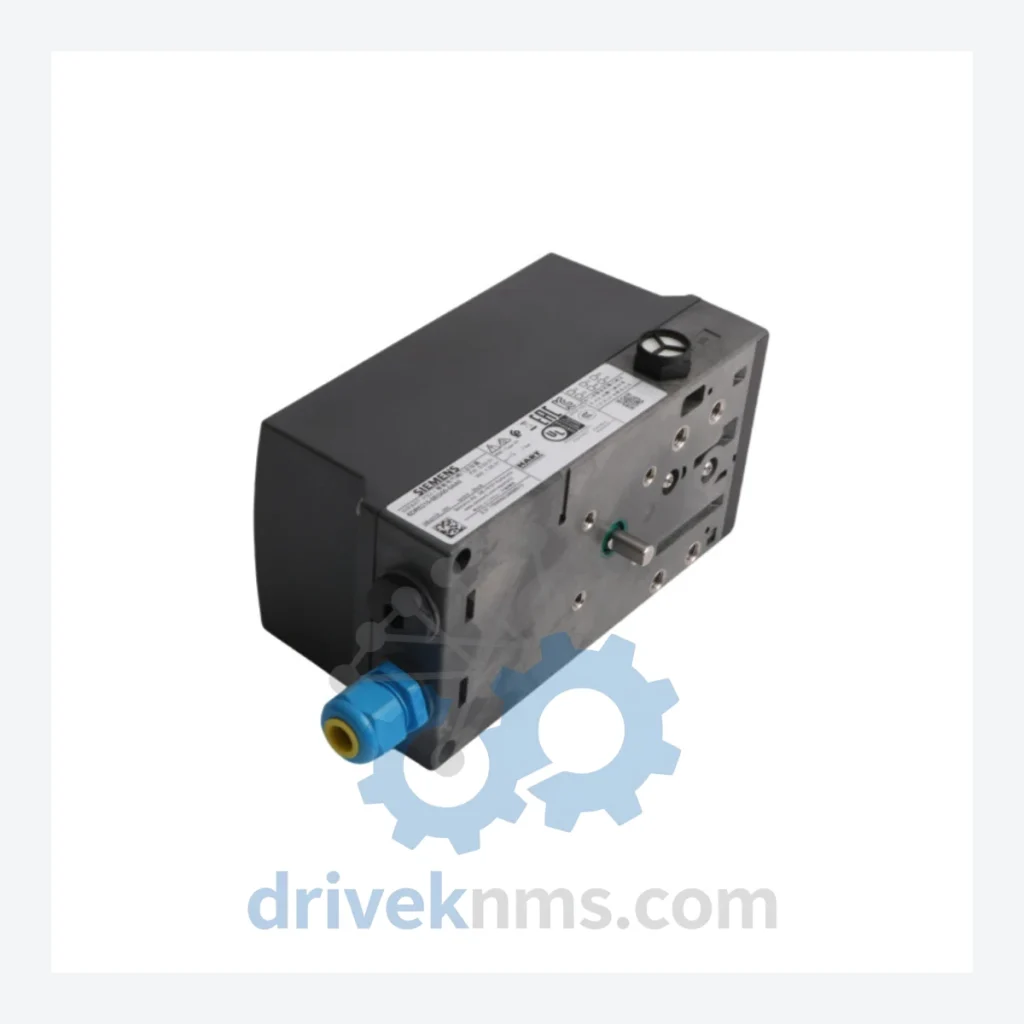

6DR5210-0EG00-0AA0: Single-acting, 4–20 mA / HART, standard housing, no Ex approval, basic I/O.
6DR5220-0EG00-0AA0: Double-acting, 4–20 mA / HART, standard housing, no Ex approval.
6DR5210-0NG00-0AA0: Single-acting, PROFIBUS PA, standard housing, non-Ex, PA bus-powered.
6DR5220-0NG00-0AA0: Double-acting, PROFIBUS PA, standard housing, non-Ex.
6DR5210-0EG00-0AA3: Single-acting, HART, stainless steel housing variant for corrosive environments.
6DR5220-0EG00-0AA3: Double-acting, HART, stainless steel housing, corrosion-resistant.
6DR5210-0EG00-0AB0: Single-acting, HART, with integrated limit switch module (2 SPDT).
6DR5220-0EG00-0AB0: Double-acting, HART, with integrated limit switch module.
6DR5210-0EG00-0AC0: Single-acting, HART, with position feedback potentiometer output.
6DR5210-0AG00-0AA0: Single-acting, Foundation Fieldbus H1, standard housing, non-Ex.
6DR5220-0AG00-0AA0: Double-acting, Foundation Fieldbus H1, standard housing, non-Ex.
6DR5210-0EG00-2AA0: Single-acting, HART, ATEX Zone 2 / IECEx approved, Ex nA.
6DR5220-0EG00-2AA0: Double-acting, HART, ATEX Zone 2 / IECEx approved.
6DR5210-0EG00-1AA0: Single-acting, HART, ATEX Zone 1 / Ex ia intrinsically safe.
6DR5220-0EG00-1AA0: Double-acting, HART, ATEX Zone 1 / Ex ia intrinsically safe.
6DR5510-0EG00-0AA0: Single-acting, HART, compact housing (PS2 compact variant), reduced footprint.
6DR5520-0EG00-0AA0: Double-acting, HART, compact housing variant.
6DR4004-1ED: SIPART PS2 alarm module — 2 limit switches, plug-in expansion for base unit.

Sourcing Hard-to-Find & Obsolete SIPART PS2 Parts

Several sub-variants within the SIPART PS2 range have been discontinued or consolidated by Siemens as the product line has matured. Specific firmware-locked units, early stainless steel housings, and certain Foundation Fieldbus variants are no longer available through standard distribution channels. Plants that cannot accept a firmware or hardware revision change — due to SIL validation constraints, DCS parameter lock-in, or insurance audit requirements — must source exact-match units from the secondary market.

Quality Control for the SIPART PS2 Range

The SIPART PS2 positioner integrates a microprocessor, pneumatic pilot valve assembly, position sensor (potentiometer or Hall-effect), and communication interface on a single compact platform. Each subsystem requires independent verification before a unit is released for field installation.

Step 1 — Housing and Connector Inspection: Visual and dimensional check of the enclosure, cable gland threads, and pneumatic port fittings. Corrosion, impact damage, and thread wear are disqualifying conditions.

Step 2 — Position Sensor Verification: The internal position feedback element (potentiometer or contactless sensor depending on variant) is tested across its full mechanical travel range. Linearity deviation exceeding specification is cause for replacement of the sensor assembly.

Step 3 — Pneumatic Pilot Valve Function Test: The internal I/P converter and pilot valve are cycled under controlled supply pressure (1.4–7 bar depending on variant). Leakage rate and response time are measured against factory specification.

Step 4 — Communication Interface Test: HART units are interrogated via a HART communicator to verify device descriptor, firmware revision, and diagnostic register integrity. PROFIBUS PA units are tested on a live PA segment for address assignment and cyclic data exchange. FF H1 units undergo block instantiation verification.

Step 5 — Auto-Calibration Run: The unit is mounted on a test actuator and a full SIPART PS2 initialization sequence is executed (RUN mode, automatic travel calibration). Calibration completion without error codes is the release criterion.
