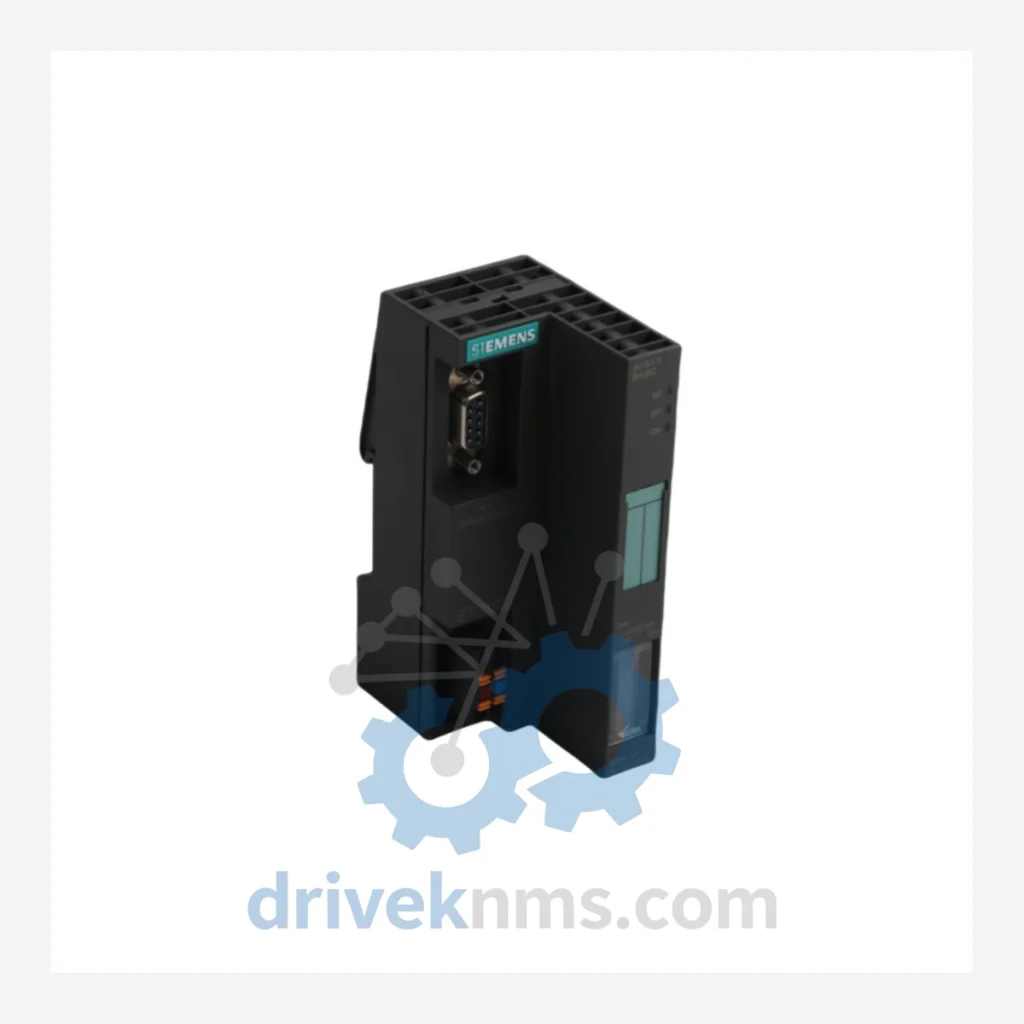

The Siemens ET 200S (SIMATIC ET 200S) is a modular, distributed I/O system designed for installation in the field, directly at the machine level. It operates under the PROFIBUS-DP and PROFINET communication standards and is deployed across the full spectrum of heavy industrial environments — including petrochemical refineries, nuclear power auxiliary systems, offshore platforms, pharmaceutical batch processing, and steel mill automation. Its compact, slot-based architecture allows granular channel-level configuration, making it one of the most widely installed distributed I/O platforms in process and discrete manufacturing globally. The 6ES7151-1CA00-0AB0 is an IM151-1 Standard Interface Module within this family, serving as the PROFIBUS-DP slave head station for an ET 200S station.

The Evolution of ET 200S Architecture

The ET 200S platform was introduced by Siemens in the late 1990s as a successor to the ET 200B and ET 200U systems, addressing the industry demand for finer I/O granularity and field-level intelligence. The first-generation interface modules (IM151-1 Basic, IM151-1 Standard) communicated exclusively via PROFIBUS-DP at up to 12 Mbit/s. These modules established the foundational slot-based terminal module (TM) architecture that remains structurally compatible across generations.

The second generation introduced the IM151-3 PN series, migrating the head station to PROFINET IO, enabling isochronous real-time (IRT) communication and integration with TIA Portal engineering. Simultaneously, the IM151-7 CPU variants embedded local processing capability directly into the ET 200S station, enabling autonomous operation during network interruptions — a critical feature for safety-instrumented systems.

ET 200S Full Catalog & Functionalities (SKU List)

Interface Modules (IM151 — Head Stations)

• 6ES7151-1AA05-0AB0: IM151-1 Basic; PROFIBUS-DP slave; max 12 Mbit/s; up to 63 I/O modules per station.
• 6ES7151-1BA02-0AB0: IM151-1 Standard; PROFIBUS-DP; supports DPV1 acyclic services; diagnostic interrupt capable.
• 6ES7151-1CA00-0AB0: IM151-1 Standard; PROFIBUS-DP slave; integrated 24 VDC power supply monitoring; station-level diagnostics.
• 6ES7151-3AA23-0AB0: IM151-3 PN Standard; PROFINET IO device; supports MRP media redundancy; IRT-capable.
• 6ES7151-3BA23-0AB0: IM151-3 PN High Feature; PROFINET IO; shared device function; PROFIsafe support for F-modules.
• 6ES7151-7AA21-0AB0: IM151-7 CPU; standalone CPU with PROFIBUS-DP master/slave; 48 KB work memory; autonomous station operation.
• 6ES7151-7FA01-0AB0: IM151-7 F-CPU; fail-safe CPU; SIL 3 / Cat. 4 capable; integrated safety program execution.

Digital Input Modules (DI)

• 6ES7131-4BB01-0AB0: 2DI × DC 24V; standard digital input; 3 ms input delay; single-channel terminal module.
• 6ES7131-4BD01-0AB0: 4DI × DC 24V; standard digital input; 3 ms input delay; compact 4-channel configuration.
• 6ES7131-4BF00-0AB0: 4DI × DC 24V High Feature; parameterizable input delay 0.1–20 ms; hardware interrupt capable.
• 6ES7138-4FB03-0AB0: F-DI 4×24VDC PROFIsafe; fail-safe digital input; SIL 2/3; used in emergency stop circuits.

Digital Output Modules (DO)

• 6ES7132-4BB01-0AB0: 2DO × DC 24V / 0.5A; standard digital output; short-circuit protected.
• 6ES7132-4BD02-0AB0: 4DO × DC 24V / 0.5A; standard digital output; diagnostic per channel.
• 6ES7132-4HB01-0AB0: 2DO × Relay AC/DC; relay output; 2A switching capacity; for motor contactor control.
• 6ES7138-4FB04-0AB0: F-DO 4×24VDC/2A PROFIsafe; fail-safe digital output; SIL 2/3; valve and actuator shutdown.

Analog Input / Output Modules (AI/AO)

• 6ES7134-4FB01-0AB0: 2AI × U/I Standard; ±10V / 0–20mA / 4–20mA; 12-bit resolution.
• 6ES7134-4GB11-0AB0: 2AI × RTD; PT100/PT1000/NI100; temperature measurement; 15-bit resolution.
• 6ES7135-4FB01-0AB0: 2AO × U/I Standard; ±10V / 0–20mA output; 12-bit resolution; for control valve positioners.

Power Modules (PM)

• 6ES7138-4CA01-0AA0: PM-E DC 24V; power module for electronic modules; segment isolation; 10A rated current.
• 6ES7138-4CB11-0AB0: PM-E DC 24V / AC 120/230V; universal power module; supports mixed voltage segments.
• 6ES7138-4CF42-0AB0: PM-E F DC 24V PROFIsafe; fail-safe power module; controlled de-energization of output segments.

Sourcing Hard-to-Find & Obsolete ET 200S Parts

The ET 200S platform's transition to end-of-active-production status has created a well-documented supply gap in the industrial MRO market. Siemens' standard commercial channels prioritize ET 200SP, leaving operators of legacy ET 200S installations — particularly those running PROFIBUS-DP architectures that cannot be migrated without full rewiring — dependent on specialist distributors.

All sourced modules are verified against the Siemens MLFB (Maschinenlesbare Fabrikatebezeichnung) coding system to confirm firmware revision, hardware index, and regional compliance markings prior to dispatch.
