Siemens 6ES7241-1CH30-0XB0

Technical Dossier

Product Details And Specifications

Siemens S7-1200 Series Technical Notes

The Evolution of S7-1200 Architecture

The S7-1200 platform has evolved through several hardware generations since its launch. The original V1.0 CPUs (circa 2009) supported basic ladder logic and function block diagram programming via STEP 7 Basic. V2.x introduced expanded data logging and web server functionality. V3.x added motion control capabilities (PROFIdrive, TO_PositioningAxis). V4.x — the current mainstream generation — introduced OPC UA server integration, PROFINET IRT support, and expanded SIMATIC Memory Card compatibility.

Communication module architecture evolved in parallel: early CM 1241 modules (RS232/RS485) provided serial legacy connectivity; later additions include CM 1242-5 (PROFIBUS DP slave), CM 1243-5 (PROFIBUS DP master), CM 1241 RS422/485 variants, and CP 1242-7 GPRS for remote telemetry. Compatibility between CPU firmware versions and CM/SM hardware revisions is a documented maintenance concern — particularly for installations mixing V2.x CPUs with V4.x-era expansion modules. Always verify the hardware compatibility matrix (Siemens Industry Online Support document A5E02486680) before substitution.

S7-1200 Full Catalog & Functionalities (SKU List)

CPU Modules

• 6ES7211-1AE40-0XB0: CPU 1211C DC/DC/DC — 6 DI / 4 DO / 2 AI, 50 KB work memory
• 6ES7212-1AE40-0XB0: CPU 1212C DC/DC/DC — 8 DI / 6 DO / 2 AI, 75 KB work memory
• 6ES7214-1AG40-0XB0: CPU 1214C DC/DC/DC — 14 DI / 10 DO / 2 AI, 100 KB work memory
• 6ES7215-1AG40-0XB0: CPU 1215C DC/DC/DC — 14 DI / 10 DO / 2 AI / 2 AO, dual PROFINET ports
• 6ES7217-1AG40-0XB0: CPU 1217C DC/DC/DC — 14 DI / 10 DO / 4 AI / 2 AO, high-speed I/O for motion

Digital Input / Digital Output Modules (SM 1221 / SM 1222 / SM 1223)

• 6ES7221-1BF32-0XB0: SM 1221 — 8 × 24 VDC digital inputs, sink/source compatible
• 6ES7222-1BF32-0XB0: SM 1222 — 8 × 24 VDC digital outputs, transistor (source)
• 6ES7223-1BL32-0XB0: SM 1223 — 16 DI / 16 DO 24 VDC, combined I/O module

Analog Input / Analog Output Modules (SM 1231 / SM 1232 / SM 1234)

• 6ES7231-4HD32-0XB0: SM 1231 — 4 × analog inputs, ±10 V / 0–20 mA, 13-bit resolution
• 6ES7232-4HB32-0XB0: SM 1232 — 2 × analog outputs, ±10 V / 0–20 mA
• 6ES7234-4HE32-0XB0: SM 1234 — 4 AI / 2 AO combined analog module

Communication Modules (CM 1241 / CM 1242 / CM 1243)

• 6ES7241-1AH32-0XB0: CM 1241 RS422/485 — multi-drop serial for Modbus RTU / USS protocol

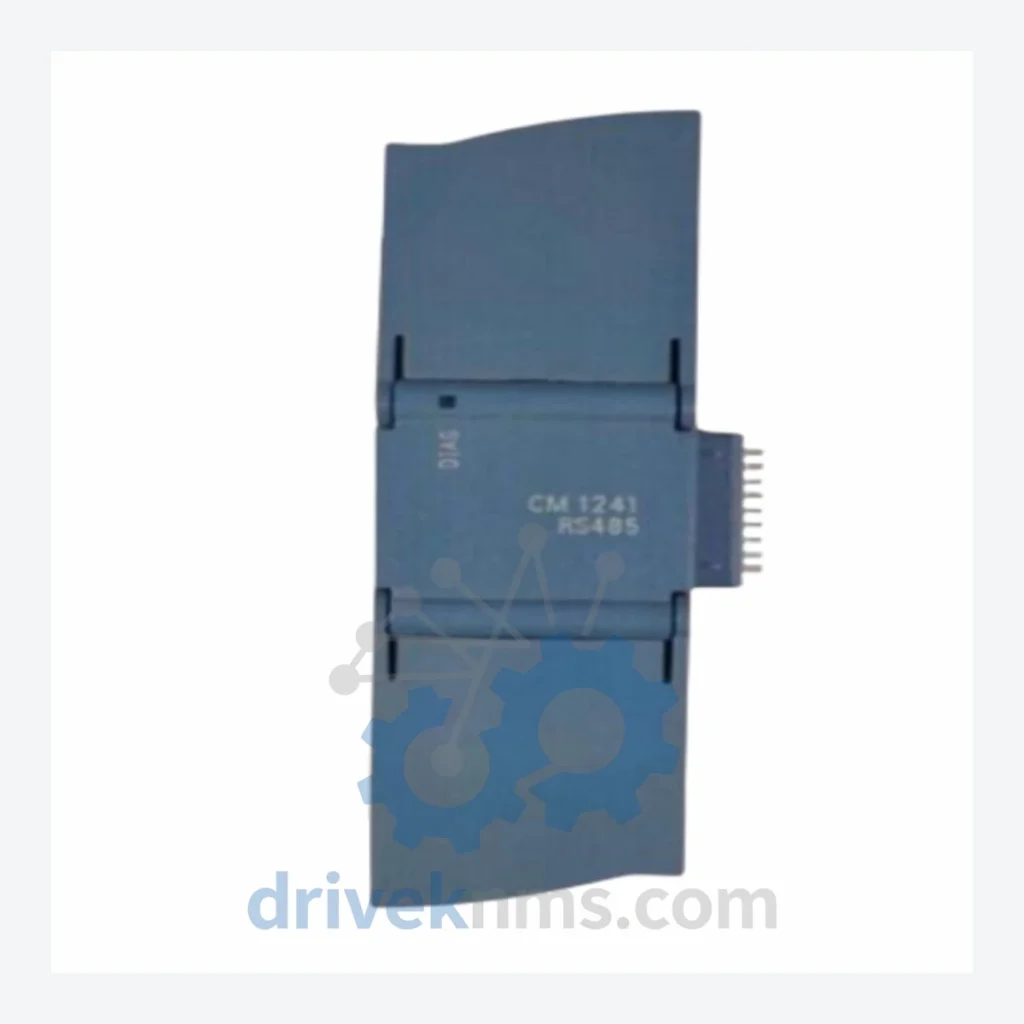

• 6ES7241-1CH30-0XB0: CM 1241 RS232 — point-to-point serial communication, supports Modbus RTU master/slave and USS drive protocol; max baud rate 115.2 kbps
• 6ES7242-5DX30-0XE0: CM 1242-5 — PROFIBUS DP slave interface for S7-1200 integration into existing DP networks
• 6ES7238-5XA32-0XB0: SM 1238 Energy Meter — power measurement module, 3-phase, 480 VAC

I/O System Accessories

• 6ES7221-3BD30-0XB0: SM 1221 — 8 × 120/230 VAC digital inputs for high-voltage field devices

Quality Control for the S7-1200 Range

S7-1200 modules present specific QC challenges due to their integrated PROFINET stack, onboard web server, and multi-protocol communication firmware. DriveKNMS applies the following test protocol to all S7-1200 units prior to shipment:

• Power-on verification: Confirm LED status sequence (RUN/STOP, ERROR, MAINT indicators) against Siemens diagnostic reference.
• CPU memory integrity: Load a standardized test project via TIA Portal V17; verify program execution and data retention across power cycles.
• PROFINET port test: Establish PROFINET IO controller/device link; verify cyclic data exchange at 1 ms update rate.
• Serial CM functional test: For CM 1241 units (including 6ES7241-1CH30-0XB0), execute Modbus RTU read/write cycles at 9600, 19200, and 115200 baud; verify framing error rate <0.01%.
• I/O module channel test: All DI/DO channels individually stimulated and verified; AI/AO channels calibrated against traceable reference instruments.
• Thermal soak: 4-hour burn-in at 55°C ambient to screen early-life failures.
