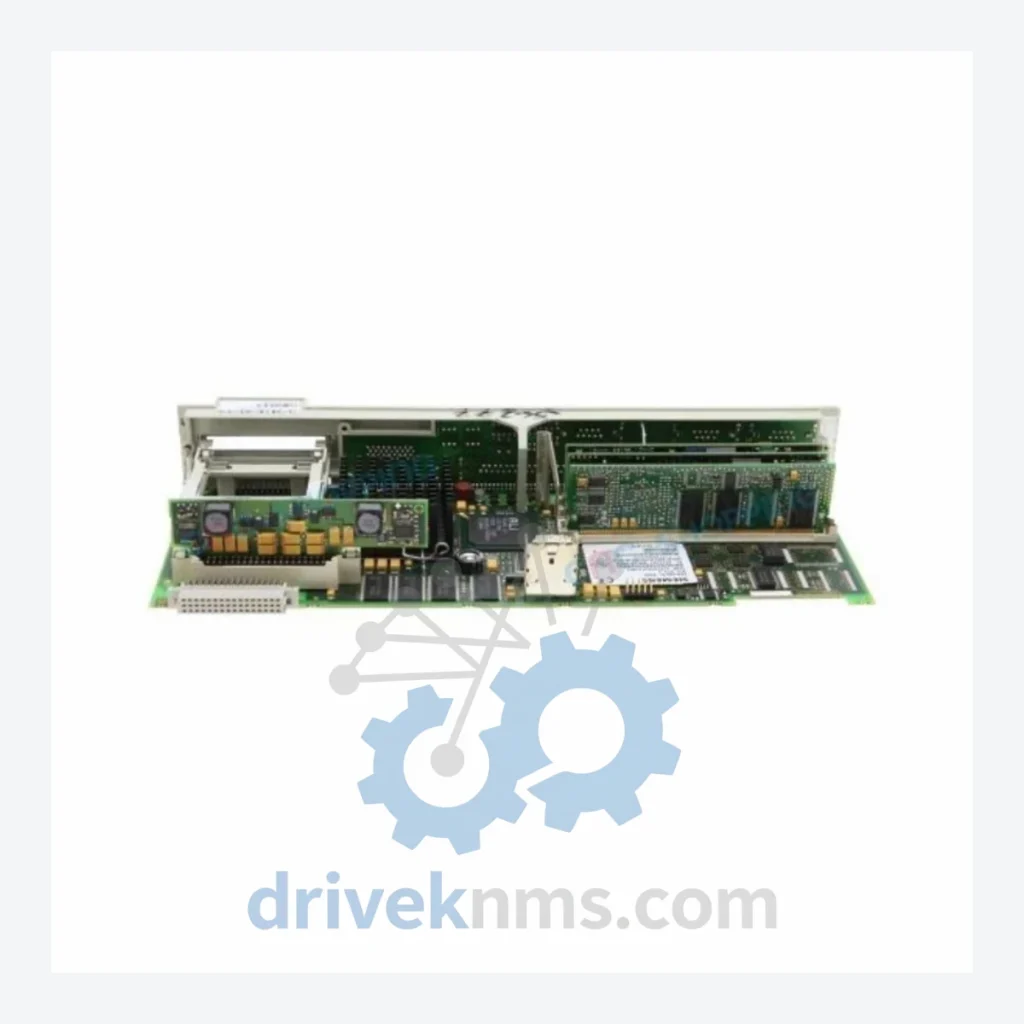

Siemens SINUMERIK 840D NCU 571.4 Modules: 6FC5357-0BB12-0AE0

Technical Dossier

Product Details And Specifications

Siemens SINUMERIK 840D NCU 571.4 Series Technical Notes

The Siemens SINUMERIK 840D is one of the most widely deployed CNC control platforms in global heavy industry. Installed across chemical processing plants, nuclear power facilities, oil refineries, automotive body shops, and aerospace manufacturing lines, the 840D platform has maintained a dominant position in high-precision multi-axis machining environments since its introduction in the mid-1990s. The NCU (Numerical Control Unit) 571.4, identified by the base order number 6FC5357-0BB12-0AE0, represents a mature, field-proven processor module within the 840D sl (solution line) architecture. Its continued presence in active production environments — many of which operate 24/7 — makes lifecycle parts management a critical operational concern for maintenance engineers worldwide.

The Evolution of SINUMERIK 840D Architecture

The SINUMERIK 840D platform was launched by Siemens in 1994 as a successor to the 840C, introducing a fully digital drive interface (PROFIBUS-based) and an open PC architecture for the HMI layer. The original 840D (classic) used NCU 5xx modules housed in a dedicated rack alongside the SIMODRIVE 611D drive system. Key architectural milestones include:

• 840D Classic (1994–2006): NCU 510, 520, 531, 561, 571 — rack-mounted, PROFIBUS DP communication, SIMODRIVE 611D drives.
• 840D sl (Solution Line, 2006–present): NCU 710.x, 720.x, 730.x — integrated drive-control architecture using DRIVE-CLiQ, compatible with SINAMICS S120 drives. The NCU 571.4 (6FC5357-0BB12-0AE0) belongs to the transitional and extended-support generation of the sl line.
• Compatibility constraints: NCU 571.4 modules are not backward-compatible with classic 840D racks. They require the 840D sl panel bus and are paired with NX (axis expansion) modules and the TCU (Thin Client Unit) or PCU 50.5 for HMI.
• Current status: The SINUMERIK 840D sl series, including the NCU 571.4, has entered its mature/extended lifecycle phase. Siemens continues to provide spare parts and repair services, but new installations are increasingly directed toward the SINUMERIK ONE platform. This makes reliable aftermarket sourcing of 840D sl components — including 6FC5357-series NCUs — essential for facilities committed to long-term 840D operation.

SINUMERIK 840D NCU 571.4 Full Catalog & Functionalities (SKU List)

The following SKUs represent verified, commonly traded components within the SINUMERIK 840D sl ecosystem. Each module is categorized by functional role.

NCU Processor Modules (CPU / Controller)

• 6FC5357-0BB12-0AE0: NCU 571.4 processor module; 1.5 GHz CPU, 1 GB RAM, integrated PLC (SIMATIC S7-300 compatible), PROFIBUS & DRIVE-CLiQ interfaces.
• 6FC5357-0BB23-0AE3: NCU 572.5 processor module; enhanced multi-axis interpolation, extended SRAM for large part programs.
• 6FC5357-0BB33-0AE3: NCU 573.5 processor module; high-speed machining option, 5-axis simultaneous interpolation support.
• 6FC5357-0BB13-0AE3: NCU 571.5 processor module; successor to 571.4 with improved thermal management and extended DRIVE-CLiQ port count.

NX Axis Expansion Modules (I/O & Drive Interface)

• 6FC5357-0BB00-0AE0: NX 10.3 axis expansion unit; 3-axis DRIVE-CLiQ expansion for NCU sl systems.
• 6FC5357-0BB10-0AE0: NX 15.3 axis expansion unit; 6-axis DRIVE-CLiQ expansion, panel bus interface.
• 6SN1145-1BA02-0CA1: SIMODRIVE 611 infeed/regenerative feedback module; 16 kW, used in legacy 840D classic installations.
• 6FC5111-0CA03-0AA1: SINUMERIK 840D I/O module for digital inputs/outputs; 24 VDC, 16 DI / 16 DO.

Communication & Network Adapters

• 6GK7343-1EX30-0XE0: CP 343-1 PROFINET communication processor; Ethernet/PROFINET interface for S7-300 integrated PLC.
• 6GK7343-1CX10-0XE0: CP 343-1 PROFIBUS DP master/slave communication module.
• 6FC5303-0AF00-0AA0: SINUMERIK 840D sl PROFIBUS DP adapter for distributed I/O expansion.

Power Supply Modules (PSU)

• 6EP1333-3BA00: SITOP PSU100S 24 VDC / 5 A stabilized power supply; standard auxiliary supply for NCU sl panel bus.
• 6EP1336-3BA00: SITOP PSU100S 24 VDC / 10 A; used where higher current draw from I/O modules is required.
• 6FC5247-0AA38-0AA0: SINUMERIK 840D sl 24 VDC buffer module; maintains NCU power during brief supply interruptions.

HMI & Operator Panel Components

• 6FC5210-0DF22-1AA1: TCU 30.3 Thin Client Unit; connects operator panel to NCU sl via Ethernet, replaces PCU in distributed HMI configurations.
• 6FC5203-0AF02-0AA0: OP 010 operator panel front; 10.4-inch TFT display, membrane keyboard, for 840D sl HMI.
• 6FC5203-0AF08-0AA0: OP 015A operator panel front; 15-inch TFT display, USB interface, ergonomic machine tool keyboard.

Sourcing Hard-to-Find & Obsolete SINUMERIK 840D NCU 571.4 Parts

• NCU 571.x and 572.x processor modules in multiple hardware revisions.
• NX axis expansion units for both 3-axis and 6-axis configurations.
• Legacy SIMODRIVE 611D power and drive modules for classic 840D installations.
• Operator panel components including TCU, PCU, OP 010, and OP 015A units.

All sourced units are accompanied by full traceability documentation. For discontinued models, DriveKNMS provides cross-reference analysis to identify compatible replacement SKUs where direct substitution is not available.

Quality Control for the SINUMERIK 840D NCU 571.4 Range

The NCU 571.4 integrates CNC processor, PLC, and drive communication functions on a single board, making functional validation more complex than standard I/O modules. DriveKNMS applies a structured test protocol specific to this module class:

• Power-on self-test (POST) verification: Confirms boot sequence integrity, BIOS/firmware version, and absence of hardware fault codes on the NCU status LEDs (RDY, RUN, SF, DP1, DP2).
• DRIVE-CLiQ port continuity test: Each DRIVE-CLiQ port is tested for signal integrity using a loopback adapter to verify the high-speed serial communication layer used for drive and encoder communication.
• PROFIBUS DP interface test: DP1 and DP2 ports are validated against a reference master/slave configuration to confirm correct telegram exchange and address resolution.
• SRAM data retention check: The battery-backed SRAM (used for part program and parameter storage) is tested for read/write integrity and battery voltage level.
• Thermal cycling inspection: Modules are inspected for capacitor degradation, solder joint fatigue, and connector oxidation — common failure modes in NCU units with high operating hours.
• Firmware compatibility audit: NCU firmware version is documented and cross-referenced against the customer's existing system software version to prevent incompatibility on installation.
