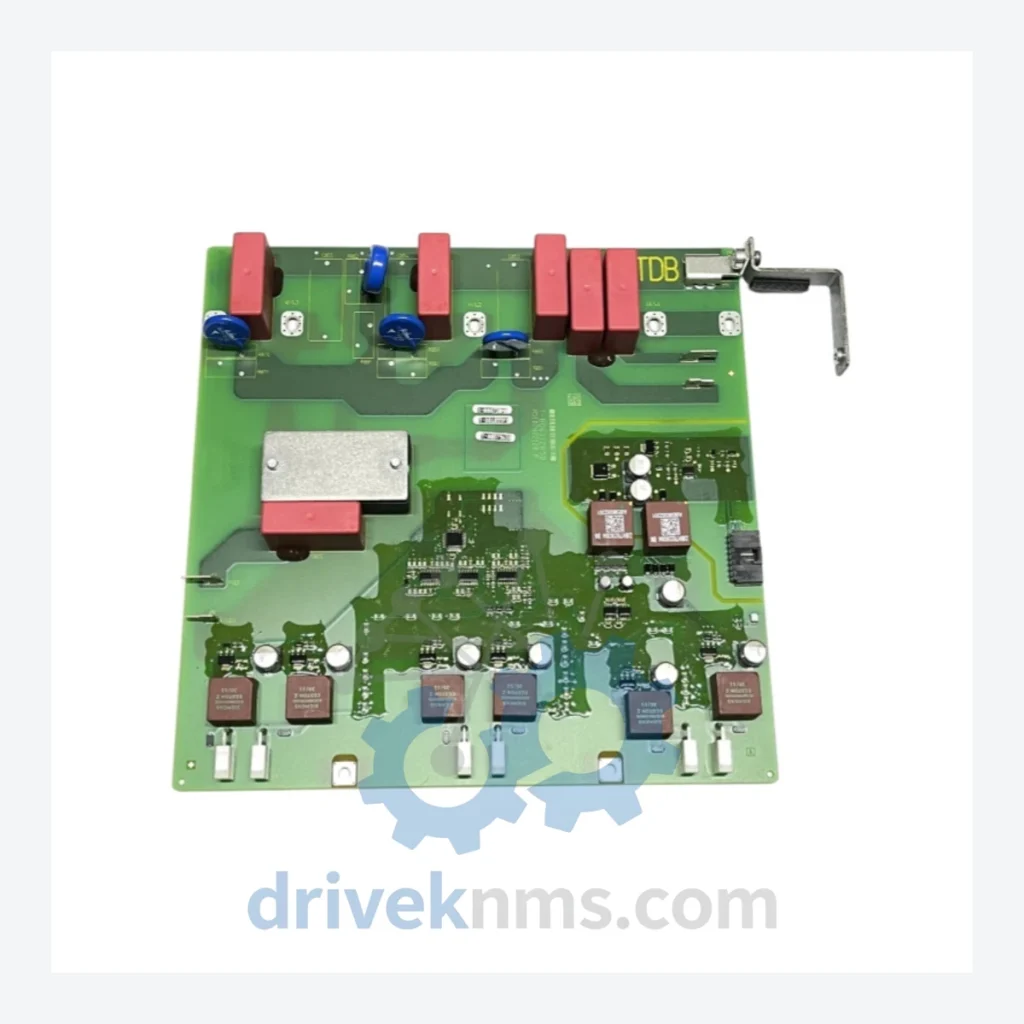

Siemens A5E02822120 Rectifier Trigger Board – Obsolete SIMOREG Spare Part

When a rectifier trigger board fails inside a Siemens SIMOREG DC drive, the consequences extend far beyond a single component. The SIMOREG DC Master series — the platform on which the A5E02822120 operates — has been progressively phased out of active Siemens production support. A single failed trigger board can bring an entire DC drive system to a standstill. For facilities running paper mills, steel rolling lines, crane systems, or large-scale extruders on SIMOREG infrastructure, the cost of an unplanned shutdown is not measured in component prices — it is measured in production losses, emergency engineering fees, and the capital expenditure of a full drive replacement program that can run into the hundreds of thousands of dollars per axis.

DriveKNMS holds verified physical stock of the A5E02822120. This is not a lead-time quotation. This is available inventory, sourced through controlled industrial channels, inspected before dispatch.

Technical Specifications

Solving the Discontinued Hardware Crisis

The Siemens SIMOREG DC Master platform was the backbone of heavy industrial DC drive applications for decades. Installed bases in steel plants, mining operations, paper production lines, and port crane systems across Europe, Asia, and the Americas still depend on this architecture daily. Siemens has transitioned its DC drive portfolio toward the SINAMICS DCM series, and active component support for legacy SIMOREG boards has been progressively withdrawn.

The A5E02822120 rectifier trigger board is the control heart of the thyristor bridge. It generates the precise gate firing pulses that regulate armature current — and by extension, motor torque and speed. Without a functioning trigger board, the drive cannot operate. There is no software patch, no firmware workaround, and no field repair that substitutes for a working board.

For plant managers facing this situation, the options narrow quickly: source the original board, retrofit to a new drive platform, or shut down. A full SIMOREG-to-SINAMICS DCM retrofit on a large DC drive involves new power electronics, new control wiring, motor parameter re-commissioning, and PLC interface re-engineering. On a multi-drive system, this is a multi-month project with engineering costs that dwarf the price of a spare board by orders of magnitude.

Holding one or two verified A5E02822120 boards in your maintenance inventory is not a luxury — it is a risk management decision. The cost of the spare is fixed. The cost of the alternative is open-ended.

How to extend your SIMOREG-based system life by 5 to 10 years:

• Critical spare inventory: Identify the two or three boards in your SIMOREG system that have no field-repairable failure modes. The A5E02822120 is one of them. Stock at least one verified spare per drive line.
• Scheduled board rotation: On drives running 24/7, consider rotating trigger boards during planned maintenance windows every 3–5 years. This allows bench testing of the removed board before it becomes an emergency.
• Capacitor and component aging audit: Electrolytic capacitors on boards of this age degrade predictably. A qualified electronics technician can identify boards approaching end-of-life before they fail in service.
• Firmware and parameter backup: Ensure all SIMOREG drive parameters are backed up via the OP1S operator panel or DriveMonitor software. A board swap without a parameter backup can extend downtime significantly.
• Supplier qualification: Establish a relationship with a verified obsolete parts supplier before you need one. Emergency sourcing under production pressure leads to counterfeit risk and inflated pricing.

Condition & Reliability Assurance

Sourcing obsolete boards from unverified channels carries real risk. DriveKNMS applies a structured 5-step inspection protocol to all legacy boards before dispatch:

1. Visual inspection: Full board examination for physical damage, burn marks, cracked solder joints, and corrosion on connector pins and PCB traces.
2. Electrolytic capacitor assessment: Capacitors are the primary aging component on boards of this generation. Each capacitor is checked for bulging, leakage, and ESR deviation from specification.
3. Firmware and revision verification: Board hardware revision markings are documented and cross-referenced against known compatible drive firmware versions to confirm compatibility.
4. Pin and connector integrity check: All edge connectors and plug-in terminals are inspected for oxidation, pin deformation, and contact resistance issues that cause intermittent faults.
5. Functional bench test (where applicable): Boards are powered and tested under controlled conditions where test equipment permits. Test results are documented and available on request.

Key Features for System Maintenance

• Drop-in replacement: The A5E02822120 installs directly into the existing SIMOREG drive chassis with no mechanical modification required.
• No reprogramming required: Drive parameters are stored in the control unit (CUD), not on the trigger board. A board swap does not require re-entering drive parameters, provided the CUD is intact.
• No engineering redesign: Unlike a drive platform retrofit, replacing this board requires no changes to motor cabling, field supply wiring, or PLC interface logic.
• Immediate operational restoration: A verified spare board allows maintenance teams to restore drive operation within the duration of a planned or emergency maintenance window — not weeks.
• Cost containment: The total cost of a spare board, including logistics, is a fraction of one day of lost production on most industrial lines that rely on SIMOREG DC drives.

FAQ

What warranty applies to an obsolete board like the A5E02822120?
DriveKNMS provides a 90-day warranty covering functional defects identified under normal operating conditions. Given the obsolete status of this component, we recommend customers test the board in a controlled environment upon receipt and prior to installation in a live system.

How do I know the board is genuine and not counterfeit?
All boards supplied by DriveKNMS are sourced through traceable industrial channels. Physical markings, board revision codes, and component configurations are verified against known-good reference units. We do not source from unverified secondary markets. Documentation of inspection results is available on request.

Should I buy more than one unit?
For any production line where SIMOREG DC drives are critical to output, holding a minimum of one spare A5E02822120 per drive is a standard risk management practice. For multi-drive systems or lines where downtime cost is high, two units per critical drive is a defensible position. Stock of obsolete components is finite and does not replenish.

Can DriveKNMS source other SIMOREG spare parts?
Yes. DriveKNMS specializes in legacy industrial automation components across multiple platforms. Contact us with your part numbers for availability and lead time.
