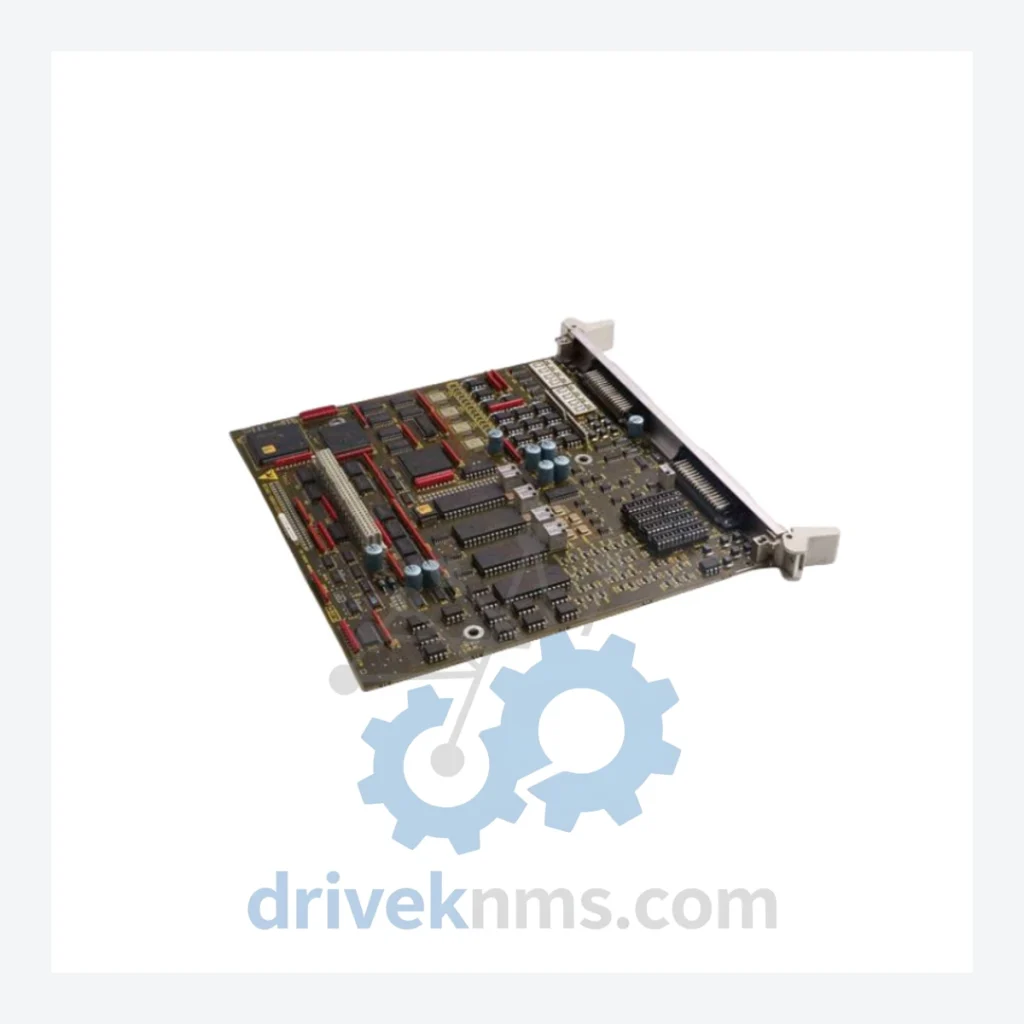

Siemens TELEPERM XP LDZ10501652 Modules

Technical Dossier

Product Details And Specifications

Siemens TELEPERM XP LDZ Series: Comprehensive Module Range and Technical Overview

The Siemens TELEPERM XP platform is a distributed control system (DCS) engineered for continuous-process industries operating under the most demanding conditions. Deployed across petrochemical complexes, nuclear power stations, offshore refineries, and large-scale chemical plants, the TELEPERM XP architecture has maintained a dominant installed base in critical infrastructure since its commercial introduction in the 1990s. The LDZ-prefix module family represents the core I/O, communication, and power supply layer of this platform, providing the physical interface between field instrumentation and the central processing units. Facilities running TELEPERM XP systems depend on LDZ modules for uninterrupted process control, making long-term parts availability a primary operational concern. DriveKNMS maintains a dedicated inventory of LDZ-series modules — including the LDZ10501652 frequency converter module — to support lifecycle extension programs for plants that cannot justify a full DCS migration.

The Evolution of TELEPERM XP LDZ Architecture

The TELEPERM XP system was introduced by Siemens as a successor to the TELEPERM M platform, incorporating a modular backplane bus architecture that allowed incremental expansion without system-wide reconfiguration. Early LDZ modules (circa 1995–2002) used parallel backplane communication with fixed-address slot assignment. Mid-generation revisions (2003–2010) introduced enhanced diagnostics via the PROFIBUS-DP interface layer and improved EMC shielding for high-noise industrial environments. Late-generation modules (2011–present) added firmware-level redundancy handshaking and extended operating temperature tolerance to -40°C / +70°C for outdoor cabinet installations.

Compatibility across generations is constrained by backplane revision levels. First-generation backplanes (BG type) do not support hot-swap of second-generation I/O modules without a firmware bridge adapter. Plants operating mixed-generation hardware must verify backplane revision codes before substituting modules. TELEPERM XP has entered the mature/end-of-active-production phase; Siemens officially transitioned new project recommendations to the SPPA-T3000 platform. However, the installed base of TELEPERM XP systems remains extensive, and Siemens continues to offer limited spare parts support through its lifecycle services division. Third-party suppliers such as DriveKNMS provide an essential secondary supply channel for modules that have reached end-of-catalog status.

TELEPERM XP LDZ Full Catalog & Functionalities (SKU List)

The following SKUs represent verified, commonly sourced components within the Siemens TELEPERM XP LDZ module family. Each entry reflects the module's primary functional classification and application role within the DCS architecture.

LDZ10501652: Frequency converter input module for rotational speed and pulse-count signals from field transmitters.
LDZ10500470: Analog input module, 8-channel, 4–20 mA, for process variable acquisition from field sensors.
LDZ10500424: Digital output module, 16-channel, 24 VDC, for discrete actuator and valve control signals.
LDZ10500482: Analog output module, 4-channel, 4–20 mA, for control signal transmission to final control elements.
LDZ10501600: Communication adapter module for PROFIBUS-DP network integration and inter-controller data exchange.
LDZ10501604: Redundant power supply module, 24 VDC, for dual-rail backplane power distribution.
LDZ10501606: CPU processing module for local loop control and sequence logic execution within the TELEPERM XP rack.
LDZ10500460: Digital input module, 16-channel, 24 VDC, for binary status acquisition from field switches and sensors.
LDZ10500462: Digital input module, 32-channel, 24 VDC, high-density configuration for large I/O count applications.
LDZ10500464: Analog input module, 16-channel, thermocouple/RTD, for temperature measurement in process streams.
LDZ10500466: Analog input module, 8-channel, ±10 V, for voltage-output sensor integration.
LDZ10500468: Analog output module, 8-channel, 4–20 mA, extended-range for multi-loop control applications.
LDZ10500472: Digital output module, 32-channel, relay type, for high-current switching of field devices.
LDZ10500474: Backplane bus terminator module for end-of-rack signal integrity and impedance matching.
LDZ10500476: Redundancy switchover module for automatic failover between primary and standby CPU modules.
LDZ10500478: Serial communication module, RS-232/RS-485, for legacy field device and HMI integration.

Sourcing Hard-to-Find & Obsolete LDZ Series Parts

As the TELEPERM XP platform has transitioned out of active production, procurement of LDZ-series modules through standard distribution channels has become increasingly unreliable. Lead times from authorized distributors frequently exceed 26 weeks for low-volume catalog items, and several SKUs — including the LDZ10501652 — have been formally discontinued by Siemens. DriveKNMS operates a dedicated obsolete-parts sourcing program for TELEPERM XP components. Stock is acquired through decommissioned plant buybacks, controlled factory surplus channels, and verified secondary market sources. All units are cataloged by revision level and firmware version to ensure compatibility with the customer's existing backplane configuration. For plants operating under long-term service agreements or regulatory requirements that prohibit DCS platform changes, DriveKNMS provides a documented supply chain with full traceability records. Emergency same-day quotation is available for critical shutdown situations.

Quality Control for the LDZ Series Range

LDZ-series modules present specific test challenges due to their multi-layer backplane bus interface and mixed analog/digital signal paths. DriveKNMS applies a structured test protocol to all LDZ units prior to dispatch. Each module undergoes visual inspection for capacitor degradation, PCB trace corrosion, and connector pin deformation — failure modes common in modules recovered from high-humidity or high-vibration environments. Functional testing is performed on a live TELEPERM XP backplane test rig, verifying channel-by-channel I/O accuracy, bus communication handshake integrity, and power rail stability under load. Analog modules are calibrated against NIST-traceable reference standards. Communication modules are tested for PROFIBUS-DP address assignment, data throughput, and error-frame rejection. Modules that pass all test stages are issued a test report and shipped with anti-static packaging and humidity indicator cards. Modules that fail any stage are quarantined and not returned to inventory.

For quotations, technical compatibility inquiries, or emergency sourcing requests for Siemens TELEPERM XP LDZ-series modules:
