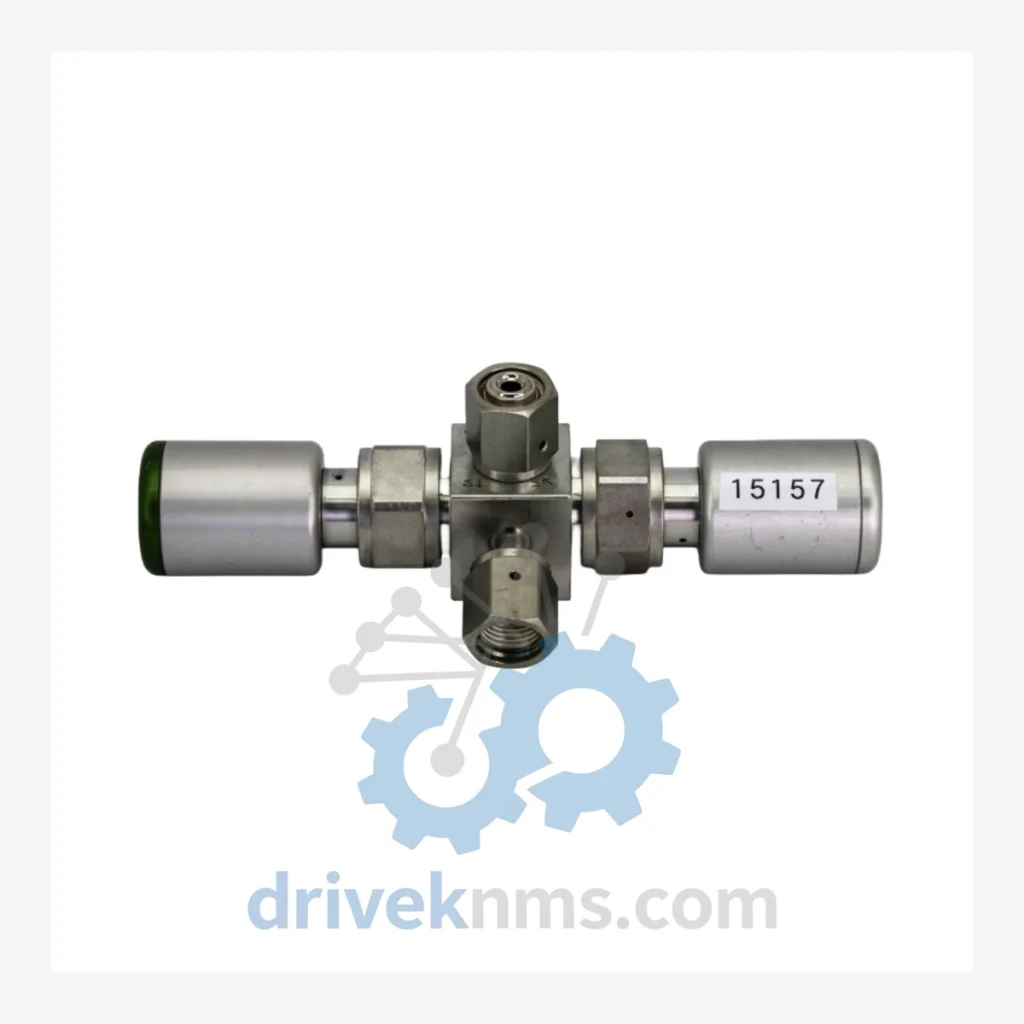

Swagelok 6L-M1D-122P-IJ Instrumentation Valve Assembly – Obsolete Double Configuration Spare Part

Technical Dossier

Product Details And Specifications

Swagelok 6L-M1D-122P-IJ Instrumentation Valve Assembly – Obsolete Double Configuration Spare Part

When a Swagelok 6L-M1D-122P-IJ valve assembly fails in a live process line, the consequences extend far beyond a single component replacement. This double-configuration instrumentation valve is embedded in fluid and gas control circuits across refineries, chemical processing plants, and offshore platforms that were engineered in the 1990s and early 2000s. The surrounding piping, manifold geometry, and instrument hook-up drawings were all specified around this exact fitting series. Replacing it with a current-generation alternative is not a drop-in exercise — it triggers re-engineering of the instrument hook-up, re-certification of the pressure boundary, and in regulated industries, a formal Management of Change (MOC) process. Conservative estimates place the total cost of a forced system upgrade triggered by a single obsolete valve failure at USD 200,000 to over USD 1,000,000 when engineering hours, production downtime, and regulatory compliance are factored in. DriveKNMS holds physical stock of this assembly. That stock is finite.

Technical Specifications

Note: Electrical and pressure ratings are not published here to prevent misapplication. Contact our technical team for verified datasheet confirmation before installation.

Solving the Discontinued Hardware Crisis

Process plants built between 1988 and 2008 standardized on Swagelok's M1D and IJ-series instrumentation fittings across thousands of instrument tap-off points. The valve's body geometry, thread form, and tube-end preparation were specified into P&IDs, instrument index sheets, and maintenance procedures that remain active today. When Swagelok rationalized its product line, these assemblies moved off the standard price list. Authorized distributors stopped stocking them. The installed base did not disappear — it aged.

The practical consequence is that maintenance teams facing a valve failure have three options: source the original part from the secondary market, re-engineer the instrument hook-up to accept a current-catalog valve (requiring new fittings, new tubing runs, and often new compression ferrules), or shut down the measurement point and operate blind. The first option is the only one that preserves schedule, budget, and regulatory standing simultaneously. DriveKNMS operates specifically in this secondary market, maintaining sourced inventory of discontinued Swagelok assemblies for clients who cannot afford the alternative.

For plant asset managers operating aging DCS infrastructure — particularly Honeywell TDC 3000 and Yokogawa CENTUM CS installations where instrument loop counts run into the thousands — a proactive spare parts strategy for obsolete valve assemblies is not optional. A single unplanned shutdown on a critical measurement loop costs more than a multi-year forward stock of the original components.

Extending Automation Asset Life by 5–10 Years: A Maintenance Strategy for Plant Management

The decision to retire an aging control system is rarely driven by the DCS itself. It is driven by the inability to maintain the field instrumentation and mechanical components that feed it. A Honeywell TDC 3000 or ABB Advant controller can continue to execute control logic reliably for decades — the constraint is the availability of field-side components like instrument valves, transmitter manifolds, and tube fittings that connect the process to the measurement system.

A structured approach to extending asset life by 5 to 10 years requires three disciplines. First, conduct a criticality-ranked audit of all instrumentation valve assemblies in service, identifying which part numbers are no longer in active distribution. Second, establish a minimum stock level for each critical obsolete assembly based on historical failure rates and lead time from secondary market sources — for hard-to-find Swagelok assemblies, secondary market lead times can run 8 to 20 weeks when stock is not pre-positioned. Third, negotiate long-term supply agreements with specialist distributors who maintain physical inventory rather than broker-only networks.

The capital cost of pre-positioning 12 months of critical spare valve assemblies is typically less than 0.5% of the cost of a single unplanned shutdown. For plant management facing board-level pressure to defer system upgrades, this arithmetic is the foundation of a defensible asset preservation strategy.

Condition & Reliability Assurance

Obsolete instrumentation components sourced from the secondary market carry inherent risk if not properly evaluated before installation in a pressure boundary. DriveKNMS applies a five-step quality assurance protocol to every Swagelok assembly in this category before it is offered for sale.

Step one: visual and dimensional inspection against original Swagelok engineering drawings, confirming body markings, thread form, and tube-end geometry. Step two: electrolytic capacitor condition assessment where applicable to any associated electronic sub-assemblies. Step three: ferrule and seat surface inspection under magnification, with rejection of any unit showing pitting, corrosion, or deformation at the sealing surfaces. Step four: firmware and configuration verification for any smart-enabled variants. Step five: pin and thread corrosion assessment, with cleaning and passivation applied to units that meet acceptance criteria after cleaning. Units that do not pass all five steps are not offered for sale. Condition grade is disclosed at point of quotation.

Key Features for System Maintenance

The 6L-M1D-122P-IJ assembly is a direct mechanical replacement for the original installed unit. No re-engineering of the instrument hook-up is required. Tube ends accept standard Swagelok compression ferrules already present in the existing installation. Thread connections match the original instrument body ports. There is no firmware to configure, no calibration to perform at the valve level, and no requirement to modify the surrounding piping or instrument index documentation. The replacement is installed, torqued to Swagelok specification, leak-tested, and returned to service. Engineering hours are measured in minutes, not days. This is the operational and financial case for sourcing the original part rather than accepting a substitute that triggers a re-engineering event.

FAQ

What warranty applies to obsolete Swagelok assemblies?
DriveKNMS provides a 90-day warranty against defects identified through our QA process. Warranty terms are confirmed in writing at point of sale and cover replacement of the supplied unit.

How do I confirm the unit is new or quality-refurbished?
Condition grade — new old stock, tested serviceable, or quality-refurbished — is declared on the quotation and shipping documentation. We do not mix grades within a single order without explicit customer agreement.

Should I buy more than one unit?
For any obsolete assembly installed in a critical measurement loop, holding a minimum of two spare units is standard practice. Secondary market availability is not guaranteed to persist. Once current stock is exhausted, the next sourcing cycle may take months. The cost of a second unit is negligible against the cost of an unplanned shutdown while waiting for resupply.

Can you source additional quantity if I need more than you have in stock?
Contact us with your total requirement. We maintain sourcing relationships across multiple secondary market channels and can advise on realistic lead times and availability for larger quantities.
