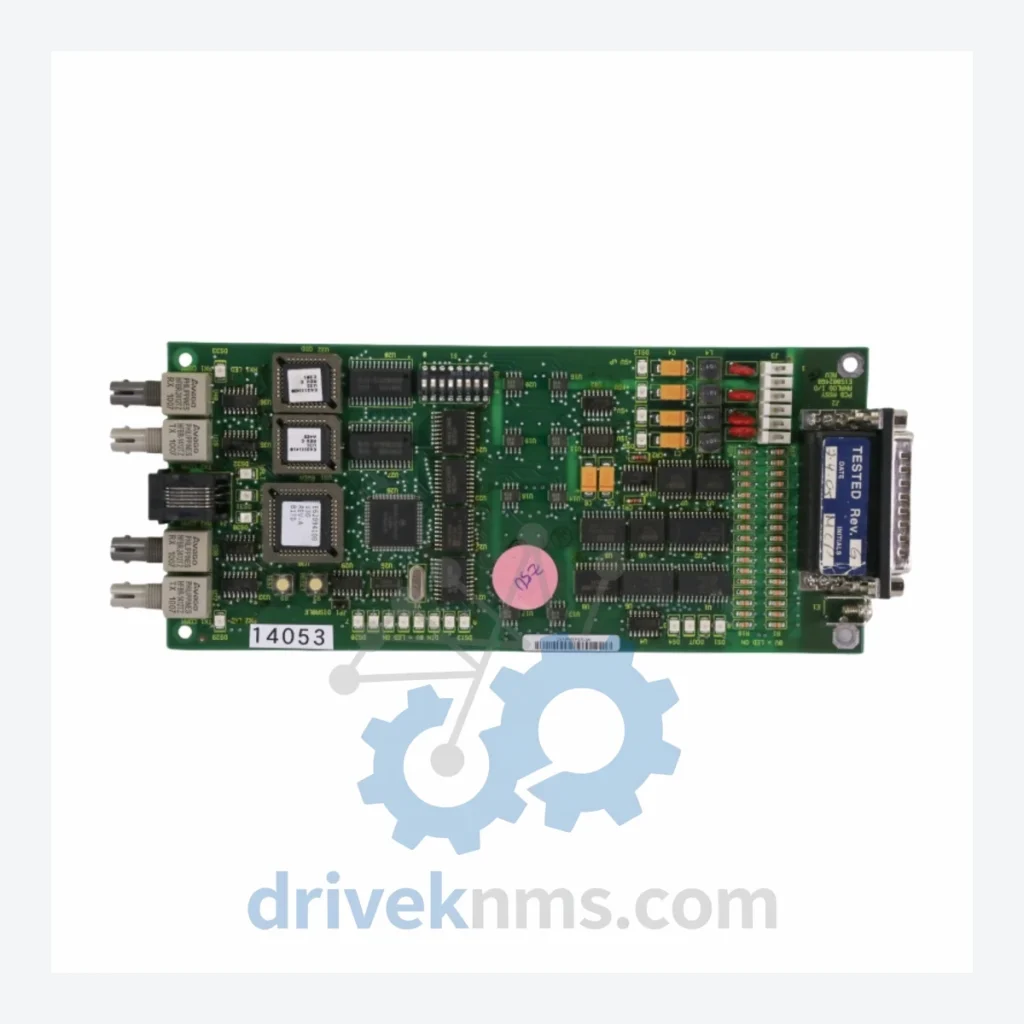

ABB 3HAC025562-001 DSQC 377B PCB Assembly – Obsolete Robotics Spare Part

Technical Dossier

Product Details And Specifications

ABB 3HAC025562-001 DSQC 377B PCB Assembly – Obsolete Robotics Spare Part

RFQ support for obsolete parts: Send the model number, required quantity and destination so DriveKNMS can confirm sourcing options before quotation.

Technical Specifications

Note: Electrical parameters not independently verified. Specifications above are drawn from publicly available ABB documentation. No parameters have been assumed or fabricated.

Solving the Discontinued Hardware Crisis

The ABB IRC5 and S4C+ controller platforms remain operational in thousands of manufacturing facilities worldwide — automotive body shops, foundries, food processing lines, and electronics assembly plants. These systems were engineered for 20-year service lives, and many are now well past that threshold. ABB ceased active production of the DSQC 377B series, and the module is no longer listed in current OEM catalogs.

Facilities that have extended their ABB robot fleet life by 5 to 10 years beyond OEM support typically share a common approach: they identify critical single-point-of-failure boards early, secure verified spares before market availability collapses, and maintain a documented spare parts register tied to each robot cell. The DSQC 377B sits squarely on that critical list for any IRC5-era installation.

Condition & Reliability Assurance

DriveKNMS applies a structured 5-step qualification process to every DSQC 377B unit before it leaves our facility:

• Step 1 – Visual Inspection: Full board examination under magnification. Solder joint integrity, component seating, and PCB trace condition are assessed. Units with visible corrosion, burn marks, or mechanical damage are rejected at this stage.
• Step 2 – Electrolytic Capacitor Assessment: Aged electrolytic capacitors are a primary failure mode in boards of this vintage. Each capacitor is checked for bulging, leakage, and ESR deviation. Suspect capacitors are replaced with specification-matched components before the unit proceeds.
• Step 3 – Firmware Version Verification: Where applicable, firmware revision is confirmed against known compatible versions for the target controller generation. Mismatched firmware is a silent failure risk that visual inspection alone cannot catch.
• Step 4 – Pin and Connector Inspection: All edge connectors and pin headers are examined for oxidation, bent pins, and contact wear. Connector surfaces are cleaned and treated where required.
• Step 5 – Functional Bench Test: Units are powered and tested under controlled conditions prior to packaging. Only boards that pass all five stages are released for sale.

Key Features for System Maintenance

Q: How is condition confirmed before quotation?
A: Available condition, photos, test records and documentation are checked according to the requested model and sourcing channel before a formal RFQ response.
