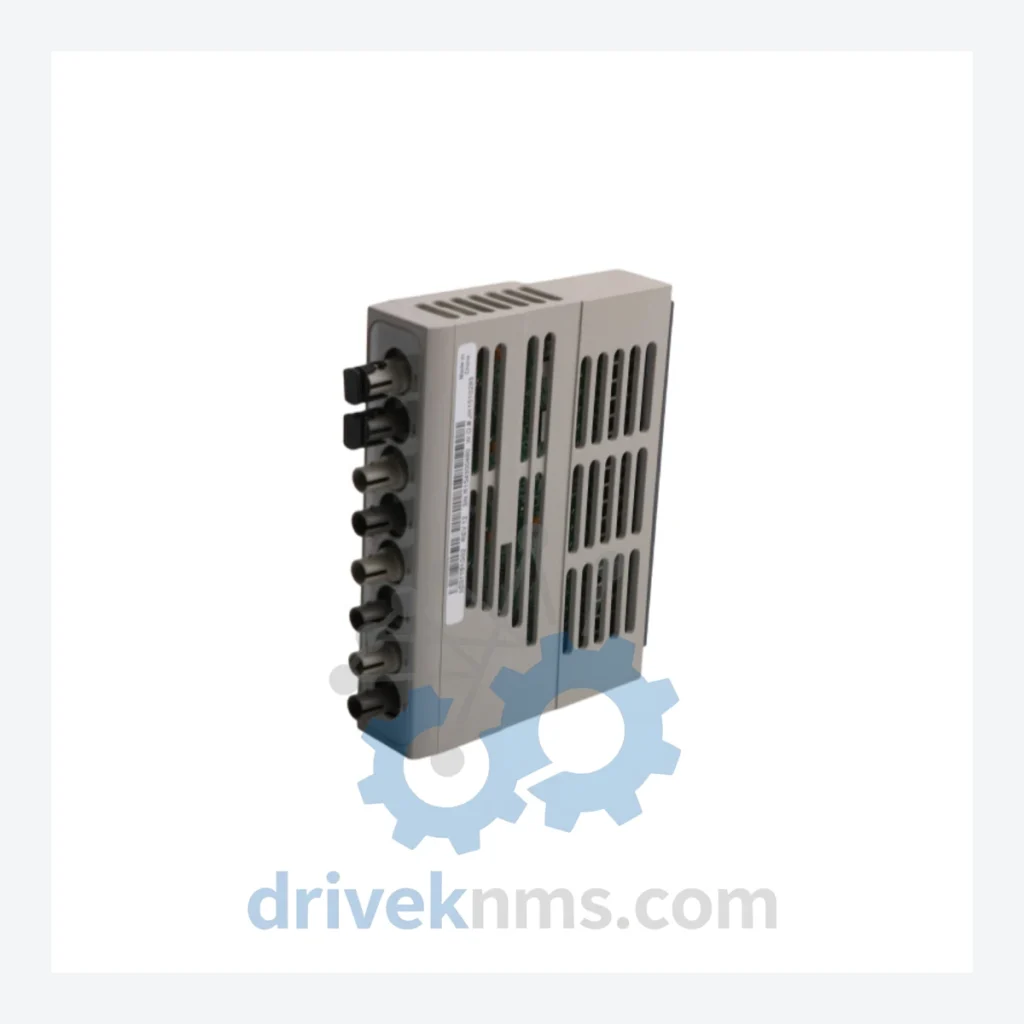

Westinghouse WDPF 1C31181G02 I/O Module

Technical Dossier

Product Details And Specifications

Westinghouse WDPF Series Technical Notes

The Westinghouse WDPF (Distributed Processing Family) DCS platform has been a foundational control architecture in global heavy industry since the early 1980s. Deployed extensively in coal-fired and nuclear power stations, petroleum refineries, chemical processing plants, and pulp & paper facilities, the WDPF system established a distributed node architecture that separated process I/O, control computation, and operator interface functions across a deterministic data highway. The 1C31181G02 is a representative I/O module within this ecosystem, designed for analog or digital signal conditioning and interfacing between field instrumentation and the WDPF data highway. Installed base units of WDPF remain operational across hundreds of facilities in North America, Europe, and Asia-Pacific, making long-term spare parts availability a critical operational requirement for plant maintenance teams.

The Evolution of WDPF Architecture

The WDPF platform was introduced by Westinghouse Electric Corporation in the early 1980s as one of the first commercially deployed distributed control systems for power generation. The original WDPF I architecture used a proprietary coaxial data highway (WDPF Highway) operating at 1 Mbit/s, with node controllers managing clusters of I/O modules. The transition to WDPF II in the late 1980s introduced enhanced node processing capability, expanded I/O density, and improved diagnostics. By the mid-1990s, Westinghouse's process control division was acquired by Emerson Electric, which subsequently integrated WDPF engineering support under the Ovation DCS product line. This transition created a long-term compatibility challenge: WDPF hardware uses proprietary backplane bus protocols and physical form factors that are not interchangeable with Ovation or any third-party DCS platform. As a result, facilities running WDPF systems that have not completed a full migration to Ovation must source original WDPF hardware for corrective and preventive maintenance. The 1C31xxx module family — including the 1C31181G02 — represents the core I/O layer of this architecture and is no longer in active production, placing all procurement into the secondary and refurbished market.

WDPF Full Catalog & Functionalities — SKU List (1C31xxx Series)

The following SKUs represent verified, commonly sourced modules within the Westinghouse WDPF 1C31xxx I/O module family. Each entry reflects a distinct hardware configuration with a defined functional role within the WDPF node architecture.

1C31181G02: Analog Input module, 16-channel, 4–20 mA signal conditioning, WDPF highway interface.
1C31116G01: Digital Output module, 16-channel, 24 VDC discrete output, relay-driven field contacts.
1C31122G01: Digital Input module, 16-channel, 24 VDC discrete input, optically isolated.
1C31129G01: Analog Output module, 8-channel, 4–20 mA current loop output, HART-compatible.
1C31142G01: Thermocouple Input module, 8-channel, J/K/T/E type, cold junction compensation.
1C31147G01: RTD Input module, 8-channel, Pt100/Pt1000, 3-wire configuration.
1C31157G01: Pulse Input module, 4-channel, frequency and totalizer functions, field power supply.
1C31161G01: Analog Input module, 8-channel, high-resolution 16-bit ADC, differential input.
1C31166G01: Digital Input/Output combination module, 8 DI + 8 DO, 24 VDC, mixed I/O node.
1C31169G01: Node Controller module, WDPF highway master, manages up to 8 I/O modules per node.
1C31174G01: Communication Adapter, WDPF to Modbus RTU gateway, serial RS-485 interface.
1C31177G01: Power Supply module, 24 VDC regulated, node-level distribution, redundancy-capable.
1C31179G01: Analog Input module, 16-channel, voltage input (±10 V), single-ended configuration.
1C31183G01: Digital Output module, 32-channel, 5 VDC TTL-level output, high-density I/O node.
1C31189G01: Analog Input module, 8-channel, 4–20 mA, with HART pass-through multiplexer.
1C31194G01: Redundant Node Controller, dual-processor failover, WDPF highway hot-standby.
1C31197G01: Sequence of Events (SOE) module, 32-channel DI, 1 ms time-stamp resolution.
1C31203G01: Fieldbus Interface module, WDPF to FOUNDATION Fieldbus H1 segment adapter.
