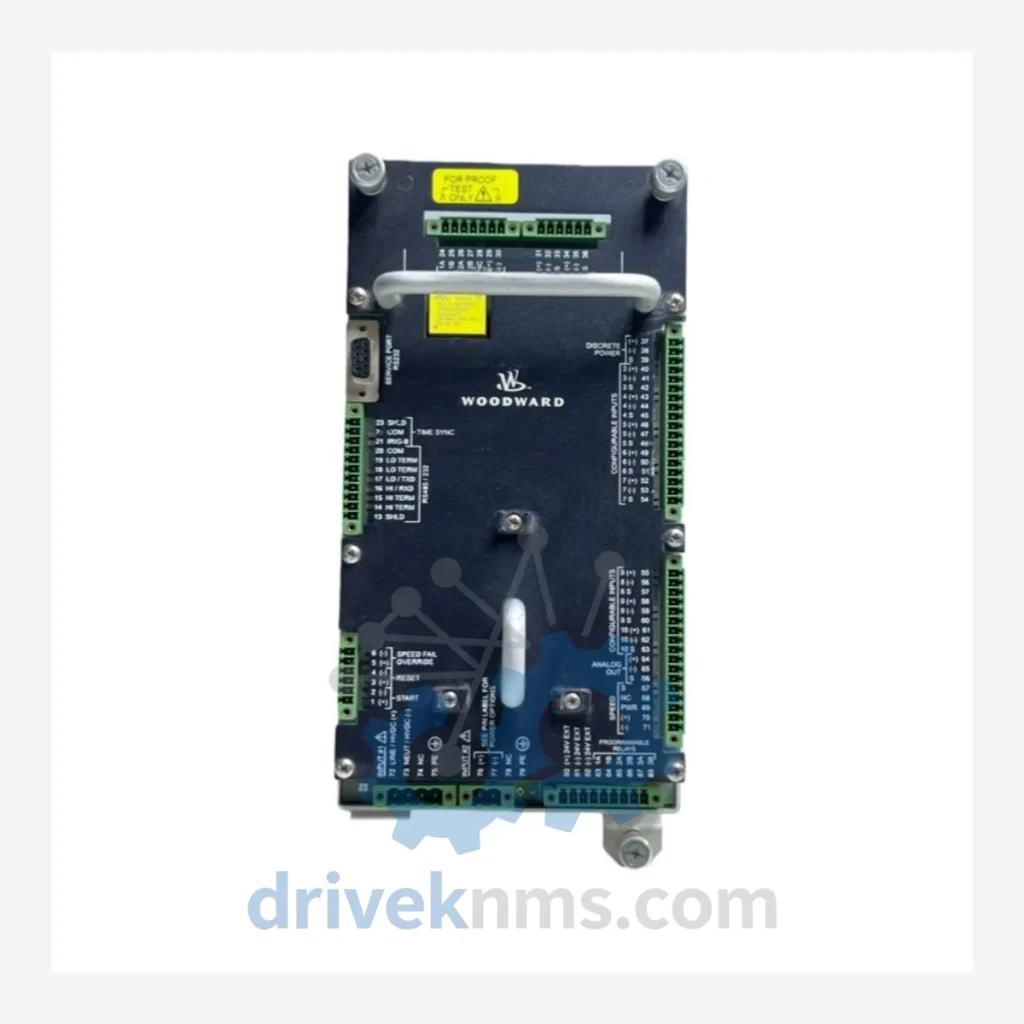

Woodward 5437-1066 Relay Bulkhead Panel – Obsolete Governor Spare Part

Technical Dossier

Product Details And Specifications

Woodward 5437-1066 Relay Bulkhead Panel – Obsolete Governor Spare Part

RFQ support for obsolete parts: Send the model number, required quantity and destination so DriveKNMS can confirm sourcing options before quotation.

Solving the Discontinued Hardware Crisis

Woodward governor systems have been installed in power generation, oil & gas compression, and marine propulsion facilities for decades. The 505 and UG series platforms in particular remain operational in plants where the cost of a control system upgrade — including new hardware, engineering hours, loop tuning, and operator retraining — is not justifiable against the remaining productive life of the driven equipment.

The 5437-1066 Relay Bulkhead Panel is a structural and functional component within these governor enclosures. It provides the physical and electrical interface for relay logic that governs speed reference, load sharing, and protective shutdown sequences. In a legacy system, this panel is not a commodity item that can be substituted with a generic equivalent. Its form factor, terminal layout, and relay mounting positions are specific to the enclosure design. Replacing it with a non-OEM alternative introduces integration risk that most plant engineers are not willing to accept on a running machine.

The decision to hold a verified spare of this assembly is, in practical terms, a decision to protect the capital value of the driven equipment it controls. A turbine or compressor that has been properly maintained and is mechanically sound should not be retired because a $X,XXX control panel is no longer available from the OEM. That is the specific problem DriveKNMS exists to solve.

Condition & Reliability Assurance

Sourcing obsolete control hardware from the secondary market carries real risk if the supplier's inspection process is not rigorous. DriveKNMS applies a 5-step quality assurance protocol to all legacy assemblies before they are offered for sale:

• Step 1 – Visual and Mechanical Inspection: Full examination of the panel frame, relay mounting hardware, terminal blocks, and wiring harness for physical damage, corrosion, or evidence of prior field repair.
• Step 2 – Electrolytic Capacitor Assessment: Where capacitors are present in associated circuitry, units are evaluated for electrolyte leakage, bulging, and ESR degradation — the primary aging failure mode in electronics stored beyond 10 years.
• Step 3 – Relay Contact Integrity Check: Relay coil resistance and contact continuity are verified. Contact surfaces are inspected for pitting or oxidation that would affect switching reliability.
• Step 4 – Firmware and Configuration Verification (where applicable): For assemblies with embedded logic or programmable elements, firmware version is documented and cross-referenced against the customer's existing system version prior to shipment.
• Step 5 – Terminal and Pin Corrosion Audit: All connector pins and terminal screws are inspected and treated. Units with corrosion beyond acceptable limits are rejected from inventory.

Key Features for System Maintenance

Q: How is condition confirmed before quotation?
A: Available condition, photos, test records and documentation are checked according to the requested model and sourcing channel before a formal RFQ response.

How do I know the unit is genuine Woodward and not a counterfeit?
All units are inspected for OEM markings, part number labels, and manufacturing date codes consistent with Woodward production standards. Documentation including photographs of the unit's identification markings is provided upon request before payment.
