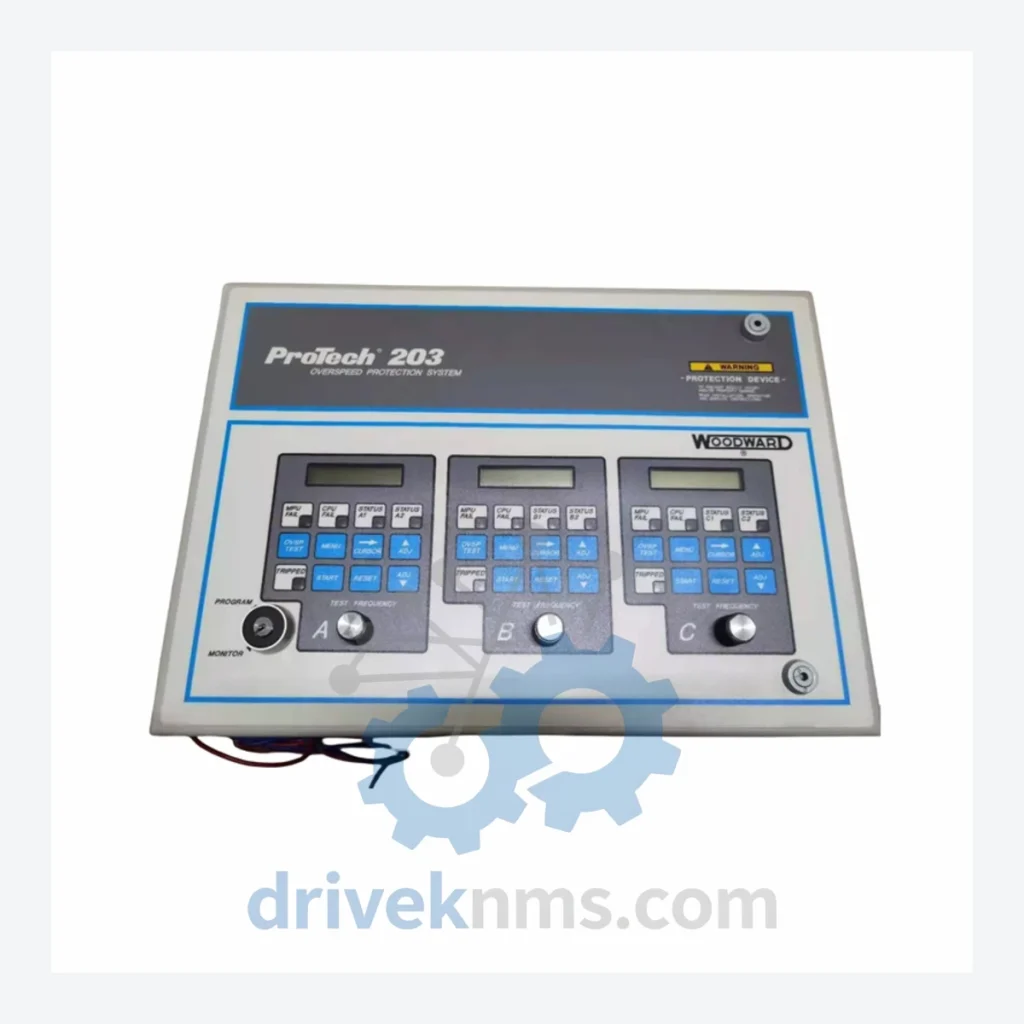

Woodward 9907-147 Control Module

Technical Dossier

Product Details And Specifications

Woodward 9907 Series Technical Notes

The Woodward 9907 Series represents one of the most widely deployed governor and control module families in global heavy industry. Installed across petrochemical refineries, nuclear power auxiliary systems, offshore platforms, and combined-cycle gas turbine (CCGT) plants, the 9907 Series provides speed governing, load sharing, and process control functions for turbine-generator sets and compressor trains. Its modular architecture—built around a common backplane and standardized I/O interface—has made it the reference platform for Woodward's industrial governor product line from the late 1980s through the 2010s. Units remain in active service at facilities with 20–40 year asset lifecycles, making spare part availability a critical operational concern.

The Evolution of 9907 Series Architecture

The 9907 Series was introduced as a successor to Woodward's earlier analog governor platforms, transitioning the product line to digital microprocessor-based control. Early variants (circa late 1980s) used 8-bit and 16-bit processors with EPROM-based firmware, communicating via proprietary serial links. Mid-generation units (early-to-mid 1990s) introduced expanded analog I/O counts, improved A/D conversion resolution (12-bit to 16-bit), and RS-232/RS-485 communication ports for SCADA integration. Later revisions added Modbus RTU support, expanded discrete I/O, and improved EMI shielding for compliance with IEC 61000 industrial electromagnetic compatibility standards.

Compatibility across sub-generations is constrained by firmware version, backplane connector pinout, and power supply voltage rail (typically 18–32 VDC). Modules from different production batches may require firmware alignment before substitution. The 9907 Series has been succeeded by Woodward's MicroNet and ProTech platforms for new installations, but the 9907 line remains supported through Woodward's authorized service network and third-party MRO suppliers for legacy fleet maintenance.

9907 Series Full Catalog & Functionalities (SKU List)

The following SKUs represent verified, commonly referenced models within the Woodward 9907 Series. Models are classified by primary function:

Control & Governor Modules

• 9907-147: Digital speed governor control module; primary CPU board for turbine speed regulation and load sharing applications.
• 9907-148: Enhanced governor module with expanded analog output channels; used in dual-fuel turbine configurations.
• 9907-149: Governor control module variant with extended temperature rating for high-ambient installations.
• 9907-150: Speed/load control module with integrated Modbus RTU communication port.
• 9907-151: Redundant governor module; designed for hot-standby configurations in critical turbine applications.
• 9907-152: Actuator driver module; provides 4–20 mA and discrete outputs to fuel actuators and inlet guide vanes.

Analog I/O Modules

• 9907-155: 8-channel analog input module; 4–20 mA and 0–10 VDC configurable per channel.
• 9907-156: 4-channel analog output module; 16-bit DAC resolution; used for setpoint transmission to field devices.
• 9907-157: Thermocouple input module; supports J, K, T, and E type thermocouples with cold-junction compensation.
• 9907-158: RTD input module; 3-wire PT100 and PT1000 compatible; used for bearing and exhaust temperature monitoring.

Digital I/O Modules

• 9907-160: 16-channel discrete input module; 24 VDC logic level; used for permissive and interlock signal acquisition.
• 9907-161: 16-channel discrete output module; relay and transistor output options; rated for 2A per channel.
• 9907-162: Combined DI/DO module; 8 inputs + 8 outputs; compact form factor for space-constrained panels.

Communication & Network Modules

• 9907-165: RS-232/RS-485 communication adapter; supports Modbus RTU and Woodward proprietary protocol.
• 9907-166: Ethernet communication module; 10/100 Mbps; Modbus TCP gateway for DCS integration.
• 9907-167: DeviceNet adapter module; used in facilities with Allen-Bradley PLC-based supervisory systems.

Power Supply Modules

• 9907-170: 24 VDC redundant power supply module; dual-input with automatic failover; 10A continuous output.
• 9907-171: 18–32 VDC wide-range input power conditioner; provides regulated backplane power for mixed-module racks.

Quality Control for the 9907 Series Range

The 9907 Series employs a multi-layer backplane bus architecture with time-critical interrupt-driven communication between the CPU module and peripheral I/O cards. Standard visual inspection and power-on testing are insufficient to validate functional integrity of these modules. DriveKNMS applies the following test protocol to all 9907 Series units prior to dispatch:

• Backplane continuity test: All edge connector pins verified against reference pinout; open circuits and shorts flagged.
• Power rail verification: 5 VDC, 12 VDC, and 24 VDC rails measured under load; ripple and noise measured with oscilloscope.
• CPU boot and firmware validation: Module powered in isolated test rack; boot sequence logged; firmware version recorded.
• Analog I/O calibration check: Input channels stimulated with calibrated signal source; output channels measured against reference load; deviation from specification documented.
• Communication port loopback test: RS-232, RS-485, and Ethernet ports tested with protocol analyzer; Modbus register read/write cycles executed.
• Thermal soak: Units operated at 50°C for 4 hours; performance parameters re-measured post-soak to identify latent thermal failures.
