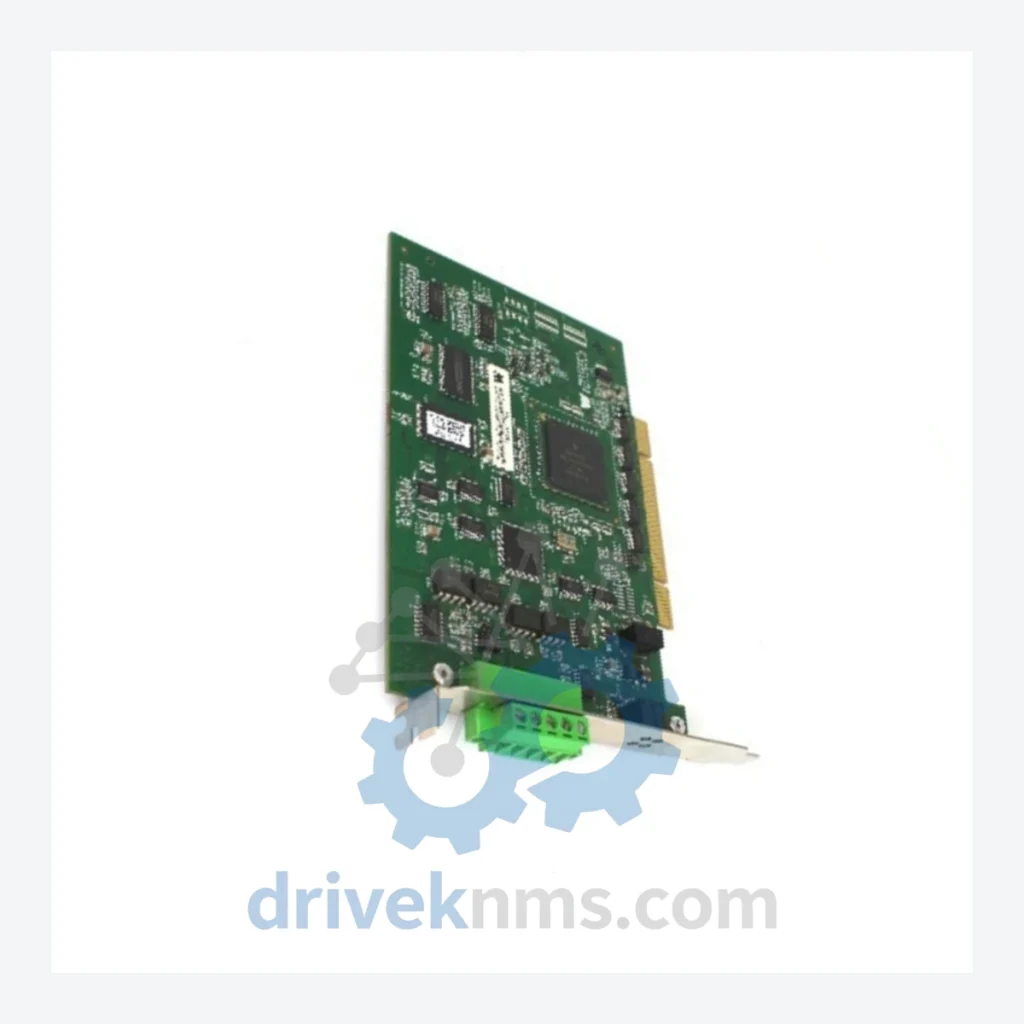

Yaskawa AB-PCI-PRT-S Modules

Technical Dossier

Product Details And Specifications

Yaskawa AB-PCI-PRT-S Series: Comprehensive Module Range and Technical Overview

The Yaskawa AB-PCI-PRT-S series represents a line of PROFIBUS communication interface boards designed for integration with Yaskawa AC drives and servo systems. These boards are widely deployed in heavy industrial environments including petrochemical plants, power generation facilities, steel mills, and refinery automation systems. The AB-PCI-PRT-S form factor provides a PCI-slot-based PROFIBUS-DP slave interface, enabling deterministic fieldbus communication between host PC-based control systems and Yaskawa drive hardware. Installations of this series are documented across global process industries where long-term drive system continuity is a maintenance priority.

The Evolution of AB-PCI-PRT-S Architecture

The AB-PCI-PRT-S communication board family was developed to address the growing demand for standardized fieldbus integration in Yaskawa drive platforms during the PROFIBUS-DP adoption era (IEC 61158). Early revisions of the board supported basic cyclic data exchange (CDX) with limited parameter access. Subsequent hardware revisions introduced expanded GSD file compatibility, improved baud rate stability up to 12 Mbps, and enhanced EMI shielding for use in high-noise industrial cabinets.

The AB3609-C revision (current reference model) reflects a mature hardware iteration with stable firmware and broad compatibility across Yaskawa G7, F7, E7, and P7 drive series. As the broader PCI bus standard has been superseded by PCIe in modern industrial PCs, the AB-PCI-PRT-S series has entered a lifecycle maintenance phase. New installations increasingly migrate to USB or PCIe-based PROFIBUS adapters, but the installed base of AB-PCI-PRT-S boards in legacy control cabinets remains substantial, driving sustained demand for replacement and spare units.

AB-PCI-PRT-S Full Catalog & Functionalities (SKU List)

The following SKUs represent the documented range of Yaskawa AB-PCI-PRT-S series communication and interface boards. Each entry reflects a distinct hardware revision or variant within the series:

AB-PCI-PRT-S AB3609-C: PROFIBUS-DP slave PCI communication board, 12 Mbps, for Yaskawa G7/F7/E7 drives
AB-PCI-PRT-S AB3609-B: Earlier hardware revision of AB3609-C; reduced GSD compatibility range
AB-PCI-PRT-S AB3609-A: Initial production revision; supports PROFIBUS-DP V0 cyclic data only
SI-P3/V: PROFIBUS-DP option card for Yaskawa V1000 series drives (board-level equivalent)
SI-P3: PROFIBUS-DP option card for Yaskawa A1000/J1000 series; DIN-rail compatible
SI-P/V: PROFIBUS-DP slave card for V1000 compact drives; compact form factor
SI-P: PROFIBUS-DP option board for E7/G7/F7 series; legacy fieldbus interface
CM092: PROFIBUS-DP communication module for Yaskawa Varispeed series
CM093: DeviceNet communication module; cross-reference for PROFIBUS migration projects
SI-N3/V: MECHATROLINK-III option card; used in parallel deployments with PROFIBUS systems
SI-EN3/V: EtherNet/IP option card for V1000; modern replacement path from PROFIBUS
SI-EM3/V: MECHATROLINK-II option card; legacy motion network interface
SI-C3/V: CANopen option card for V1000; alternative fieldbus for European installations
SI-W3/V: LONWORKS option card; niche building automation and process control deployments
SI-B3/V: CC-Link option card for V1000; Japan-domestic process control installations
PG-B3: Encoder feedback option card; used alongside PROFIBUS boards in closed-loop drive systems
PG-X3: High-resolution encoder interface card; paired with AB-PCI-PRT-S in precision applications

Sourcing Hard-to-Find & Obsolete AB-PCI-PRT-S Parts

DriveKNMS maintains a dedicated inventory program for Yaskawa AB-PCI-PRT-S series boards, including discontinued hardware revisions (AB3609-A, AB3609-B) that are no longer available through standard distribution channels. Our sourcing network covers manufacturer-surplus stock, tested pull units from decommissioned systems, and cross-compatible alternatives verified against original GSD files and drive firmware versions.

For facilities operating legacy Yaskawa drive systems with PROFIBUS-DP integration, unplanned AB-PCI-PRT-S board failures represent a critical production risk. DriveKNMS provides emergency dispatch capability for verified spare units, with pre-shipment functional testing against PROFIBUS-DP V0/V1 protocol standards. All units are supplied with documentation of test results and firmware version confirmation.

Customers requiring long-term maintenance contracts for AB-PCI-PRT-S inventory reservation are encouraged to contact our technical sales team directly to discuss consignment and buffer stock arrangements.

Quality Control for the AB-PCI-PRT-S Range

Each AB-PCI-PRT-S board processed by DriveKNMS undergoes a structured test protocol prior to dispatch:

1. Visual and Physical Inspection: Board-level inspection for capacitor condition, solder joint integrity, connector pin alignment, and PCI edge connector wear.
2. PROFIBUS-DP Protocol Verification: Each board is installed in a test PC and verified for correct GSD file recognition, slave address assignment, and cyclic data exchange at 1.5 Mbps and 12 Mbps baud rates.
3. Drive Integration Test: Where test equipment permits, boards are validated against a Yaskawa G7 or F7 drive in a live PROFIBUS-DP network segment to confirm parameter read/write and process data mapping.
4. Firmware and Revision Logging: Hardware revision code and firmware version are recorded and included with shipment documentation.
5. ESD and Packaging: All boards are packed in anti-static shielding bags with rigid protective packaging rated for international air and sea freight.
