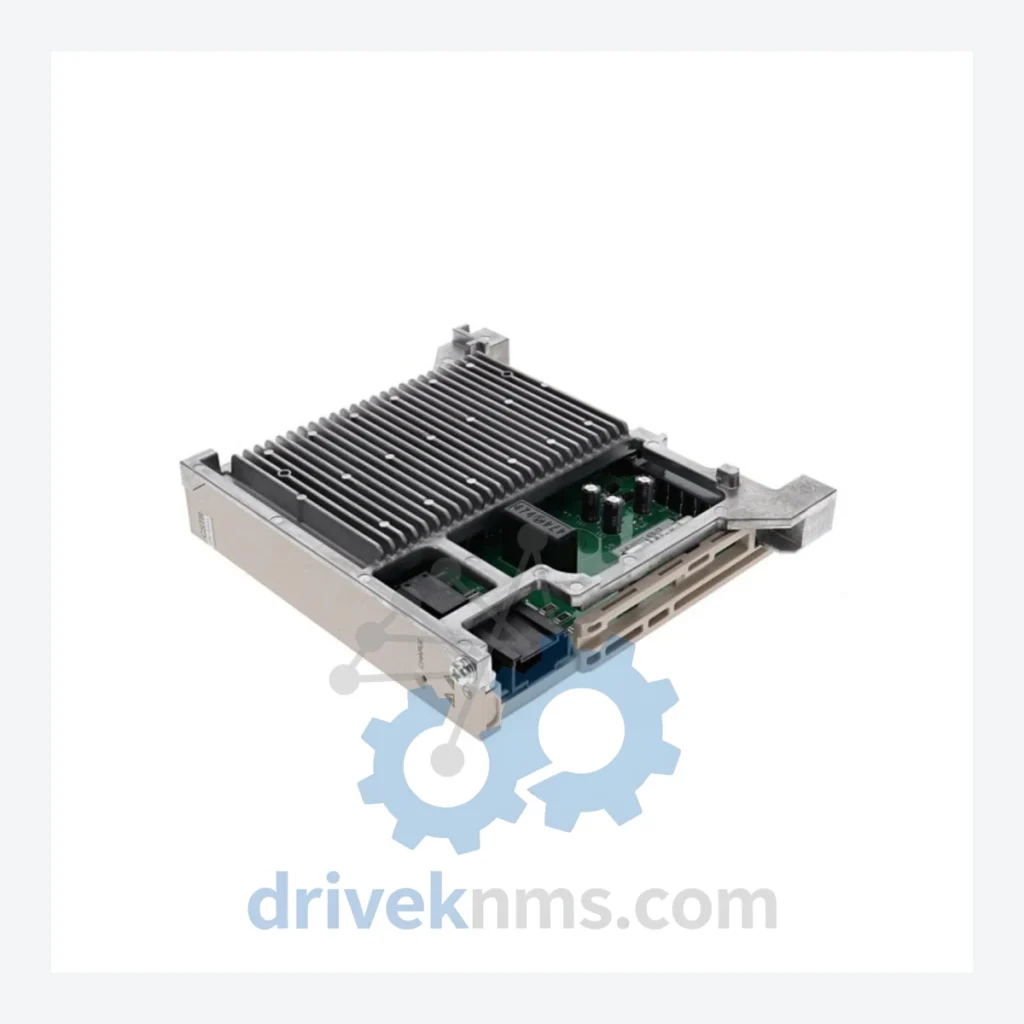

Yaskawa JZRCR-YPP01-1 Converter Module – Obsolete DX100 / YRC1000 Spare Part

Technical Dossier

Product Details And Specifications

Yaskawa JZRCR-YPP01-1 Converter Module – Obsolete DX100 / YRC1000 Spare Part

When a converter module fails inside a Yaskawa DX100 or YRC1000 robot controller, the production line does not pause politely. It stops. For facilities running multi-robot welding cells, automotive body assembly, or precision handling lines, an unplanned controller failure triggers a cascade: emergency shutdown, manual intervention, and — if the failed module cannot be sourced — a forced migration to a current-generation system. That migration carries a price tag that routinely exceeds USD $200,000 per robot cell when engineering, reprogramming, fixture modification, and revalidation costs are factored in.

The JZRCR-YPP01-1 is the converter module that sits at the power interface of the DX100 and YRC1000 controller platforms. Its discontinuation by Yaskawa means the only path to keeping an existing robot asset operational is locating genuine surplus stock. DriveKNMS maintains verified inventory of this module for facilities that cannot afford to treat a legacy controller as disposable.

Technical Specifications

Note: Electrical parameters such as input voltage range, current rating, and bus voltage specifications are not published here to prevent misapplication. Confirm compatibility against your controller's serial plate and Yaskawa documentation before ordering.

Solving the Discontinued Hardware Crisis

The DX100 and YRC1000 platforms represent a significant installed base across automotive, general manufacturing, and logistics automation. Both controllers were engineered for 10–15 year service cycles, and many facilities are now operating equipment that has reached or exceeded that window. Yaskawa's transition to the YRC1000micro and next-generation platforms has left the DX100 and early YRC1000 hardware without active parts support from the OEM.

The JZRCR-YPP01-1 converter module is not a peripheral component. It handles the AC-to-DC conversion that feeds the servo amplifier section of the controller. A failure here renders the entire controller inoperable — not a single axis, but the complete unit. Because the module is integrated into the controller's power architecture, there is no field workaround. Replacement is the only resolution.

For plant managers facing pressure to retire aging robot cells, the financial case for sourcing a replacement module is straightforward. A single JZRCR-YPP01-1 unit, properly installed, restores full controller function and extends the productive life of the robot asset by 5 to 10 years. That extension defers capital expenditure on new robot procurement, avoids the 6–18 month lead times currently affecting new industrial robot orders, and eliminates the revalidation burden that accompanies any change to a qualified production process.

Facilities operating under ISO/TS 16949, FDA process validation, or aerospace AS9100 requirements understand that replacing a qualified robot system is not simply a procurement event — it is a requalification event. Keeping the existing hardware operational with a verified spare part is, in most cases, the operationally and financially correct decision.

Condition & Reliability Assurance

Sourcing obsolete industrial hardware carries inherent risk. DriveKNMS applies a five-step inspection protocol to every JZRCR-YPP01-1 unit before it leaves our facility:

• Visual and mechanical inspection: Housing integrity, connector condition, and mounting hardware checked against OEM reference.
• Electrolytic capacitor assessment: Capacitors are the primary failure point in aged power electronics. Each unit is evaluated for bulging, leakage, and ESR deviation. Units with degraded capacitors are either recapped with equivalent-spec components or rejected.
• Pin and connector corrosion check: All interface connectors are inspected under magnification. Oxidized or corroded contacts are treated or the unit is downgraded.
• Firmware version verification: Where applicable, firmware revision is documented and disclosed to the buyer prior to shipment.
• Functional power-on test: Units are bench-tested under controlled conditions before dispatch.

Condition grade and test results are documented and provided with each shipment.

Key Features for System Maintenance

• Drop-in replacement: The JZRCR-YPP01-1 installs directly into the existing DX100 or YRC1000 controller chassis with no mechanical modification.
• No reprogramming required: Robot programs, I/O configurations, and calibration data stored in the controller are unaffected by a converter module swap. Downtime is limited to the physical replacement procedure.
• No engineering redesign: Unlike a controller platform migration, a module replacement requires no changes to teach pendants, safety circuits, external PLC interfaces, or end-of-arm tooling wiring.
• Preserves process qualification: For regulated manufacturing environments, replacing a like-for-like module does not trigger a full revalidation cycle in most quality frameworks.

Extending Automation Asset Life: A Maintenance Strategy for Plant Management

The pressure to retire aging robot systems is real, but it is frequently driven by parts unavailability rather than mechanical end-of-life. A robot mechanical unit — the arm, gearboxes, and motors — routinely outlasts its controller electronics by a decade or more. When controller electronics fail and OEM support has ended, the robot is often written off not because the arm is worn out, but because no one could locate the failed board.

A structured spare parts holding strategy changes that calculus. For facilities operating three or more DX100 or YRC1000 controllers, holding one or two JZRCR-YPP01-1 units as on-site cold spares eliminates the sourcing delay entirely. The cost of two spare modules is a fraction of one day of unplanned downtime in a high-throughput production environment.

DriveKNMS works with maintenance engineering teams to identify critical single-point-of-failure components across legacy controller platforms and build targeted spare parts inventories. This is not speculative purchasing — it is asset protection with a defined return on investment.

FAQ

What warranty applies to obsolete parts?
DriveKNMS provides a 90-day warranty on refurbished units and a 180-day warranty on new surplus units, covering functional failure under normal operating conditions. Warranty terms are confirmed in writing at the time of order.

How do I know the unit is genuine and not counterfeit?
All units are sourced from documented industrial surplus channels. Yaskawa part markings, date codes, and board revisions are verified and disclosed. We do not source from unverified secondary markets.

Can you supply multiple units for a long-term spare parts program?
Inventory levels vary. Contact us with your quantity requirement and timeline. For bulk orders, we can discuss allocation and reservation arrangements.

What if my controller has a different firmware revision than the replacement module?
Firmware revision compatibility is assessed prior to shipment. If a mismatch is identified, it is disclosed before the order is confirmed. In most DX100 and YRC1000 applications, the converter module firmware is not revision-sensitive, but this is verified case by case.

Do you ship internationally?
Yes. DriveKNMS ships globally with full export documentation. Lead time from order confirmation to dispatch is typically 3–5 business days for in-stock units.
