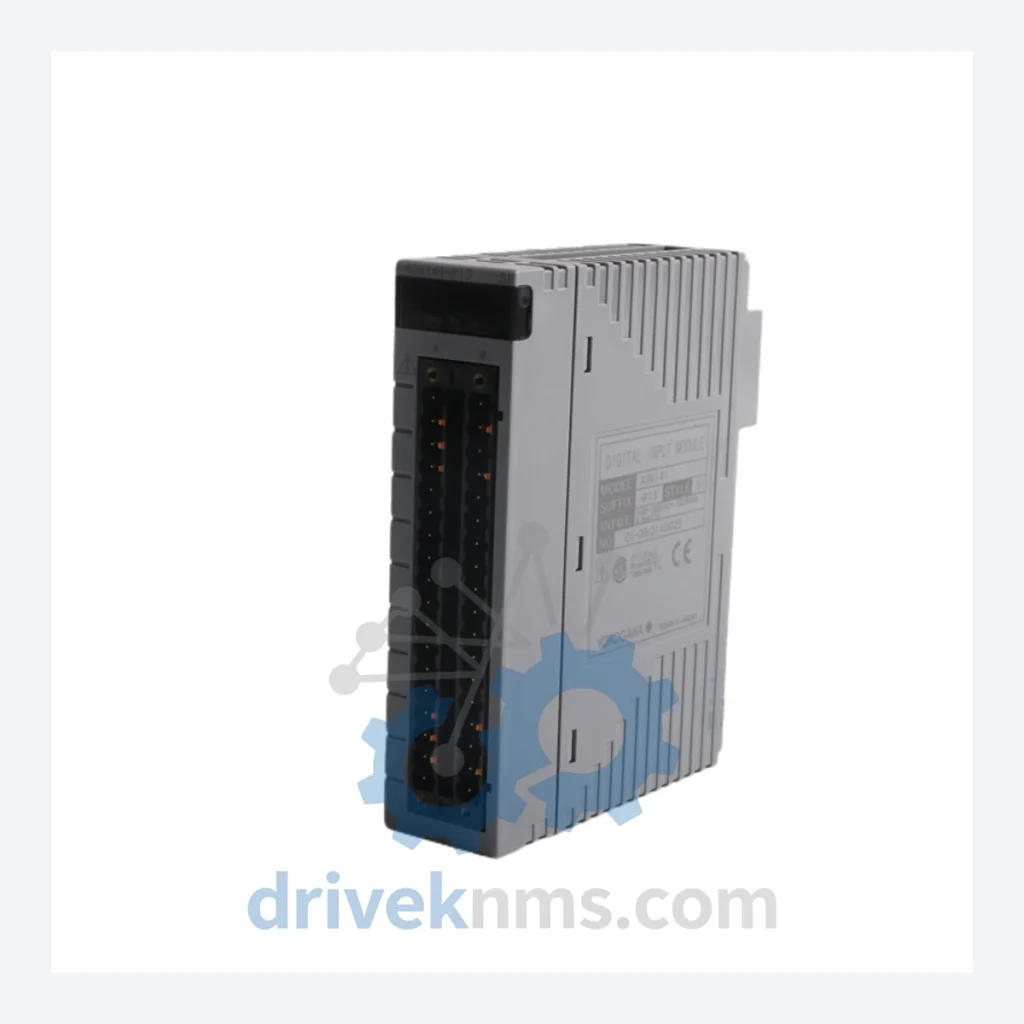

Yokogawa ADV141-P13 S1 Digital Input Module – Obsolete CENTUM Spare Part

Technical Dossier

Product Details And Specifications

Yokogawa ADV141-P13 S1 Digital Input Module – Obsolete CENTUM Spare Part

RFQ support for obsolete parts: Send the model number, required quantity and destination so DriveKNMS can confirm sourcing options before quotation.

Technical Specifications

Note: Electrical parameters for discontinued modules must be verified against the original Yokogawa engineering documentation for your specific system revision. DriveKNMS does not publish unverified specifications.

Solving the Discontinued Hardware Crisis

The Yokogawa CENTUM CS 3000 platform was the backbone of process automation across Asia-Pacific, the Middle East, and Europe for over two decades. Thousands of units remain in active service today — not because plant managers are unaware of the end-of-life status, but because the economics of migration simply do not justify the disruption. A functioning CENTUM installation, properly maintained, continues to deliver reliable process control. The business case for replacement only becomes compelling when hardware failures make continued operation impossible.

The ADV141-P13 S1 sits at a critical junction in that calculus. Digital input modules handle field signal acquisition — the first layer of process visibility. A failed module does not degrade performance gradually; it removes process data entirely. Operators lose loop visibility, safety interlocks may be compromised, and the control narrative breaks down. In a refinery or chemical plant, that sequence of events triggers emergency procedures that cost far more than the module itself.

DriveKNMS specializes in exactly this segment of the supply chain. We source, inspect, and hold physical inventory of discontinued industrial automation components so that plant engineers have a reliable fallback when OEM channels close.

Condition & Reliability Assurance

Discontinued hardware sourced from the secondary market carries inherent risk. Age, improper storage, and undisclosed prior use can render a module unreliable even if it powers on. DriveKNMS applies a five-step inspection protocol to every unit before it ships:

• Step 1 – Visual and Mechanical Inspection: Full examination of the PCB, connector pins, and housing for physical damage, corrosion, or evidence of prior repair.
• Step 2 – Electrolytic Capacitor Assessment: Aged electrolytic capacitors are the primary failure mode in legacy I/O modules. Each capacitor is evaluated for bulging, leakage, and ESR deviation from specification.
• Step 3 – Firmware Version Verification: Where accessible, firmware revision is confirmed against the compatibility matrix for CENTUM CS 3000 and CENTUM VP system versions.
• Step 4 – Pin and Contact Integrity Check: All I/O connector pins are inspected for oxidation, bending, and contact resistance. Corroded contacts are the second most common cause of intermittent field signal faults in legacy modules.
• Step 5 – Functional Power-On Test: The module is powered and subjected to a functional verification sequence before packaging.

Units that do not pass all five steps are quarantined and not offered for sale. Condition grade is documented and provided with each shipment.

Key Features for System Maintenance

The ADV141-P13 S1 is a direct, drop-in replacement for the same part number already installed in your CENTUM system. There is no re-engineering, no I/O mapping reconfiguration, and no firmware update required on the controller side. The module slots into the existing card cage, connects to the existing field wiring, and the system recognizes it without intervention.

For plants managing a fleet of CENTUM systems across multiple units or sites, pre-positioning spare ADV141-P13 S1 modules in a centralized MRO store is a straightforward risk mitigation measure. The cost of two spare modules is a fraction of one hour of unplanned production loss in most continuous process environments.

Q: How do I know the unit is genuine and not a counterfeit?
A: All units are inspected against known-good reference hardware. Yokogawa modules carry traceable markings that are verified during our intake process. We do not source from channels with unverifiable provenance.
