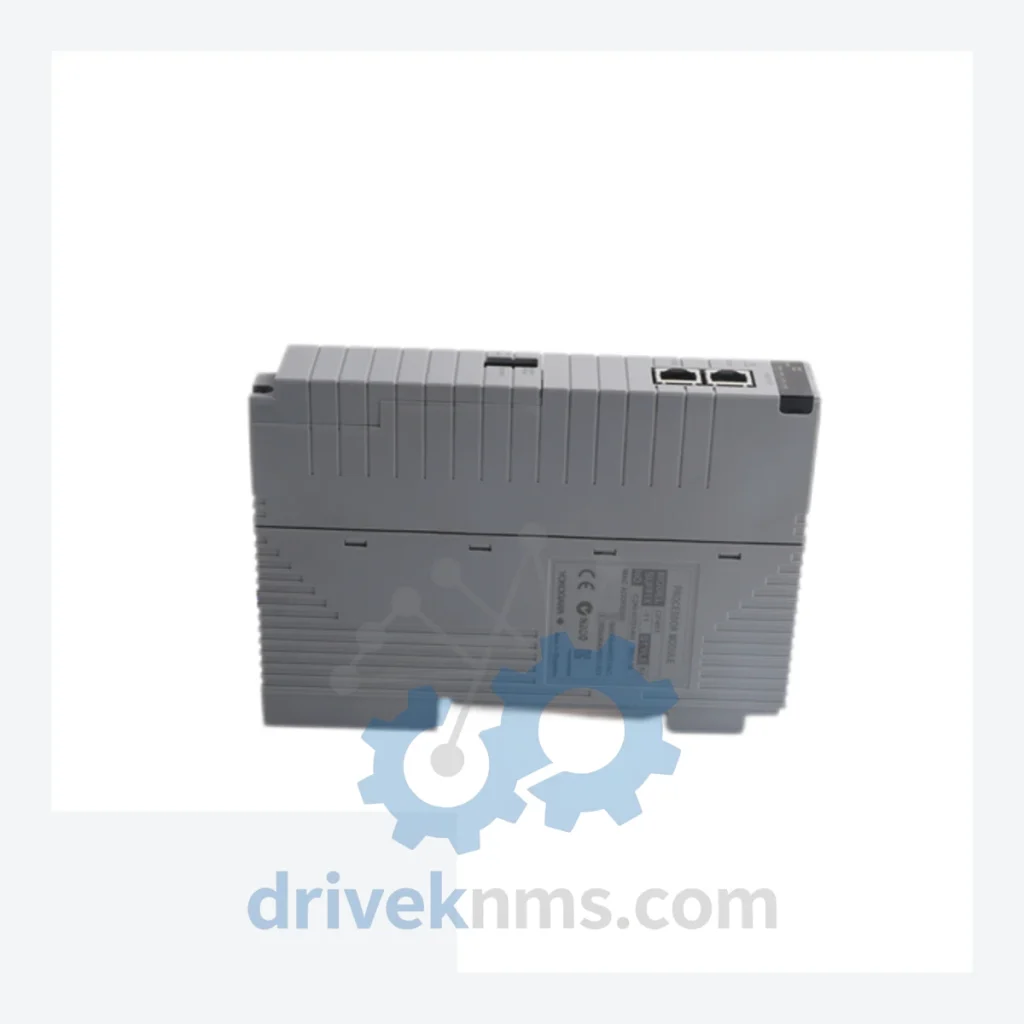

Yokogawa CENTUM CS3000 Processor Modules: CP451-11

Technical Dossier

Product Details And Specifications

Yokogawa CENTUM CS3000 Series Technical Notes

The Yokogawa CENTUM CS3000 is a field-proven Distributed Control System (DCS) platform with a global installed base spanning petrochemical complexes, nuclear power facilities, LNG terminals, crude oil refineries, and continuous process manufacturing plants. First introduced in the late 1990s as the successor to the CENTUM CS, the CS3000 architecture established Yokogawa's position as a tier-one DCS supplier across Asia-Pacific, the Middle East, and Europe. Its modular field control station (FCS) design, redundant CPU architecture, and Vnet/IP communication backbone made it the reference platform for high-availability process control through the 2000s and into the 2010s. Facilities running CS3000 represent decades of capital investment in engineering, configuration, and operator training — making long-term spare parts availability a critical operational requirement.

The Evolution of CENTUM CS3000 Architecture

The CENTUM platform lineage begins with CENTUM (1975), progressing through CENTUM-XL, CENTUM CS (1993), CENTUM CS3000 (1998), and ultimately CENTUM VP (2008) as the current-generation successor. The CS3000 introduced a Windows-based Human Interface Station (HIS), replacing proprietary operator consoles, and adopted standard Ethernet (Vnet/IP) as its primary control bus — a significant architectural shift from the earlier proprietary Vnet token-ring topology used in CENTUM CS.

The CS3000 R3 revision introduced enhanced CPU processing capacity and expanded I/O density per field control station. Compatibility between CS and CS3000 I/O modules is partial: certain analog and digital I/O cards are interchangeable at the hardware level, but firmware and node address configuration must be validated against the specific FCS generation. Migration from CS3000 to CENTUM VP is supported via Yokogawa's MIGRATEPLANT program, which preserves existing I/O wiring and field instruments while replacing the control and communication layers. Sites that have not migrated remain dependent on CS3000 spare parts, many of which entered end-of-life status between 2015 and 2022.

CENTUM CS3000 Full Catalog & Functionalities (SKU List)

Processor & CPU Modules

• CP451-11: Field Control Station processor unit, dual-redundant capable, Vnet/IP node controller for FCS0x stations.
• CP451-50: Enhanced processor unit for large-scale FCS configurations, extended tag capacity vs CP451-11.
• CP461-50: Advanced CPU module for KFCS (Compact FCS), higher scan rate, reduced footprint.
• CP401-10: Legacy processor unit for CENTUM CS FCS, partially compatible with CS3000 I/O nest hardware.

Communication & Network Modules

• EB401-1: Vnet/IP communication module, dual-port Ethernet interface for FCS-to-HIS bus.
• EB501-1: Enhanced Vnet/IP bus interface card, supports 1000 Mbps backbone.
• ALR111: FOUNDATION Fieldbus H1 communication module, 2-segment, for FF device integration.
• ALR121: PROFIBUS DP communication module, master station interface for third-party field devices.
• ALE111: HART multiplexer interface module, supports up to 16 HART device channels per card.

Analog I/O Modules

• AAI141-S00: 16-channel analog input module, 4–20 mA, HART-compatible, single-ended.
• AAI841-S00: 8-channel analog output module, 4–20 mA, HART-compatible.
• AAI143-S00: 16-channel analog input, high-density, differential input configuration.
• AAT141-S00: 8-channel thermocouple/RTD input module, multi-type sensor support.

Digital I/O Modules

• ADV151-P00: 32-channel digital input module, 24 VDC, isolated, for discrete process signals.
• ADV551-P00: 32-channel digital output module, 24 VDC transistor output, fused per group.
• ADV161-P00: 64-channel high-density digital input, compact nest format.

Power Supply Modules

• PW481-50: FCS nest power supply unit, 24 VDC output, redundant pair capable.
• PW401-11: Legacy power supply for CENTUM CS/CS3000 shared nest configurations.

Sourcing Hard-to-Find & Obsolete CENTUM CS3000 Parts

Yokogawa formally transitioned CS3000 to end-of-active-support status, with repair and replacement services progressively discontinued from 2018 onward. For facilities operating CS3000 FCS hardware beyond the OEM support window, DriveKNMS maintains a dedicated inventory of tested surplus and refurbished CS3000 modules — including processor units such as the CP451-11, I/O cards, communication adapters, and power supply assemblies.

Quality Control for the CENTUM CS3000 Range

CS3000 modules present specific test challenges due to their proprietary Vnet/IP backplane communication protocol and multi-layer PCB construction. DriveKNMS applies the following verification procedures to CS3000 inventory:

• Visual inspection: PCB trace integrity, capacitor condition, connector pin alignment, and conformal coating assessment.
• Power-on functional test: Module initialization sequence verification against known-good reference FCS bench unit.
• Backplane communication test: Vnet/IP node registration and cyclic data exchange validation for CPU and communication modules.
• I/O channel verification: Point-by-point signal injection and measurement for analog input/output modules; continuity and isolation testing for digital I/O cards.
• Burn-in cycle: Extended power-on soak period for processor and power supply modules to screen latent component failures.
• Firmware revision logging: CPU and communication module firmware versions are recorded and disclosed in the shipment documentation.
