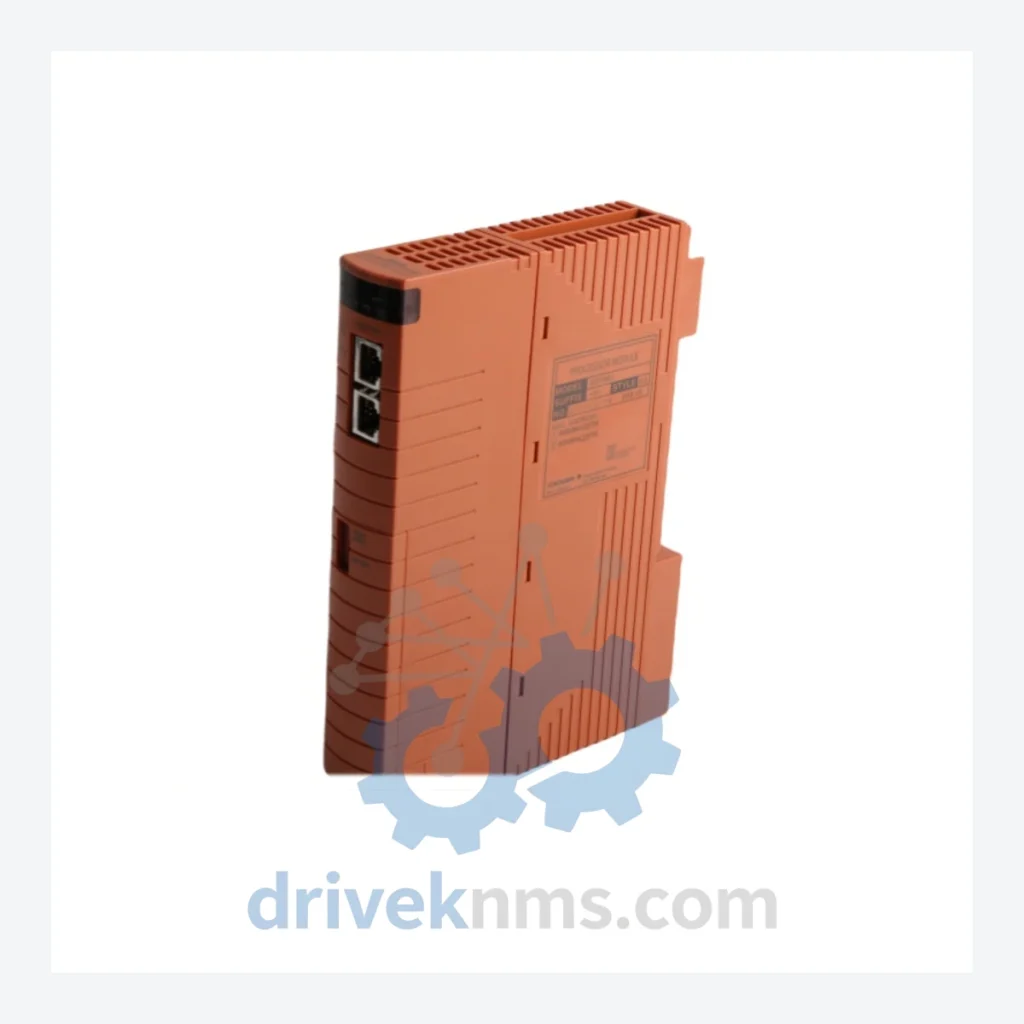

Yokogawa SCP461-11 Signal Conditioning Panel – Obsolete CENTUM CS3000 Spare Part

Technical Dossier

Product Details And Specifications

Yokogawa SCP461-11 Signal Conditioning Panel – Obsolete CENTUM CS3000 Spare Part

RFQ support for obsolete parts: Send the model number, required quantity and destination so DriveKNMS can confirm sourcing options before quotation.

Technical Specifications

Note: Electrical parameters specific to this unit are not published here to prevent misapplication. Contact our technical team for full datasheet and compatibility verification before ordering.

Solving the Discontinued Hardware Crisis

The Yokogawa CENTUM CS3000 platform was the backbone of process automation across petrochemical, power generation, pulp and paper, and pharmaceutical facilities throughout the 1990s and 2000s. Tens of thousands of these systems remain in active service globally — not because operators are unaware of newer platforms, but because the cost and risk of migration cannot be justified against current production economics.

The SCP461-11 Signal Conditioning Panel sits at a critical junction in the I/O signal chain. It conditions field signals — normalizing voltage, current, and thermocouple inputs — before they reach the field control station. A failure at this point does not degrade performance gradually; it causes abrupt loss of process visibility, triggering emergency shutdowns or, worse, undetected process drift.

No modern drop-in equivalent exists. Yokogawa's current CENTUM VP architecture uses a fundamentally different I/O bus structure. Replacing an SCP461-11 with a contemporary module requires hardware redesign, cabinet modification, and full I/O reconfiguration — a project measured in weeks and hundreds of thousands of dollars. Sourcing a verified SCP461-11 replacement unit eliminates that cost entirely.

How to extend your CENTUM CS3000 asset life by 5 to 10 years — without a full migration:

Condition & Reliability Assurance

Every SCP461-11 unit shipped by DriveKNMS passes a structured 5-stage quality process before dispatch:

• Stage 1 – Visual and Mechanical Inspection: Full examination of PCB surface, connector pins, and housing integrity. Units with physical damage, corrosion, or evidence of field repair are rejected at this stage.
• Stage 2 – Electrolytic Capacitor Assessment: Capacitors are the primary age-related failure point in legacy industrial electronics. Each unit is evaluated for capacitor bulging, leakage, and ESR deviation. Units with degraded capacitors are either recapped with specification-matched components or rejected.
• Stage 3 – Firmware Version Verification: Where applicable, firmware revision is confirmed against known compatible versions for CENTUM CS and CS3000 systems. Mismatched firmware is a documented cause of intermittent faults in legacy DCS environments.
• Stage 4 – Pin and Connector Integrity Check: All edge connectors and backplane pins are inspected for oxidation, bending, and contact resistance. Affected contacts are treated or the unit is rejected.
• Stage 5 – Functional Verification: Units are powered and tested under controlled conditions. Only units that pass all five stages are released for sale.
