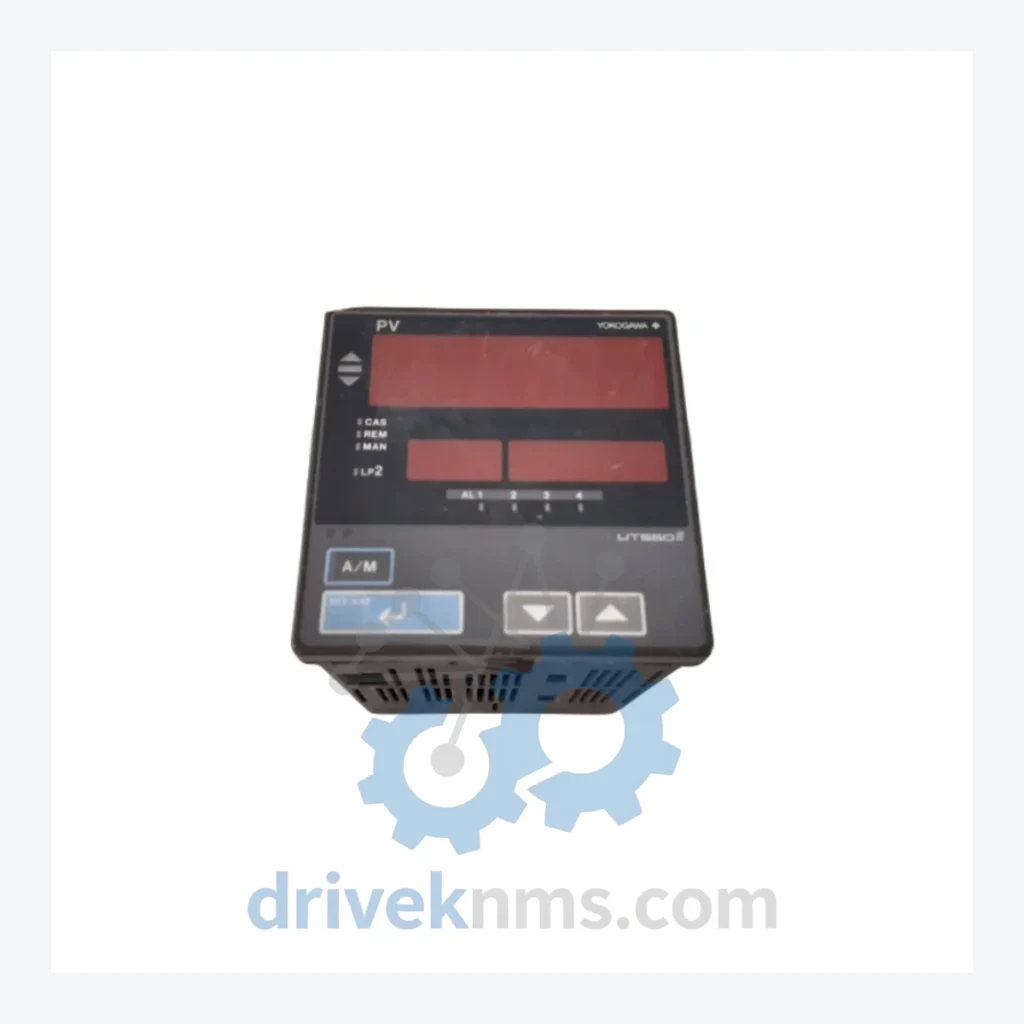

Yokogawa UT550-04 S4 Temperature Controller – Obsolete UT Series Spare Part

Technical Dossier

Product Details And Specifications

Yokogawa UT550-04 S4 Temperature Controller – Obsolete UT Series Spare Part

When a Yokogawa UT550-04 S4 fails on the plant floor, the instinct is to call the OEM — only to be told the unit was discontinued years ago and no replacement exists within the current product line. At that point, the conversation shifts from "repair cost" to "system migration cost": new DCS or PLC hardware, re-engineering of control loops, re-validation of process parameters, and weeks of production downtime. Conservative estimates for a full control system upgrade in a mid-scale process plant run from USD 500,000 to several million dollars, depending on integration complexity.

DriveKNMS maintains verified physical stock of the UT550-04 S4. For plant managers operating aging process lines, this is not a convenience — it is a direct instrument of capital protection.

Technical Specifications

Note: Electrical parameters (input range, output type, supply voltage) vary by suffix code. The suffix "-04 S4" denotes specific input/output configuration. Confirm exact wiring requirements against your original loop documentation before installation. DriveKNMS does not publish unverified electrical parameters.

Solving the Discontinued Hardware Crisis

The UT550-04 S4 was deployed extensively in process plants built during the 1990s and early 2000s. Its role is not decorative: it sits in the control loop between the thermocouple or RTD sensor and the final control element — a valve, heater, or cooling system. Remove it, and the loop goes open. Replace it with a non-identical unit, and every PID parameter must be re-tuned, re-documented, and re-validated under your site's change management protocol.

This is the core of the discontinued hardware problem. The UT550-04 S4 is not interchangeable with modern controllers without engineering intervention. Plants that have standardized on this model across multiple loops face a compounding risk: a single unit failure can cascade into a multi-loop shutdown if no verified spare is on hand.

The practical strategy adopted by experienced maintenance engineers is straightforward: identify the critical discontinued controllers in your facility, establish a minimum stock level of one to two units per loop type, and source from verified suppliers before the secondary market dries up. The window for finding genuine UT550-04 S4 units in acceptable condition narrows every year. Plants that act now pay component prices. Plants that wait pay system migration prices.

DriveKNMS specializes in locating, verifying, and supplying exactly this category of hardware — units that are no longer manufactured but remain operationally irreplaceable in the field.

Condition & Reliability Assurance

Every UT550-04 S4 unit processed by DriveKNMS passes a structured 5-step quality protocol before it is offered for sale:

• Step 1 – Visual and Mechanical Inspection: Housing integrity, terminal block condition, display glass, and connector pin alignment are checked against OEM reference standards. Units with physical damage to critical interfaces are rejected.
• Step 2 – Electrolytic Capacitor Assessment: Aging electrolytic capacitors are the primary failure mode in controllers of this vintage. Each unit is inspected for capacitor bulging, leakage, and ESR deviation. Units with degraded capacitors are either recapped with equivalent-spec components or rejected.
• Step 3 – Firmware Version Verification: The installed firmware version is recorded and cross-referenced against known stable releases for the UT550 platform. Units running unstable or unverified firmware versions are flagged.
• Step 4 – Terminal and Pin Corrosion Check: All I/O terminals, power input contacts, and communication ports are inspected under magnification for oxidation and corrosion. Affected contacts are cleaned and treated; severely corroded units are rejected.
• Step 5 – Functional Power-On Test: Where test fixtures permit, units are powered and basic display and response functions are verified. Test results are documented and available upon request.

Units are classified as New (sealed OEM stock), Refurbished (passed full 5-step protocol), or As-Is (sold for parts only, clearly labeled). Condition is disclosed in full before any transaction.

Key Features for System Maintenance

• Drop-in Replacement: The UT550-04 S4 installs directly into the existing panel cutout and wiring harness of the original unit. No mechanical modification required.
• No Reprogramming Required: PID parameters stored in the original unit can be transcribed and re-entered manually. The register structure is identical across UT550 production runs, eliminating compatibility risk.
• Avoids Engineering Rework Costs: Using an identical replacement unit means your existing loop documentation, P&ID drawings, and validation records remain valid. There is no trigger for a formal engineering change order.
• Preserves System Certification: In regulated industries (pharmaceutical GMP, food safety HACCP), substituting a non-identical controller can invalidate process validation. A like-for-like UT550-04 S4 replacement keeps your validation status intact.
• Extends Asset Life by 5–10 Years: A single verified spare, properly stored, can defer a full control system upgrade by a decade. At a replacement cost of USD 500,000 or more for a full DCS migration, the economics of maintaining a spare parts inventory are not difficult to justify.

FAQ

Q: What warranty applies to a discontinued unit?
A: DriveKNMS provides a 90-day functional warranty on all Refurbished units. New (sealed) units carry a 180-day warranty. As-Is units are sold without warranty and are clearly identified as such. Warranty covers functional failure under normal operating conditions; it does not cover damage from incorrect installation or electrical overstress.

Q: How do I confirm the unit is genuine Yokogawa and not a counterfeit?
A: All units are sourced from documented industrial decommissioning projects, authorized distributors, or verified OEM surplus channels. Serial numbers are checked against known UT550 production ranges. We do not source from unverified grey-market aggregators. Inspection photos and serial number documentation are available upon request before purchase.

Q: Should I buy more than one unit?
A: For any loop where an unplanned shutdown carries significant production or safety consequences, holding a minimum of one cold spare is standard practice. For facilities with multiple loops using the UT550-04 S4, a two-unit reserve per loop type is a defensible maintenance position. Available stock is finite and not replenishable from the OEM. Once current secondary market inventory is exhausted, sourcing becomes significantly more difficult and expensive.

Q: Can you source specific quantities for a long-term spare parts program?
A: Yes. Contact us with your required quantity and timeline. For larger orders, we can conduct a dedicated sourcing effort across our supplier network. Early engagement gives us the best chance of fulfilling the requirement at acceptable cost.
