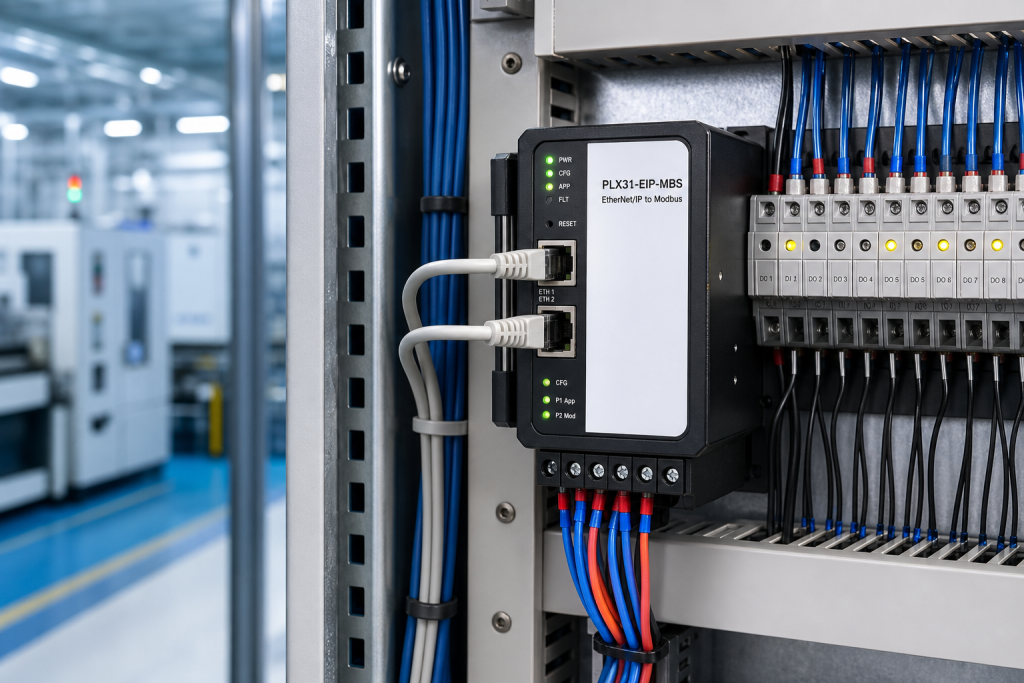

A protocol gateway can make a remote machine appear to have a PLC, I/O, or field-device failure when the real problem is mapping, serial wiring, Ethernet settings, or a lost configuration file. The ProSoft PLX31-EIP-MBS sits between EtherNet/IP and Modbus devices, so model identity is only one part of the recovery record.
DriveKNMS readers need a gateway-spare method that preserves the protocol and configuration evidence needed after the hardware is replaced. This is a procurement problem as much as a network problem.
Record both sides of the gateway
Capture gateway model, firmware, EtherNet/IP role, Modbus mode, IP settings, serial port, baud, parity, node addresses, register map, scan timing, and connected equipment.
The live ProSoft PLX31-EIP-MBS reference is a product match for an RFQ. Compare the installed label, firmware, ports, protocol roles, and configuration backup before approval.
Photograph gateway label, Ethernet ports, serial terminals, cable shields, switch ports, diagnostic LEDs, and the panel context.
A spare without the map is not a recovery
Confirm the latest gateway configuration, register map, controller tags, serial parameters, timeout behavior, diagnostic history, and restore owner. A replacement that powers up but has lost its mapping can still leave the remote I/O blind.
The related SST fieldbus board reference illustrates why another communication component must be treated as a separate rack and protocol dependency.
For obsolete or refurbished gateways, request actual-item photos, firmware, configuration scope, bench-test evidence, accessories, warranty, and dispatch timing.
Acceptance must prove data flow
After replacement, verify Ethernet connection, controller ownership, Modbus polling, register values, scaling, serial diagnostics, timeouts, alarms, failover behavior, and the approved machine test.
Mark the gateway exact, configuration restore pending, bench-tested, substitute, or engineering review required.
Keep labels, network and serial settings, register map, backup media, diagnostic captures, test values, and final acceptance together.
Build the RFQ around the installed function
A useful spare request starts with the installed function, not only a familiar brand name. State what the device does, where it sits, what it connects to, and what failure would stop, trip, blind, or slow the process. Add the exact label, revision, connector view, power information, accessory scope, condition requirement, destination, and required date. This gives procurement and engineering the same starting point.
Separate an exact replacement from a possible substitute, repair exchange, bench item, and migration candidate. These options can all be commercially useful, but they carry different approval burdens. An exact spare may support a short outage window. A substitute may need wiring changes, parameter review, software work, validation, or a production trial before it can be counted as recovery stock.
The live product references in this article are catalog matches, not permission to skip engineering checks. Compare every product page with the installed label and plant record. If a suffix, connector, voltage, protocol, firmware family, or mechanical interface differs, keep the item conditional until the responsible engineer closes that gap.
Receiving inspection should repeat the evidence used for the RFQ. Photograph the received label, packaging, connectors, terminals, mounting features, and included accessories. Record what was checked and what remains unknown. A clean-looking item is not automatically a field-ready spare, and an item that powers up is not automatically accepted by the control, safety, motion, or protection function.
Review the spare before the maintenance window, not only after a failure. Confirm that the item is physically present, packaging and accessories are intact, the backup or test procedure is available, and the responsible engineer is still named. When a substitute is considered, write down the exact gap it is intended to close and the evidence needed to approve it.
The most useful quotation response mirrors the plant record. It should state the exact model, actual condition, test scope, included hardware, lead time, warranty, and any unresolved compatibility question. Avoid a quote that quietly combines an exact part, an exchange repair, and a possible substitute under one heading.
Finally, define the acceptance owner before the part is ordered. Procurement can verify item identity and commercial terms; stores can verify packaging and label; maintenance can verify installation; and the responsible controls, safety, motion, or reliability engineer can approve functional recovery.
A good record shows why the model was selected, which evidence was checked, what remained conditional, and how the installed function was accepted.
A good quotation should also state what the supplier cannot determine from a catalog page. Unknown firmware, missing drawings, unclear terminals, incomplete accessories, and untested condition should remain open items rather than being hidden in a generic compatible statement.
Before the maintenance window, confirm the spare location, packaging, accessory scope, backup media, test equipment, and named decision owner today.
Record the final decision in the asset file with the installed model, product match, evidence reviewed, unresolved risks, test result, and approval date. This gives the next engineer a faster starting point and prevents procurement from repeating an uncertain model search today.
FAQ
What must match on a PLX31-EIP-MBS spare?
Match protocol roles, firmware, Ethernet and serial ports, electrical settings, register map, diagnostics, and connected equipment.
Can any EtherNet/IP gateway replace it?
Only after protocol behavior, serial wiring, mapping, timing, firmware, and controls approval are checked.
What should the RFQ include?
Send gateway and panel labels, Ethernet and serial photos, configuration status, condition, test scope, and deadline.
What proves gateway recovery?
Ethernet ownership, Modbus polling, correct values, scaling, diagnostics, timeout behavior, alarms, and approved machine testing.
Send DriveKNMS the gateway label, Ethernet and serial photos, configuration backup status, connected controller, protocol map, and deadline. We can help prepare a focused gateway RFQ.
