Allen-Bradley FLEX I/O Modules - 1797-IBN16

Technical Dossier

Product Details And Specifications

Allen-Bradley FLEX I/O Series: Comprehensive Module Range and Technical Overview

The Allen-Bradley FLEX I/O platform (catalog prefix 1794 and 1797) is a distributed I/O system designed for integration with ControlLogix, CompactLogix, SLC 500, and PLC-5 controllers via adapter modules. Deployed across global heavy industry sectors — including petrochemical refineries, nuclear power auxiliary systems, offshore platforms, and continuous-process chemical plants — FLEX I/O occupies a critical position in legacy and hybrid automation architectures. Its modular backplane design allows field-side I/O expansion without controller replacement, making it the preferred distributed I/O standard in installations with 10–20+ year operational lifecycles. Installed base estimates place FLEX I/O in tens of thousands of active facilities worldwide, with a significant proportion running on original hardware from the mid-1990s through the 2010s.

📩 Looking for a specific FLEX I/O model? Send your parts list to: sale@driveknms.com

The Evolution of FLEX I/O Architecture

The FLEX I/O platform was introduced by Rockwell Automation in the early 1990s under the 1794 catalog series, targeting distributed I/O applications where panel space and wiring cost were primary constraints. The original architecture used a proprietary backplane bus with a dedicated adapter module (e.g., 1794-ADN for DeviceNet, 1794-AENT for EtherNet/IP) to interface with the host controller network.

The 1797 sub-series (FLEX Ex I/O) extended the platform into intrinsically safe, Zone 1/Zone 2 hazardous area applications, complying with ATEX and IECEx standards. This variant uses isolated barriers and is rated for use in explosive atmospheres — a requirement in upstream oil & gas and chemical processing environments.

Key architectural transitions across the platform lifecycle:

• Phase 1 (1994–2000): Initial 1794 series with DH+, RIO, and DeviceNet adapters. Discrete and analog I/O modules introduced.
• Phase 2 (2001–2008): EtherNet/IP adapter (1794-AENT) introduced. Expanded analog range, thermocouple and RTD modules added. 1797 Ex I/O series launched.
• Phase 3 (2009–2016): FLEX I/O integrated into Studio 5000 / RSLogix 5000 ecosystem. Enhanced diagnostics modules released. Selective discontinuation of older adapter variants begins.
• Phase 4 (2017–present): Rockwell transitions strategic focus to FLEX 5000 (1794-L series) and Compact 5000 I/O. Legacy 1794/1797 modules enter end-of-life or limited-availability status. Aftermarket sourcing becomes primary supply channel for maintenance operations.

Compatibility note: 1794 and 1797 modules are not cross-compatible at the backplane level. Each requires its own adapter and terminal base (e.g., 1794-TB3, 1794-TB32, 1797-TB3). Mixing series on the same backplane segment is not supported.

FLEX I/O Full Catalog & Functionalities (SKU List)

The following catalog numbers represent verified, commonly stocked modules within the Allen-Bradley FLEX I/O 1794 and 1797 series. Classified by functional category:

Discrete Input Modules

• 1794-IB16: 16-point 24VDC sink input module, standard density discrete input.
• 1794-IB32: 32-point 24VDC sink input, high-density discrete input for space-constrained panels.
• 1794-IM16: 16-point 120VAC input module for legacy AC field device integration.

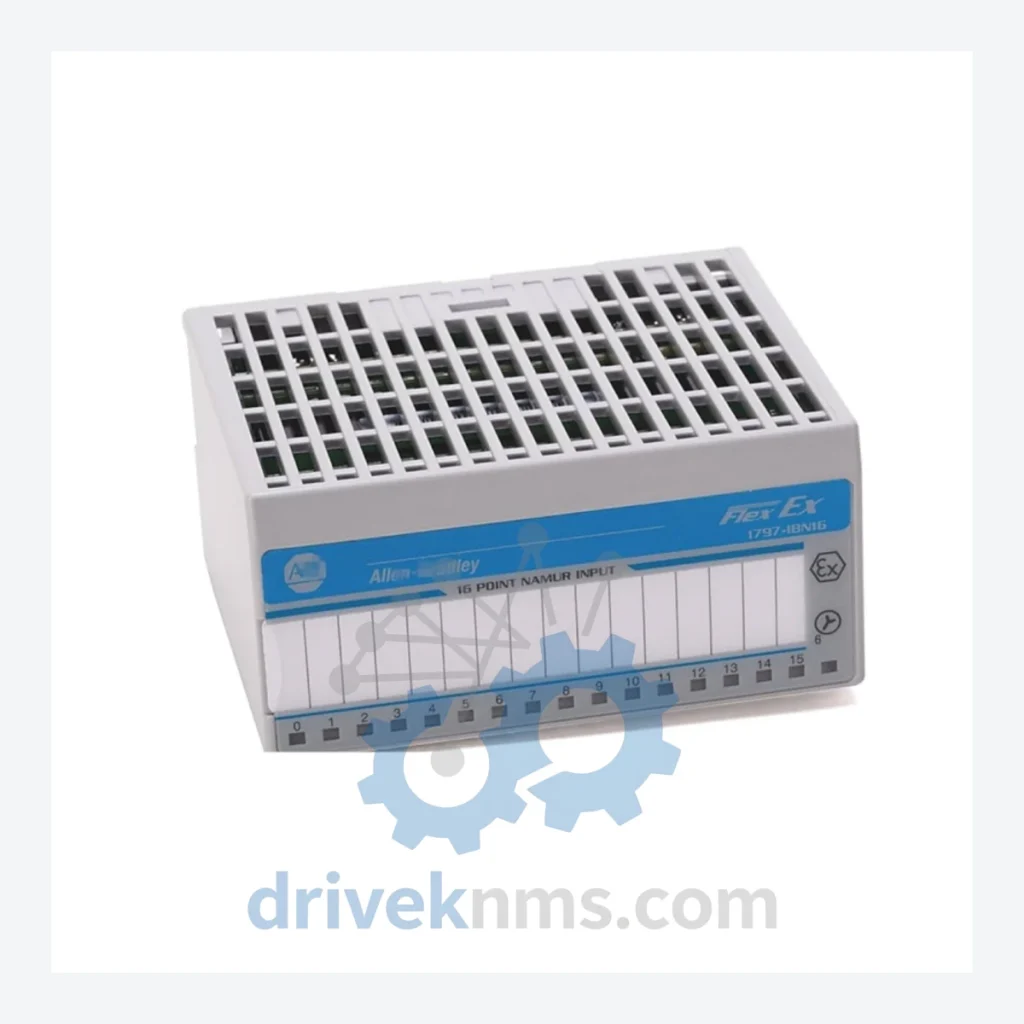

• 1797-IBN16: 16-point 24VDC non-isolated input, FLEX Ex I/O intrinsically safe variant for Zone 1/2 hazardous areas.

Discrete Output Modules

• 1794-OB16: 16-point 24VDC source output module, standard discrete output.
• 1794-OB32: 32-point 24VDC source output, high-density discrete output.
• 1794-OW8: 8-point relay output module, 120/240VAC or 24VDC, for high-voltage switching applications.
• 1794-OA16: 16-point 120VAC output module for AC-driven actuators and solenoids.
• 1797-OBN8: 8-point 24VDC non-isolated output, FLEX Ex I/O intrinsically safe variant.

Analog Input Modules

• 1794-IE8: 8-channel analog input, 4–20mA / 0–10V configurable, standard process signal acquisition.
• 1794-IE4XOE2: 4-channel analog input / 2-channel analog output combination module.
• 1794-IT8: 8-channel thermocouple input module, supports J, K, T, E, R, S, B type thermocouples.
• 1794-IR8: 8-channel RTD input module, supports Pt100, Pt1000, Ni120 resistance temperature devices.
• 1797-IE8: 8-channel analog input, FLEX Ex I/O intrinsically safe variant for hazardous area process measurement.

Analog Output Modules

• 1794-OE4: 4-channel analog output, 4–20mA / 0–10V, for control valve and positioner applications.
• 1794-OE8: 8-channel analog output, high-channel-count process control output.

Adapter / Communication Modules

• 1794-AENT: EtherNet/IP adapter, primary network interface for ControlLogix and CompactLogix integration.
• 1794-ADN: DeviceNet adapter for legacy DeviceNet scanner-based architectures.
• 1794-ACN15: ControlNet adapter, 1.5Mbps, for ControlNet-based distributed I/O topologies.

Power Supply / Terminal Base Accessories

• 1794-PS13: 24VDC power supply module for FLEX I/O backplane power distribution.
• 1794-TB3: 3-wire terminal base, standard wiring interface for 1794 series I/O modules.
• 1794-TB32: 32-point terminal base for high-density module variants.

Sourcing Hard-to-Find & Obsolete FLEX I/O Parts

A substantial portion of the Allen-Bradley FLEX I/O catalog — particularly 1794 modules manufactured prior to 2010 and the majority of the 1797 Ex I/O series — has entered end-of-life or limited-availability status through Rockwell Automation’s authorized distribution network. Lead times through standard channels for obsolete catalog numbers routinely exceed 26–52 weeks, or result in no-quote responses.

DriveKNMS maintains a dedicated inventory program for legacy FLEX I/O modules, sourced through certified secondary market channels. Our procurement scope covers:

• Discontinued 1794 discrete and analog modules no longer listed in Rockwell’s active catalog.
• 1797 Ex I/O series modules with ATEX/IECEx certification documentation.
• Adapter modules (1794-AENT, 1794-ADN, 1794-ACN15) required for network topology maintenance.
• Terminal bases and backplane accessories essential for module replacement without full panel redesign.

For facilities operating FLEX I/O systems beyond their original design life, DriveKNMS provides lifecycle extension support: verified-functional surplus stock, traceability documentation, and technical cross-reference to identify compatible replacement modules where direct substitution is not available.

Quality Control for the FLEX I/O Range

FLEX I/O modules present specific test challenges due to their backplane bus architecture and network adapter dependency. DriveKNMS applies a structured verification protocol to all FLEX I/O inventory:

• Backplane continuity test: Each module’s backplane connector is inspected for pin integrity and bus signal continuity prior to functional testing.
• Functional I/O verification: Discrete modules are tested under live 24VDC or 120VAC field simulation. Analog modules are verified across the full 4–20mA and 0–10V signal range using calibrated signal sources.
• Adapter communication test: Adapter modules (1794-AENT, 1794-ADN) are bench-tested with a live controller to confirm network enumeration, I/O tree population, and data exchange.
• Thermocouple/RTD module calibration check: 1794-IT8 and 1794-IR8 modules are verified against reference temperature inputs across all supported sensor types.
• Visual and component inspection: All modules undergo inspection for capacitor condition, relay contact wear (OW8), and conformal coating integrity on PCB assemblies.
• Firmware version logging: Where accessible, firmware revision is recorded and cross-referenced against Rockwell’s compatibility matrix for the target controller platform.
