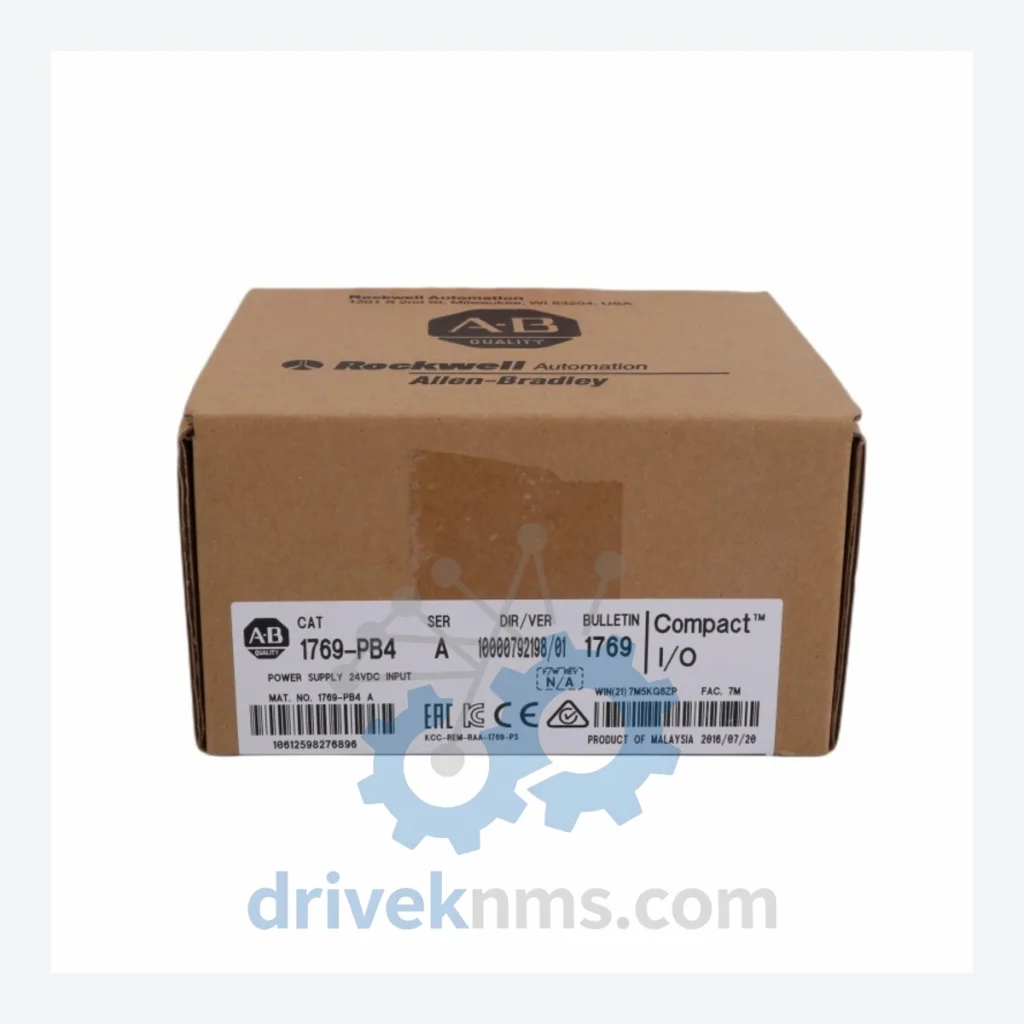

Allen-Bradley 1769 Compact I/O Modules – 1769-PB4

Technical Dossier

Product Details And Specifications

Allen-Bradley 1769 Compact I/O Series Technical Notes

The Allen-Bradley 1769 Compact I/O platform is one of Rockwell Automation's most widely deployed modular I/O systems, installed across global heavy industry sectors including petrochemical refineries, nuclear power auxiliary systems, offshore oil & gas platforms, pulp and paper mills, and automotive assembly lines. Designed to operate in conjunction with CompactLogix controllers (1769-L series), the 1769 bus architecture supports distributed I/O expansion with deterministic scan times and high-density signal handling. Its compact DIN-rail form factor and standardized backplane connector system have made it the default I/O infrastructure for mid-range process and discrete control applications since its introduction in the early 2000s. Installed base estimates place the 1769 series among the top three most common I/O platforms in North American industrial facilities, with significant penetration in EMEA and Asia-Pacific markets.

The Evolution of 1769 Compact I/O Architecture

The 1769 platform was introduced by Rockwell Automation as a successor to the SLC 500 fixed I/O architecture, targeting applications that required modular expansion without the footprint of a full ControlLogix 1756 chassis. The original 1769-L20 and 1769-L30 CompactLogix controllers established the local bus standard, supporting up to 8 expansion modules on a single bank. Subsequent firmware revisions extended the module count to 30 across multiple banks using 1769-BOOM expansion cables.

Key architectural milestones include the introduction of HART-enabled analog modules (1769-IF4H, 1769-OF4H) for process industries, the addition of high-speed counter modules (1769-HSC) for encoder feedback, and the integration of DeviceNet and EtherNet/IP adapter modules that bridged the 1769 bus to plant-wide networks. The platform transitioned through multiple controller generations — from the original L20/L30 to the L16ER, L18ER, L24ER, L27ERM, L30ER, L33ER, and L36ERM — each maintaining backward compatibility with existing 1769 I/O modules. As of 2024, Rockwell Automation has designated several early 1769 controller variants as End of Life (EOL), while the I/O module catalog remains active. This creates a sustained demand for spare 1769 I/O modules to support legacy controller installations through their remaining operational life cycles.

1769 Compact I/O Full Catalog & Functionalities (SKU List)

Power Supplies

• 1769-PB4: 24VDC bus power supply, 4A output, right-side mount, for 1769 local I/O bank
• 1769-PA4: 120/240VAC input bus power supply, 4A output, right-side mount
• 1769-PB2: 24VDC bus power supply, 2A output, compact footprint for small bank configurations
• 1769-PA2: 120/240VAC input bus power supply, 2A output, right-side mount

Digital Input Modules (DI)

• 1769-IQ16: 16-point 24VDC sinking/sourcing digital input module
• 1769-IQ32: 32-point 24VDC digital input, high-density, dual-slot form factor
• 1769-IQ6XOW4: 6-point 24VDC input / 4-point relay output combination module
• 1769-IM12: 12-point 120VAC digital input module for legacy AC field devices
• 1769-IQ16F: 16-point fast 24VDC digital input, 0.1ms filter, for high-speed discrete sensing

Digital Output Modules (DO)

• 1769-OB16: 16-point 24VDC sourcing digital output, 0.5A per point
• 1769-OB32: 32-point 24VDC sourcing digital output, high-density dual-slot
• 1769-OW16: 16-point relay output module, Form A contacts, 2A per point
• 1769-OA16: 16-point 120/240VAC triac output module for AC load switching

Analog Input Modules (AI)

• 1769-IF4: 4-channel analog input, 4–20mA / 0–10V selectable, 16-bit resolution
• 1769-IF8: 8-channel analog input, voltage/current selectable, single-ended or differential
• 1769-IF4H: 4-channel HART-enabled analog input for smart field instrument integration
• 1769-IT6: 6-channel thermocouple/mV input module, supports J/K/T/E/R/S/B types
• 1769-IR6: 6-channel RTD/resistance input module, supports Pt100/Pt1000/Ni/Cu

Analog Output Modules (AO)

• 1769-OF4: 4-channel analog output, 4–20mA / 0–10V selectable, 16-bit resolution
• 1769-OF4H: 4-channel HART-enabled analog output for smart valve positioner integration
• 1769-OF2: 2-channel analog output, voltage/current, for cost-sensitive loop control

Specialty & Communication Modules

• 1769-HSC: High-speed counter module, 4 counters, up to 1MHz input frequency, encoder support
• 1769-SM2: 2-axis stepper/servo motion module for coordinated axis control
• 1769-SDN: DeviceNet scanner adapter for 1769 bus to DeviceNet network bridge
• 1769-ASCII: ASCII serial interface module, RS-232/RS-485, for barcode readers and serial devices

Quality Control for the 1769 Compact I/O Range

The 1769 backplane uses a proprietary parallel bus connector that is sensitive to pin damage, oxidation, and mechanical stress from repeated module insertion cycles. DriveKNMS applies a structured inspection and functional test protocol to all 1769 modules prior to dispatch:

• Visual inspection of backplane connector pins under 10x magnification; pins are cleaned and re-tensioned where required
• Functional power-on test using a 1769-L24ER CompactLogix controller with RSLogix 5000 / Studio 5000 diagnostic routines
• For digital I/O modules: point-by-point signal injection and verification across all channels at rated voltage and current
• For analog modules: calibration verification against NIST-traceable reference instruments; 4–20mA loop accuracy confirmed to ±0.1% of full scale
• For HART modules (1769-IF4H, 1769-OF4H): HART communication handshake verified using a HART 475 field communicator
• Thermal soak test at 55°C for 2 hours to screen latent component failures
• Final firmware revision check and documentation of module revision level prior to packaging

Q: How is condition confirmed before quotation?
A: Available condition, photos, test records and documentation are checked according to the requested model and sourcing channel before a formal RFQ response.
