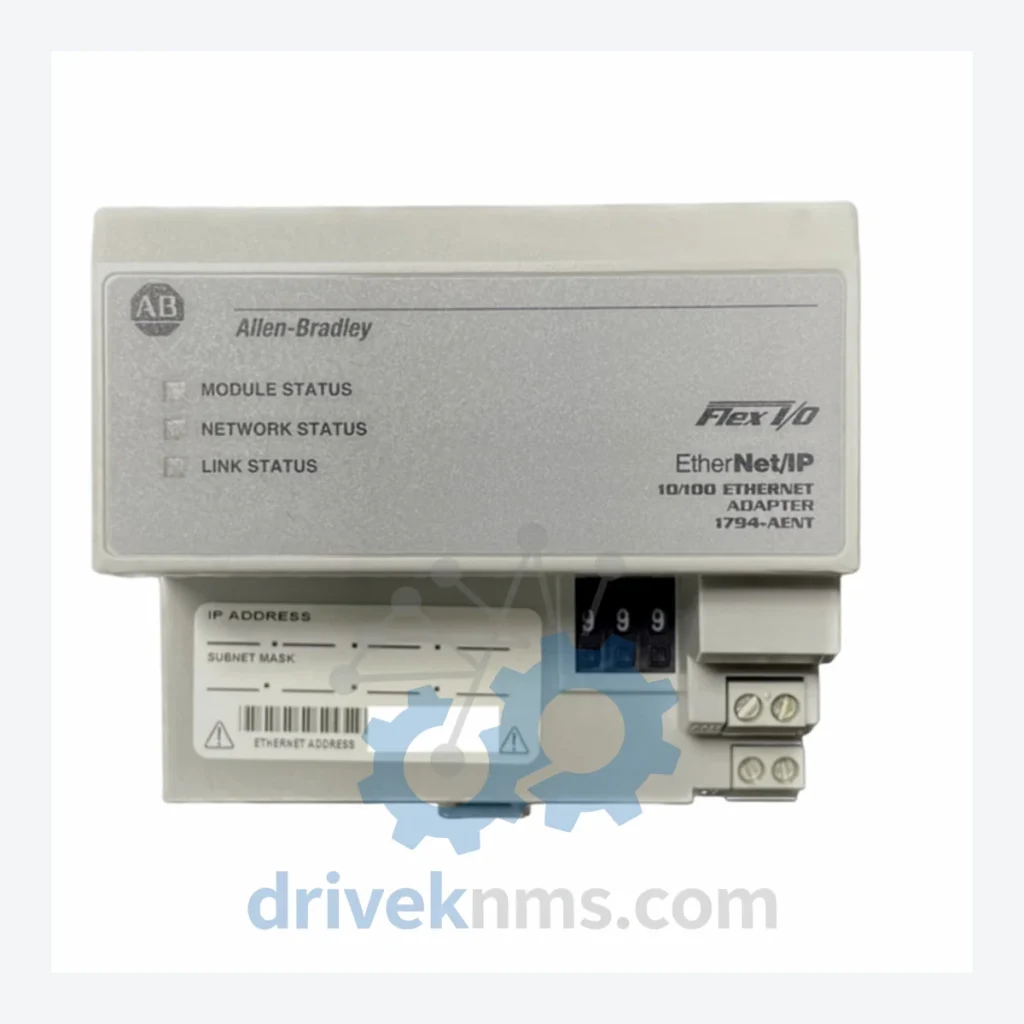

Allen-Bradley 1794 FLEX I/O Modules – 1794-AENT

Technical Dossier

Product Details And Specifications

Allen-Bradley 1794 FLEX I/O Series Technical Notes

The Allen-Bradley 1794 FLEX I/O platform, developed by Rockwell Automation, is one of the most widely deployed distributed I/O systems in global heavy industry. Installed across petrochemical refineries, nuclear power facilities, chemical processing plants, and continuous manufacturing lines, the 1794 series is engineered for high-density, rail-mounted I/O distribution in environments where reliability and backplane integrity are non-negotiable. Its modular architecture allows field engineers to configure analog, digital, and specialty I/O on a shared terminal base without rewiring, making it a standard reference design in DCS and PLC hybrid architectures worldwide. The platform supports multiple communication adapters — DeviceNet, ControlNet, EtherNet/IP, PROFIBUS, and Remote I/O — enabling integration into both legacy and modern control networks.

The Evolution of 1794 FLEX I/O Architecture

The 1794 FLEX I/O series was introduced in the mid-1990s as Rockwell Automation's answer to distributed I/O demands in process-intensive industries. The original architecture centered on a passive terminal base (e.g., 1794-TB3) onto which I/O modules snap, sharing a common backplane bus. Early adapter generations supported Allen-Bradley's proprietary Remote I/O (RIO) protocol via the 1794-ASB, enabling integration with legacy PLC-5 and SLC 500 controllers.

As industrial Ethernet matured, Rockwell introduced the 1794-AENT (EtherNet/IP) and 1794-ACN15 (ControlNet) adapters, allowing FLEX I/O nodes to participate in modern CIP-based networks. The 1794-AENT specifically supports 100 Mbps full-duplex communication, Class 1 cyclic and Class 3 explicit messaging, and is compatible with Logix5000 controllers including ControlLogix and CompactLogix families. Later revisions added web server diagnostics and enhanced LED fault isolation.

The series has entered a mature/end-of-life phase for several modules. Rockwell Automation has issued Product Discontinuation Notices (PDN) for select 1794 adapters and I/O modules, with recommended migration paths toward the 1734 POINT I/O and 5069 Compact I/O platforms. However, installed base volumes in long-lifecycle industries (refining, nuclear, water treatment) ensure continued demand for 1794 spare parts well into the 2030s.

1794 FLEX I/O Full Catalog & Functionalities (SKU List)

Communication Adapters

• 1794-AENT: EtherNet/IP adapter, 100 Mbps, Class 1/3 CIP messaging, web diagnostics
• 1794-ACN15: ControlNet adapter, 1.5 Mbps, redundant media capable
• 1794-ADN: DeviceNet adapter, Group 2 slave, 125/250/500 kbps
• 1794-ASB: Remote I/O adapter, legacy PLC-5/SLC 500 integration
• 1794-APBDPV1: PROFIBUS DP-V1 adapter, up to 12 Mbps slave node

Digital Input Modules

• 1794-IB16: 16-channel 24VDC digital input, sink/source compatible
• 1794-IB32: 32-channel 24VDC digital input, high-density configuration
• 1794-IA16: 16-channel 120VAC digital input, isolated groups
• 1794-IV16: 16-channel 10–30VDC TTL-compatible digital input

Digital Output Modules

• 1794-OB16: 16-channel 24VDC digital output, 0.5A per point, source type
• 1794-OB32: 32-channel 24VDC digital output, high-density, 0.25A per point
• 1794-OA16: 16-channel 120/240VAC digital output, triac isolated
• 1794-OW8: 8-channel relay output, Form A contacts, 2A per point

Analog Input Modules

• 1794-IE8: 8-channel analog input, 4–20mA / 0–20mA, 12-bit resolution
• 1794-IE4XOE2: 4-channel analog input + 2-channel analog output combo, 4–20mA
• 1794-IR8: 8-channel RTD input, supports PT100/PT1000/Ni, 16-bit resolution
• 1794-IT8: 8-channel thermocouple input, types J/K/T/E/R/S/B, 16-bit

Analog Output Modules

• 1794-OE4: 4-channel analog output, 4–20mA or 0–10VDC selectable, 12-bit
• 1794-OE8H: 8-channel analog output, 4–20mA, HART pass-through capable

Terminal Bases & Power

• 1794-TB3: 3-wire terminal base, standard field wiring interface
• 1794-TB3S: 3-wire terminal base with shield termination bar
• 1794-PS13: 24VDC power supply, 1.3A, DIN rail mount for FLEX I/O bus

Sourcing Hard-to-Find & Obsolete 1794 FLEX I/O Parts

Q: Can you support multi-unit or repeat RFQ requests?
A: Yes. Send the model list, target quantity and destination so DRIVEKNMS can review sourcing options and quote the requirement as a project RFQ.

Quality Control for the 1794 FLEX I/O Range

The 1794 FLEX I/O architecture presents specific test challenges due to its shared backplane bus and terminal base interface. DriveKNMS applies a structured verification protocol to all 1794 modules prior to shipment:

• Backplane continuity test: Each module is seated on a live 1794 terminal base and backplane bus integrity is verified under load.
• Adapter communication validation: For units such as the 1794-AENT, EtherNet/IP Class 1 connection establishment is confirmed using a ControlLogix test rack. CIP identity object, electronic keying, and I/O data table mapping are all verified.
• Analog accuracy calibration: Analog I/O modules (1794-IE8, 1794-OE4, 1794-IR8, 1794-IT8) are tested against NIST-traceable reference instruments across the full input/output range.
• Digital channel isolation test: All digital I/O channels are individually exercised. Leakage current and ON/OFF threshold voltages are measured against Rockwell published specifications.
• Firmware and revision audit: Module firmware revision is read via RSLogix 5000 / Studio 5000 and documented on the test certificate accompanying each shipment.
• Visual and mechanical inspection: Connector pins, locking tabs, and terminal base alignment features are inspected under magnification. Modules with bent pins, cracked housings, or corroded contacts are rejected.
