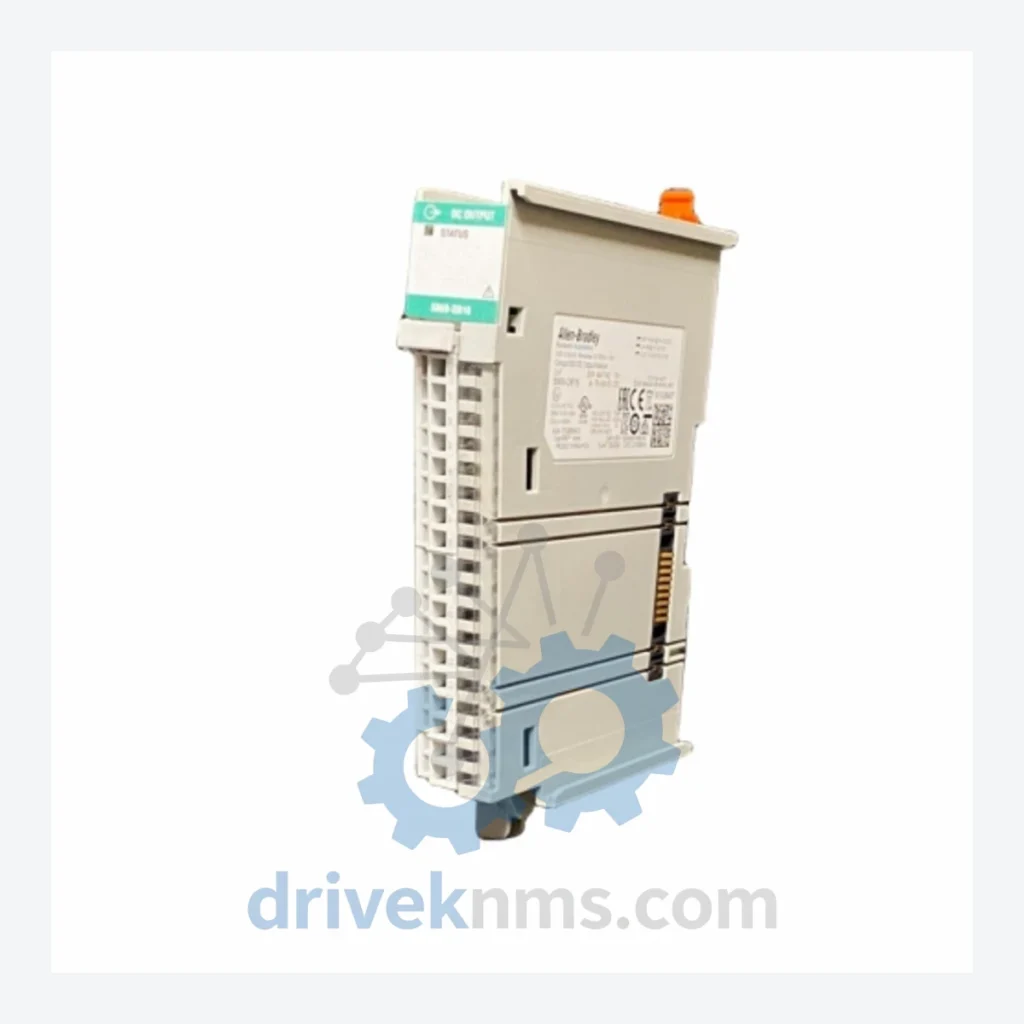

Allen-Bradley Compact 5000 5069-OW16 Output Module

Technical Dossier

Product Details And Specifications

Allen-Bradley Compact 5000 (5069) Series: Comprehensive Module Range and Technical Overview

The Allen-Bradley Compact 5000 I/O system, identified by the 5069 prefix, is Rockwell Automation's current-generation modular I/O platform designed for high-density, high-performance industrial control applications. Deployed across petrochemical refineries, nuclear auxiliary systems, offshore platforms, LNG terminals, and continuous-process manufacturing facilities, the 5069 series represents the architectural successor to the legacy 1769 CompactLogix and 1756 ControlLogix I/O subsystems. The 5069-OW16 is a 16-channel relay output module within this platform, providing isolated contact closure outputs suitable for controlling solenoids, motor starters, pilot lights, and other AC/DC field devices up to 240V AC / 30V DC.

The Compact 5000 system operates on the Compact 5000 I/O bus and is natively compatible with the 5069-L3 and 5069-L4 series CompactLogix 5380 and 5480 controllers. Its backplane communication architecture uses a high-speed serial bus that delivers deterministic scan times and supports partial fault isolation — a critical requirement in SIL-rated process environments.

The Evolution of Compact 5000 (5069) Architecture

Rockwell Automation introduced the Compact 5000 I/O platform in 2015 as a direct response to the bandwidth and density limitations of the 1769 CompactLogix I/O bus. The 1769 system, introduced in the early 2000s, used a passive backplane with a maximum of 16 I/O modules per local bank and a shared bus architecture that created scan-time bottlenecks in high-channel-count applications.

The 5069 platform resolved these constraints through three architectural changes: (1) a dedicated high-speed serial backplane per module slot, eliminating shared-bus contention; (2) native support for CIP Safety and CIP Motion within the same chassis without gateway hardware; and (3) a standardized 35mm DIN-rail form factor with tool-less wiring base removal, reducing mean time to repair (MTTR) in field environments.

Compatibility note: 5069 modules are not backward-compatible with 1769 CompactLogix racks. Migration from 1769 to 5069 requires controller replacement (5069-L3x or 5069-L4x series) and full I/O rewiring. For facilities operating legacy 1769 systems, DriveKNMS maintains parallel spare parts inventory for both generations to support phased migration programs.

5069 Compact 5000 Full Catalog & Functionalities (SKU List)

Relay & Digital Output Modules

• 5069-OW16: 16-channel relay output, 240V AC / 30V DC, isolated contacts, 2A per channel
• 5069-OW8I: 8-channel isolated relay output, individually isolated contacts, 240V AC / 30V DC, 2A per channel
• 5069-OB16: 16-channel 24V DC sourcing digital output, 0.5A per channel, diagnostic per point
• 5069-OB16F: 16-channel 24V DC sourcing fast output, 1μs response time, motion-capable
• 5069-OB8: 8-channel 24V DC sourcing digital output, 2A per channel, high-current density

Digital Input Modules

• 5069-IB16: 16-channel 24V DC sinking digital input, standard diagnostic
• 5069-IB16F: 16-channel 24V DC sinking fast digital input, 1μs timestamp resolution
• 5069-IA16: 16-channel 120V AC digital input, zero-crossing detection
• 5069-IB8S: 8-channel CIP Safety digital input, SIL 2 / PLd rated
• 5069-OBV8S: 8-channel CIP Safety digital output, SIL 2 / PLd rated, 24V DC sourcing

Analog I/O Modules

• 5069-IF8: 8-channel analog input, 4–20mA / 0–10V, 16-bit resolution
• 5069-IF16: 16-channel analog input, 4–20mA / 0–10V, 16-bit resolution, high-density
• 5069-OF8: 8-channel analog output, 4–20mA / 0–10V, 16-bit resolution
• 5069-IY4: 4-channel universal analog input, configurable per channel (mA, V, RTD, TC)
• 5069-IF8H: 8-channel HART-enabled analog input, pass-through HART communication to field instruments

Communication & Controller Modules

• 5069-L306ERM: CompactLogix 5380 controller, 0.6MB memory, 3 EtherNet/IP ports, 16 axes
• 5069-L310ERM: CompactLogix 5380 controller, 1MB memory, 3 EtherNet/IP ports, 16 axes
• 5069-AEN2TR: Compact 5000 EtherNet/IP adapter, dual-port, DLR-capable, remote I/O expansion

Sourcing Hard-to-Find & Obsolete 5069 Compact 5000 Parts

Although the 5069 Compact 5000 series is Rockwell Automation's current-generation platform and remains in active production as of 2026, specific high-demand modules — including the 5069-OW16, 5069-IB8S, and 5069-IF8H — frequently experience extended lead times of 16–52 weeks through authorized distribution channels due to semiconductor supply constraints and prioritized allocation to OEM accounts.

DriveKNMS maintains a dedicated buffer stock program for the 5069 series, sourcing modules through verified secondary market channels with full traceability documentation. All units are supplied with: original manufacturer packaging where available, date code and lot number records, and a pre-shipment functional test report. For facilities operating under planned maintenance windows or emergency breakdown scenarios, DriveKNMS offers same-day quotation and expedited air freight from bonded warehouse stock.

For legacy 1769 CompactLogix modules that have reached end-of-life (EOL) — including the 1769-OW16, 1769-IQ16, and 1769-IF4 — DriveKNMS provides lifecycle extension sourcing with a minimum 12-month warranty on all refurbished units, supporting facilities that cannot execute full platform migration within current budget cycles.

Quality Control for the 5069 Compact 5000 Range

The 5069 series uses a high-speed serial backplane with active termination and per-slot impedance matching. Standard bench testing is insufficient to validate backplane integrity on these modules. DriveKNMS applies the following test protocol to all 5069 units prior to shipment:

• Backplane communication verification: Each module is seated in a live 5069 rack with a 5069-L3 controller running a diagnostic ladder program. Module identity, firmware revision, and CIP connection establishment are logged.
• Output channel load test (5069-OW16 specific): All 16 relay contacts are cycled under resistive load at rated current (2A per channel) for a minimum of 500 switching cycles. Contact resistance is measured before and after cycling; units exceeding 100mΩ are rejected.
• Isolation integrity test: Channel-to-channel and channel-to-backplane isolation is verified at 500V DC using a calibrated megohmmeter. Minimum acceptable isolation resistance: 100MΩ.
• Firmware revision audit: Module firmware is compared against Rockwell Automation's current release matrix. Modules with known errata-affected firmware versions are updated prior to shipment where field-programmable.
• Thermal burn-in: Units are operated at 50°C ambient for 4 hours under full channel load to screen for early-life component failures.
