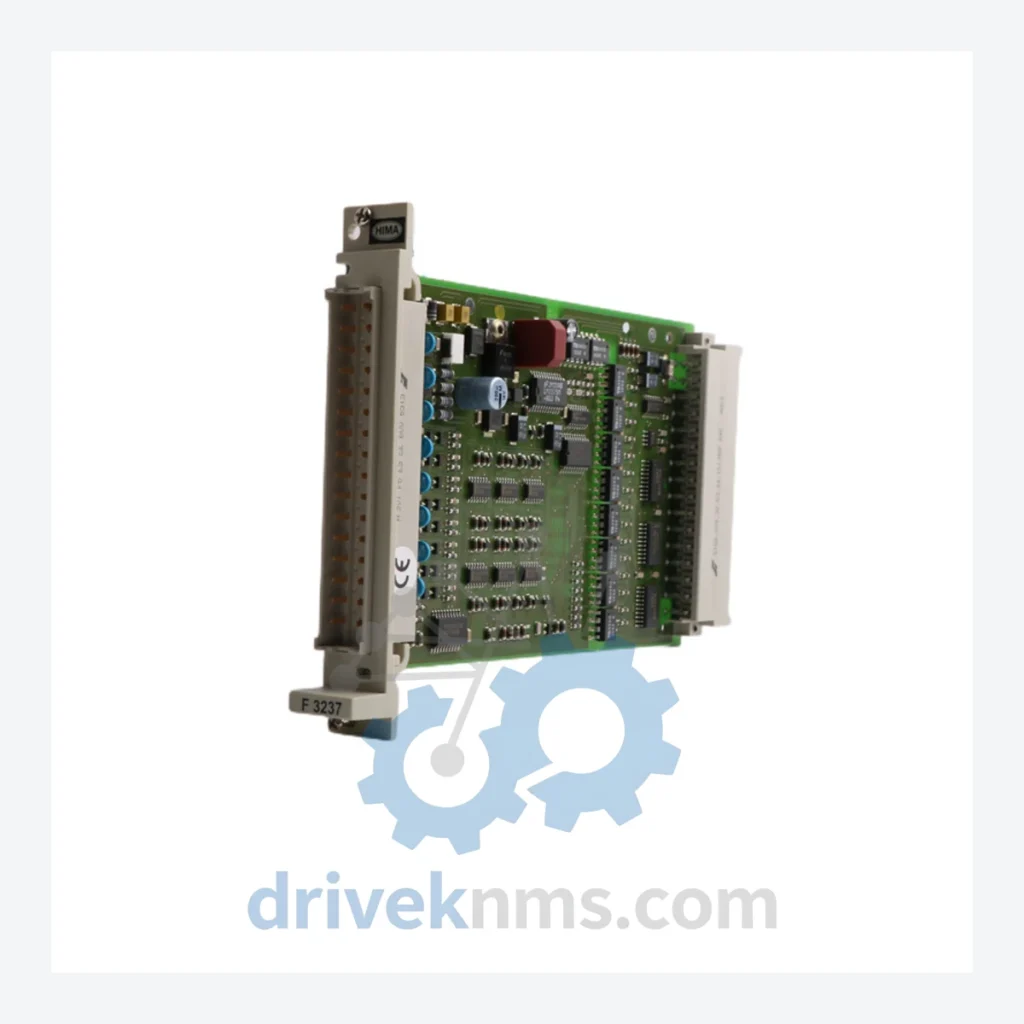

HIMA F3200 Series Modules: F3237 Digital Input Module —

Technical Dossier

Product Details And Specifications

HIMA F3200 Series: Comprehensive Module Range and Technical Overview

The HIMA F3200 series constitutes the core I/O and processing module family for HIMA's HIMatrix and HIQuad programmable safety controllers — TÜV-certified safety systems rated to SIL 3 per IEC 61508. These systems are deployed as primary safety instrumented systems (SIS) across global heavy industry: petrochemical complexes, offshore platforms, nuclear auxiliary systems, LNG terminals, and continuous-process refineries. The F3200 module range provides the physical interface layer between field instrumentation and the safety logic solver, covering digital inputs, digital outputs, analog inputs, analog outputs, and CPU/communication functions. Installed base spans multiple decades, with active deployments in facilities operating under IEC 61511 functional safety management frameworks. The series remains a reference architecture for brownfield SIS upgrades where backward compatibility with existing HIMatrix backplanes is a hard engineering constraint.

The Evolution of F3200 Architecture

The F3200 module family was introduced as part of HIMA's second-generation safety controller platform, succeeding the earlier H41q/H51q relay-based systems. The architecture is built around a passive backplane bus with hot-swap-capable module slots, allowing field replacement without system shutdown under specific operational conditions. Early F3200 revisions used parallel backplane communication; later hardware revisions transitioned to a serialized internal bus to improve noise immunity in high-EMI industrial environments such as motor control centers and high-voltage switchgear rooms.

Compatibility across F3200 hardware revisions is managed through HIMA's SILworX engineering software, which enforces module firmware version matching against the project configuration database. Mixing hardware generations within a single rack requires explicit compatibility validation in the SILworX project. The F3200 series has entered the mature/end-of-active-production phase for several module types; HIMA continues to provide spare parts and firmware support under long-term maintenance agreements, but new project designs are directed toward the HIMatrix X and HIQuad X successor platforms. For facilities with existing F3200 installations, lifecycle extension through certified spare parts sourcing is the primary maintenance strategy.

F3200 Full Catalog & Functionalities (SKU List)

Digital Input (DI) Modules

• F3237: 16-channel 24 VDC digital input module, SIL 3 rated, for HIMatrix/HIQuad racks
• F3236: 8-channel 24 VDC digital input module, single-channel safety input configuration
• F3238: 32-channel digital input module, high-density field wiring, passive backplane interface
• F3230: Digital input module with NAMUR sensor interface, intrinsically safe field circuits

Digital Output (DO) Modules

• F3330: 8-channel 24 VDC digital output module, SIL 3 rated, relay-equivalent solid-state outputs
• F3332: 16-channel digital output module, 0.5 A per channel, short-circuit protected
• F3334: 8-channel relay output module, potential-free contacts, 230 VAC rated
• F3336: 4-channel high-current digital output, 2 A per channel, for solenoid valve actuation

Analog Input (AI) Modules

• F3416: 8-channel analog input module, 4–20 mA / 0–10 V, 12-bit resolution, SIL 2
• F3418: 4-channel analog input module with HART pass-through, field device diagnostics support
• F3420: 8-channel thermocouple/RTD input module, Pt100/Pt1000 and J/K/T type support

Analog Output (AO) Modules

• F3450: 4-channel analog output module, 4–20 mA, 12-bit resolution, loop-powered field devices
• F3452: 8-channel analog output module, voltage and current output selectable per channel

CPU / Communication Modules

• F8650E: Central processing unit for HIQuad systems, dual-redundant CPU configuration support
• F8651E: CPU module with integrated Ethernet safety communication, PROFIsafe master
• F8627X: Communication module, PROFIBUS DP master/slave, F3200 rack integration
• F8628X: Modbus TCP/RTU gateway module for F3200 backplane, non-safety data exchange

Power Supply Modules

• F7130: 24 VDC power supply module for F3200 rack, redundant power bus feed
• F7131: Redundant power supply module, automatic switchover, no interruption to safety logic

Sourcing Hard-to-Find & Obsolete F3200 Parts

DriveKNMS maintains a dedicated inventory program for F3200 series modules that have reached end-of-active-production status with HIMA. For facilities operating under long-term maintenance contracts or IEC 61511 safety lifecycle management plans, sourcing certified replacement modules is a compliance-critical activity — substituting non-verified parts into a SIL-rated system invalidates the safety integrity level claim.

DriveKNMS sources F3200 modules through verified industrial surplus channels, decommissioned plant asset recovery, and authorized distributor overstock. Each unit is cataloged with hardware revision, firmware version label, and physical condition grade prior to listing. For modules where HIMA original firmware is required for SILworX project compatibility, DriveKNMS provides documentation of the firmware version present on the module at time of shipment. Customers requiring specific hardware revision matching for rack-level compatibility are advised to specify the existing installed revision when submitting an inquiry.

Quality Control for the F3200 Range

F3200 modules present specific test challenges due to their backplane bus interface and internal safety self-test architecture. Standard bench power-up is insufficient to verify module functionality — the F3200 backplane protocol requires active communication with a CPU module to complete the module initialization sequence and confirm diagnostic coverage.

DriveKNMS employs a dedicated HIMatrix/HIQuad test rack configured with a reference CPU module and SILworX test project for F3200 module verification. Each module under test is inserted into the rack and subjected to the following protocol: power-on self-test (POST) completion verification, channel-level I/O functional test using calibrated signal sources and loads, backplane communication integrity check, and hardware revision identification via SILworX module scan. Modules that fail any stage of this protocol are quarantined and not listed for sale. Test records including channel-level pass/fail data are retained and available to customers upon request for safety documentation purposes.
