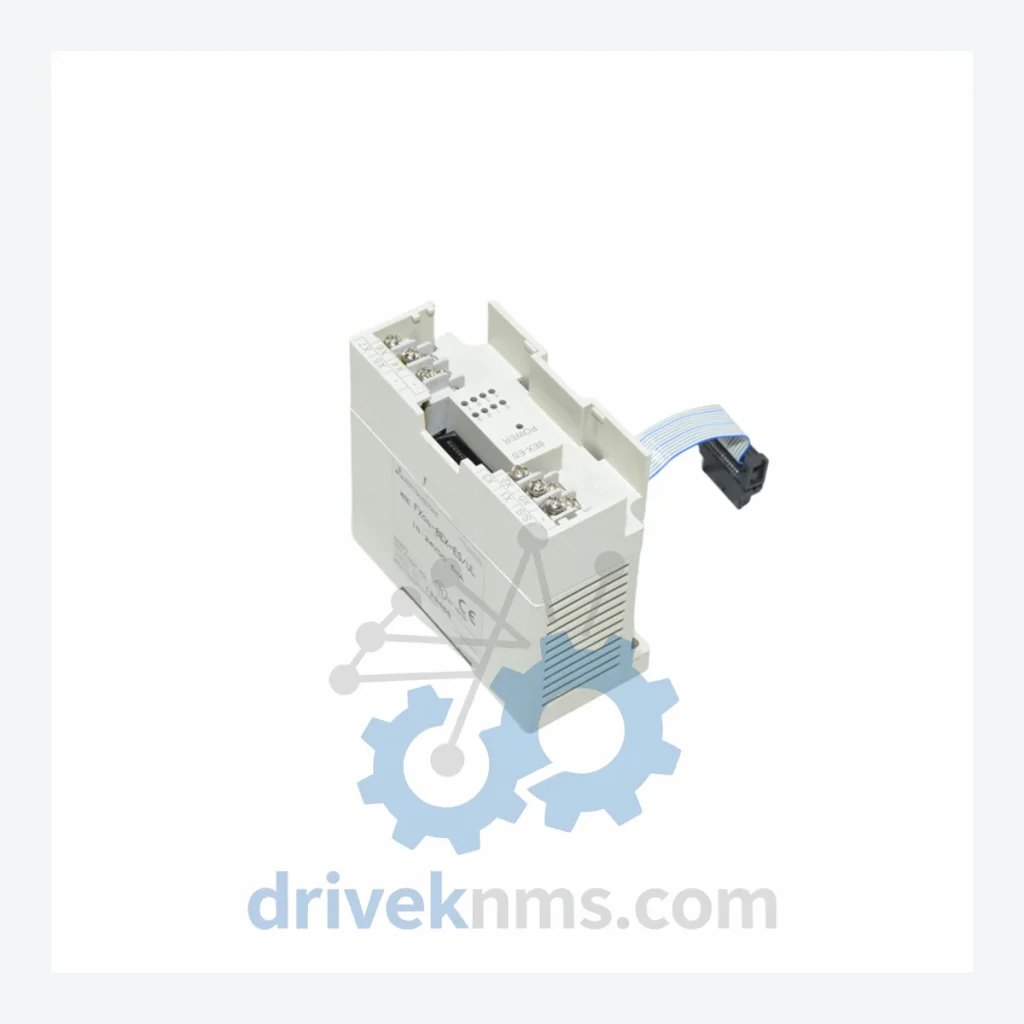

Mitsubishi FX0N-8EX Extension Module – Obsolete MELSEC FX0N Spare Part

Technical Dossier

Product Details And Specifications

Mitsubishi FX0N-8EX Extension Module – Obsolete MELSEC FX0N Spare Part

RFQ support for obsolete parts: Send the model number, required quantity and destination so DriveKNMS can confirm sourcing options before quotation.

Technical Specifications

Solving the Discontinued Hardware Crisis

The Mitsubishi MELSEC FX0N series was introduced in the 1990s and saw widespread deployment across light manufacturing, material handling, food processing, and building automation sectors throughout Asia, Europe, and the Americas. Its compact form factor, low cost, and reliable ladder logic execution made it a default choice for small-to-medium automation cells during that era.

Mitsubishi Electric ceased active production of the FX0N series as the product line matured and was superseded by the FX1N, FX2N, FX3G, and subsequently the iQ-F (FX5U) series. However, the installed base of FX0N systems remains substantial. Many of these systems are embedded in production environments where the cost and disruption of a full PLC migration cannot be justified — particularly in facilities where the surrounding mechanical infrastructure, wiring, and process logic represent decades of accumulated engineering investment.

For plant engineers and maintenance managers operating FX0N-based systems, the practical strategy is not migration — it is strategic spare parts inventory. Holding one or two verified FX0N-8EX units on the shelf converts a potential multi-week production stoppage into a same-shift repair. The cost differential between a spare module and a system migration is not marginal; it is typically two to three orders of magnitude.

Condition & Reliability Assurance

DriveKNMS applies a structured 5-step quality process to all discontinued modules before dispatch:

• Step 1 – Visual and Mechanical Inspection: Full external inspection for physical damage, connector pin condition, label integrity, and housing cracks. Modules with compromised housings are rejected at this stage.
• Step 2 – Electrolytic Capacitor Assessment: FX0N-series modules manufactured in the 1990s and early 2000s contain electrolytic capacitors with a defined service life. Each unit is assessed for capacitor aging indicators including bulging, leakage residue, and ESR deviation. Units showing capacitor degradation are flagged and not dispatched as functional replacements.
• Step 3 – Firmware and Label Version Verification: Where applicable, firmware version markings are cross-referenced against known FX0N-8EX production revisions to confirm authenticity and compatibility.
• Step 4 – Pin and Connector Corrosion Check: All I/O terminal blocks and extension connector pins are inspected under magnification for oxidation, corrosion, and mechanical deformation. Affected contacts are cleaned or the unit is rejected.
• Step 5 – Functional Power-On Test: Each unit is powered and input point response is verified against specification prior to packaging.

Key Features for System Maintenance

Q: How should a facility approach long-term spare parts planning for FX0N systems?
A: For any FX0N installation expected to remain in service beyond 3 years, the recommended minimum spare holding is: one main unit of the installed model, one FX0N-8EX per installed unit, and one power supply module. This inventory profile covers the three most common failure points and eliminates dependency on spot-market availability at the time of failure.

Q: Can the FX0N-8EX be used with FX1N or FX2N main units?
A: The FX0N-8EX is designed for the FX0N extension bus architecture. Compatibility with FX1N or FX2N main units is not confirmed and should not be assumed without engineering verification.
