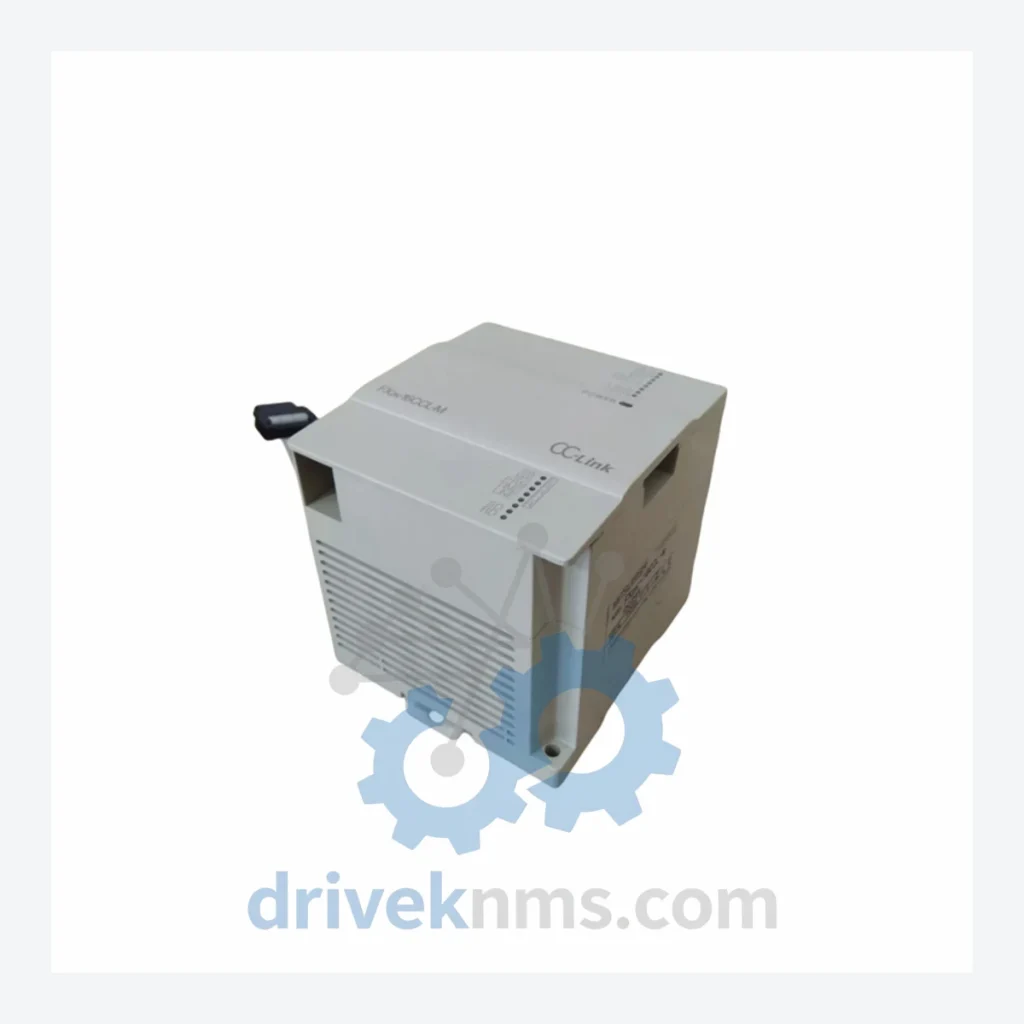

Mitsubishi FX2NC-16EX: MELSEC FX2NC Series Digital I/O Expansion Module — Specs, Models & Availability

Technical Dossier

Product Details And Specifications

Mitsubishi Electric MELSEC FX2NC Series: Comprehensive Module Range and Technical Overview

The Mitsubishi Electric MELSEC FX2NC series is a compact, connector-type programmable logic controller platform engineered for space-constrained industrial automation environments. Deployed extensively across chemical processing plants, oil refineries, automotive assembly lines, and nuclear auxiliary systems, the FX2NC platform occupies a defined position in Mitsubishi's MELSEC-F family as the high-density, connector-based evolution of the FX2N architecture. Its reduced footprint — achieved through the elimination of screw-terminal wiring in favor of MIL connector interfaces — made it the preferred choice for OEM machine builders and panel integrators operating under strict cabinet space constraints. The series supports up to 256 I/O points via expansion, with a base unit processing speed of 0.08 µs per basic instruction, placing it in the mid-range performance tier of the MELSEC-F lineup. Installed base across global heavy industry remains substantial, and demand for spare parts and replacement modules continues from facilities operating legacy infrastructure.

The Evolution of FX2NC Architecture

The FX2NC series was introduced as a connector-type derivative of the FX2N, sharing the same CPU instruction set and ladder logic compatibility while adopting a physically smaller form factor. Early FX2NC base units (circa early 2000s) supported the same MELSEC-F peripheral bus as the FX2N, enabling mixed-series expansion in transitional installations. The architecture uses a proprietary high-speed serial bus for communication between the base unit and expansion modules, with a maximum extension cable length of 1.5 m between units.

As the FX3UC series emerged as the successor platform — introducing USB programming ports, built-in CC-Link/LT support, and higher-speed instruction processing — the FX2NC entered a maintenance phase. Mitsubishi Electric officially transitioned the FX2NC to a limited-production status, with the FX5UC now representing the current-generation compact connector-type PLC. Facilities running FX2NC installations face a defined compatibility boundary: FX3UC and FX5UC expansion modules are not directly interchangeable with FX2NC expansion slots without adapter hardware. This architectural discontinuity is the primary driver of sustained aftermarket demand for genuine FX2NC expansion modules.

FX2NC Full Catalog & Functionalities (SKU List)

Digital Input/Output Expansion Modules

• FX2NC-16EX: 16-point 24VDC sink/source digital input expansion module, connector-type terminal.
• FX2NC-16EYT: 16-point transistor (sink) digital output expansion module, connector-type.
• FX2NC-16EYT-DSS: 16-point transistor (source) digital output expansion module, connector-type.
• FX2NC-32EX: 32-point 24VDC digital input expansion module, high-density connector interface.
• FX2NC-32EYT: 32-point transistor (sink) digital output expansion module, connector-type.
• FX2NC-32EX-DS: 32-point digital input module with DC power supply input, connector-type.
• FX2NC-32EYT-DS: 32-point transistor output module with DC power supply, connector-type.

Analog I/O Modules

• FX2NC-4AD: 4-channel analog input module, 12-bit resolution, voltage/current selectable per channel.
• FX2NC-2DA: 2-channel analog output module, 12-bit resolution, voltage/current output.
• FX2NC-4AD-PT: 4-channel PT100 resistance temperature detector input module.
• FX2NC-4AD-TC: 4-channel thermocouple input module, supports K/J/T/E/R/S/B types.

Communication & Network Adapter Modules

• FX2NC-232ADP: RS-232C communication adapter for serial device interfacing, connector-type.
• FX2NC-485ADP: RS-485/RS-422 multi-drop communication adapter, supports MODBUS RTU.
• FX2NC-CNV-IF: Interface converter unit enabling FX2N-series expansion modules to connect to FX2NC base units.

Base CPU Units

• FX2NC-32MT-DSS: 32 I/O base unit, transistor (source) output, DC power supply, built-in 8K step program memory.
• FX2NC-96MT-DSS: 96 I/O base unit, transistor (source) output, DC power supply, maximum I/O configuration.

Sourcing Hard-to-Find & Obsolete FX2NC Parts

The FX2NC series has entered the mature/end-of-production phase of its lifecycle. Mitsubishi Electric has progressively reduced standard channel availability for new FX2NC modules, with lead times from authorized distributors extending significantly for low-volume SKUs. DriveKNMS maintains a dedicated inventory of FX2NC expansion modules — including the FX2NC-16EX, FX2NC-4AD, FX2NC-232ADP, and FX2NC-CNV-IF — sourced from decommissioned equipment, verified surplus stock, and controlled factory channels.

For facilities operating FX2NC-based systems under long-term maintenance contracts (LTMS), DriveKNMS provides: verified genuine modules with full traceability documentation, functional test reports issued per unit, and cross-reference support for identifying compatible FX3UC or FX5UC migration paths where direct replacement is not feasible. Emergency same-day quotation is available for critical plant shutdown scenarios.

Quality Control for the FX2NC Range

FX2NC expansion modules communicate with the base CPU via a proprietary high-speed serial backplane bus. Counterfeit and refurbished-without-disclosure units in the secondary market frequently exhibit bus timing errors that do not manifest during basic power-on tests but cause intermittent communication faults under load. DriveKNMS applies a structured test protocol to all FX2NC modules prior to shipment:

• Full I/O point functional verification under rated voltage and load conditions.
• Backplane bus communication integrity test using a reference FX2NC base unit with logged cycle-time monitoring.
• Analog module calibration verification against NIST-traceable reference instruments (for 4AD, 2DA, 4AD-PT, 4AD-TC variants).
• Visual and X-ray inspection of connector pins and PCB solder joints for cold joints and corrosion.
• 48-hour burn-in cycle for modules sourced from unknown storage conditions.
