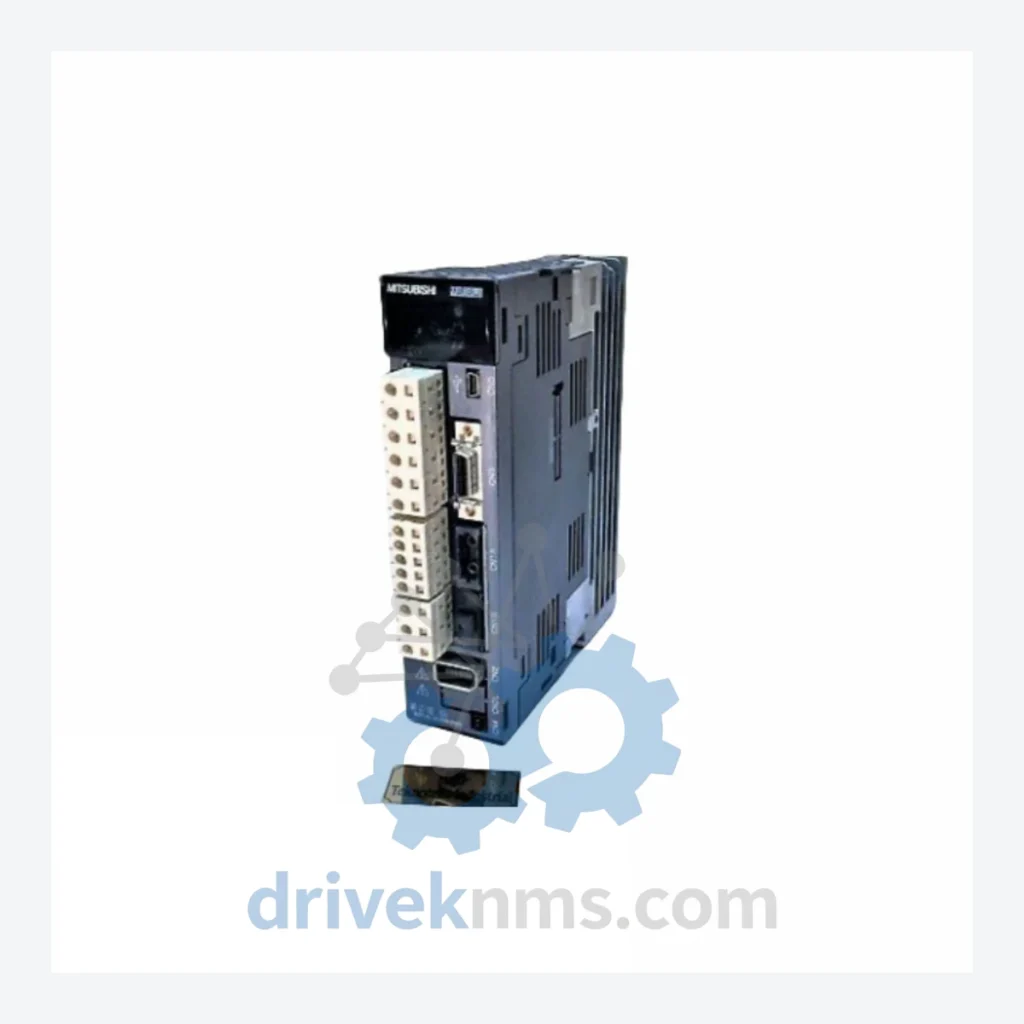

Mitsubishi MR-J3 Series Modules: MR-J3-PFU4

Technical Dossier

Product Details And Specifications

Mitsubishi MR-J3 Series: Comprehensive Module Range and Technical Overview

The Mitsubishi Electric MR-J3 series is a third-generation AC servo amplifier platform deployed across heavy industrial sectors including petrochemical plants, nuclear power facilities, oil refineries, steel mills, and large-scale automated manufacturing lines. Introduced in the early 2000s as a successor to the MR-J2S series, the MR-J3 platform established itself as a global standard for high-precision motion control, with installed bases spanning North America, Europe, and Asia-Pacific. Its SSCNET III optical communication backbone, combined with a wide output range from 100W to 55kW, made it the preferred servo solution for multi-axis coordinated motion in demanding continuous-process environments. The series interfaces natively with Mitsubishi MELSERVO controllers and the MELSEC Q/L/iQ-R PLC families, enabling tight integration into distributed control architectures.

The Evolution of MR-J3 Architecture

The MR-J3 architecture evolved through three distinct phases. The initial release (circa 2003–2006) established the SSCNET III fiber-optic servo network, replacing the earlier RS-422-based SSCNET II used in MR-J2S, and introduced auto-tuning via real-time vibration suppression. The mid-cycle revision (2007–2011) expanded the power range upward to 55kW and introduced the MR-J3-D05 safety sub-module for STO (Safe Torque Off) compliance with IEC 61800-5-2. The mature phase (2012–2018) saw the introduction of the MR-J3W dual-axis variants and enhanced compatibility with the iQ-R motion controller platform. By 2018, Mitsubishi Electric formally transitioned the product line toward the MR-J4 and MR-J5 series, placing MR-J3 in a long-term maintenance lifecycle. Compatibility between MR-J3 amplifiers and MR-J4 motors is limited and requires careful cross-referencing of encoder protocols (SSCNET III vs. SSCNET III/H). Existing MR-J3 installations are not directly upgradeable to MR-J5 without controller and wiring changes.

MR-J3 Full Catalog & Functionalities (SKU List)

The following SKUs represent verified, commonly stocked models within the MR-J3 series, classified by functional category:

Servo Amplifiers — Standard (Single-Axis)

• MR-J3-10A: 100W single-axis servo amplifier, 200–230V AC input, pulse train / analog command interface.
• MR-J3-20A: 200W single-axis amplifier, general-purpose positioning and speed control.
• MR-J3-40A: 400W amplifier, enhanced current loop bandwidth for high-dynamic applications.
• MR-J3-70A: 700W amplifier, compatible with HF-KP and HF-MP motor series.
• MR-J3-100A: 1kW amplifier, standard workhorse for mid-range servo axes.
• MR-J3-200A: 2kW amplifier, suitable for conveyor and indexing table drives.
• MR-J3-350A: 3.5kW amplifier, used in press and forming machine axes.
• MR-J3-500A: 5kW amplifier, heavy-duty single-axis for large inertia loads.
• MR-J3-700A: 7kW amplifier, high-torque applications in metal processing.
• MR-J3-11KA: 11kW large-capacity amplifier, three-phase 200V input.
• MR-J3-22KA: 22kW amplifier, used in large CNC and winding machine axes.

Servo Amplifiers — SSCNET III Bus Type (B-suffix)

• MR-J3-10B: 100W SSCNET III network amplifier, fiber-optic daisy-chain topology.
• MR-J3-100B: 1kW SSCNET III amplifier, motion network slave for Q17nDSCPU / Q172DSCPU controllers.
• MR-J3-200B: 2kW SSCNET III amplifier, synchronized multi-axis motion control.
• MR-J3-500B: 5kW SSCNET III amplifier, high-speed positioning in packaging lines.

Power Factor Correction / Regenerative Units

• MR-J3-PFU4: Power factor correction unit for MR-J3 large-capacity amplifiers (11kW–55kW range); reduces harmonic distortion on AC supply lines; mandatory for installations subject to IEC 61000-3-2 Class A compliance; mounts in the servo panel alongside the main amplifier; rated input 3-phase 200–230V AC.

Safety & Option Modules

• MR-J3-D05: Safety sub-module providing STO and SS1 functions per IEC 61800-5-2; mounts directly onto compatible MR-J3 amplifier bodies.
• MR-J3-A-RJ004: Absolute position encoder battery unit for maintaining position data during power-off cycles.

Sourcing Hard-to-Find & Obsolete MR-J3 Parts

Quality Control for the MR-J3 Range

MR-J3 amplifiers incorporate a multi-layer PCB backplane with SSCNET III fiber transceiver circuits, IGBT power modules, and DSP-based current control loops — all of which require specialized test procedures beyond standard power-on verification. DriveKNMS applies a structured QC protocol to every MR-J3 unit processed: (1) Visual inspection of capacitor banks, IGBT gate driver circuits, and fiber-optic transceiver ports for physical degradation. (2) Insulation resistance test on power terminals at 500V DC. (3) Functional load test using a matched Mitsubishi HF-series servo motor at rated torque and speed, verifying encoder feedback integrity and alarm-free operation across the full speed range. (4) SSCNET III communication verification using a Q172DSCPU or equivalent motion controller to confirm network handshake, axis recognition, and parameter read/write. (5) Final burn-in at 40°C ambient for a minimum of 4 hours. Units that do not pass all five stages are quarantined and not offered for sale.

For MR-J3-PFU4 availability, cross-reference requests, or full series BOM sourcing:

• Email: [email protected]
• WhatsApp: +86 18359293191
• Web: driveknms.com
