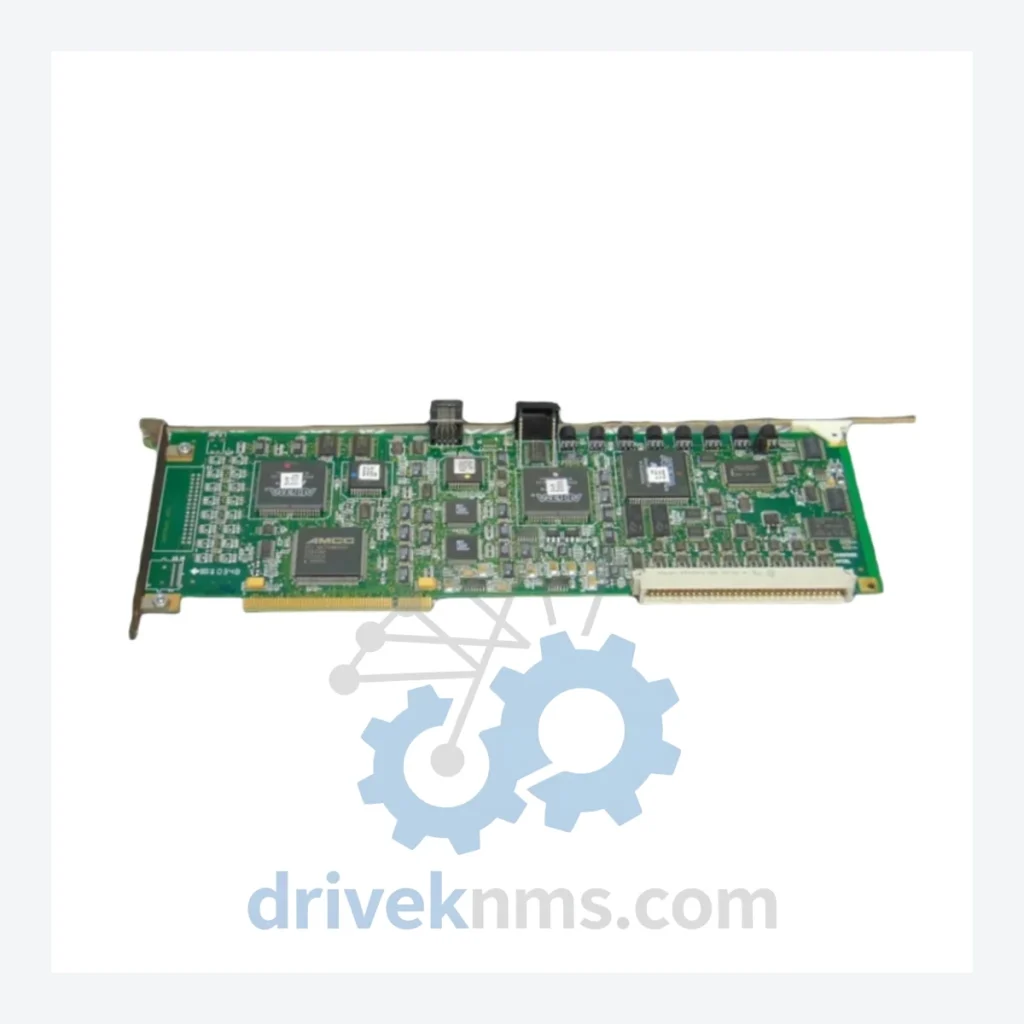

Westinghouse 3A99158G01(4PCRL1) I/O Interface Board – Obsolete WDPF Spare Part

Technical Dossier

Product Details And Specifications

Westinghouse 3A99158G01(4PCRL1) I/O Interface Board – Obsolete WDPF Spare Part

When a Sub 8 Local I/O Interface Board fails inside a Westinghouse WDPF distributed control system, the consequences are not limited to a single loop or instrument. The WDPF architecture routes field I/O through these boards at the subsystem level — a single board failure can take down an entire process unit. For plants still operating on WDPF infrastructure, the cost of an unplanned shutdown, emergency engineering assessment, and forced migration to a modern DCS platform routinely runs into the millions. DriveKNMS holds RFQ-reviewed sourcing status of the 3A99158G01(4PCRL1). This is not a catalog listing — it is a documented, inspected unit available for immediate dispatch.

RFQ support for obsolete parts: Send the model number, required quantity and destination so DriveKNMS can confirm sourcing options before quotation.

Technical Specifications

Note: Electrical parameters such as voltage ratings and bus specifications are not published here to prevent misapplication. Confirmed technical data is provided upon request with system configuration details.

Solving the Discontinued Hardware Crisis

Westinghouse's WDPF platform was widely deployed across power generation, refining, and chemical processing facilities from the 1980s through the early 2000s. Emerson acquired the process control assets, and active support for WDPF hardware has long since ended. Replacement parts are no longer available through any OEM channel.

The Sub 8 Local I/O Interface Board sits at the communication boundary between field instruments and the WDPF processing subsystem. It handles the physical and logical translation of analog and digital field signals into the WDPF data highway protocol. There is no generic substitute. A replacement must be the correct Westinghouse part number — firmware, connector pinout, and bus timing are all board-specific.

How to extend the service life of a WDPF system by 5–10 years through strategic spare parts management:

Condition & Reliability Assurance

DriveKNMS applies a five-step inspection protocol to all obsolete boards before they are offered for sale. This process is designed specifically for the failure modes common to industrial control hardware of this era.

Key Features for System Maintenance

• Drop-in replacement: The 3A99158G01(4PCRL1) installs directly into the existing WDPF Sub 8 slot. No hardware modification to the chassis or backplane is required.
• No reprogramming required: WDPF I/O interface boards do not carry user-configurable application logic. Replacement does not require DCS engineering involvement beyond standard commissioning checks.
• Avoids engineering project costs: Using a verified spare board eliminates the need to initiate a capital project for subsystem replacement. Maintenance budget, not capital budget.Sourcing status is confirmed during RFQ review. and can be shipped within 24–48 hours of order confirmation. Export documentation for international shipments is handled by DriveKNMS.

How should we manage long-term spare parts storage for WDPF hardware?
Store boards in anti-static packaging inside a climate-controlled environment. Avoid temperature cycling and humidity above 60% RH. Inspect stored boards annually. Do not store boards in the same cabinet as chemical solvents or cleaning agents. For storage periods exceeding three years, a pre-installation bench test is recommended.

Can you source other WDPF part numbers?
Yes. DriveKNMS specializes in Westinghouse WDPF and legacy industrial control hardware. Submit your full bill of materials and we will provide availability and pricing for each line item.
