A PROFIBUS failure can appear as a single missing node, a noisy segment, or a controller communication fault. In an older Siemens S7-300 installation, the spare decision is not only about the CP or connector part number. Station address, termination, cable routing, diagnostic data, and the approved recovery test all determine whether the plant regains reliable visibility.
DriveKNMS readers need a practical method for keeping older PROFIBUS networks recoverable. The best spare record links the communication module and connector to the segment map, rack position, device address, and diagnostic evidence that maintenance will use during a short outage.
Map the S7-300 communication path
Record rack position, CPU, CP role, PROFIBUS address, baud rate, segment topology, cable type, termination state, connectors, repeaters, slave list, GSD files, diagnostics, and the production function that depends on the segment.
The live Siemens S7-300 CP 342-5 reference is a catalog match for an RFQ. Compare the installed CP, rack, firmware, configuration, connector path, and network role before approval.

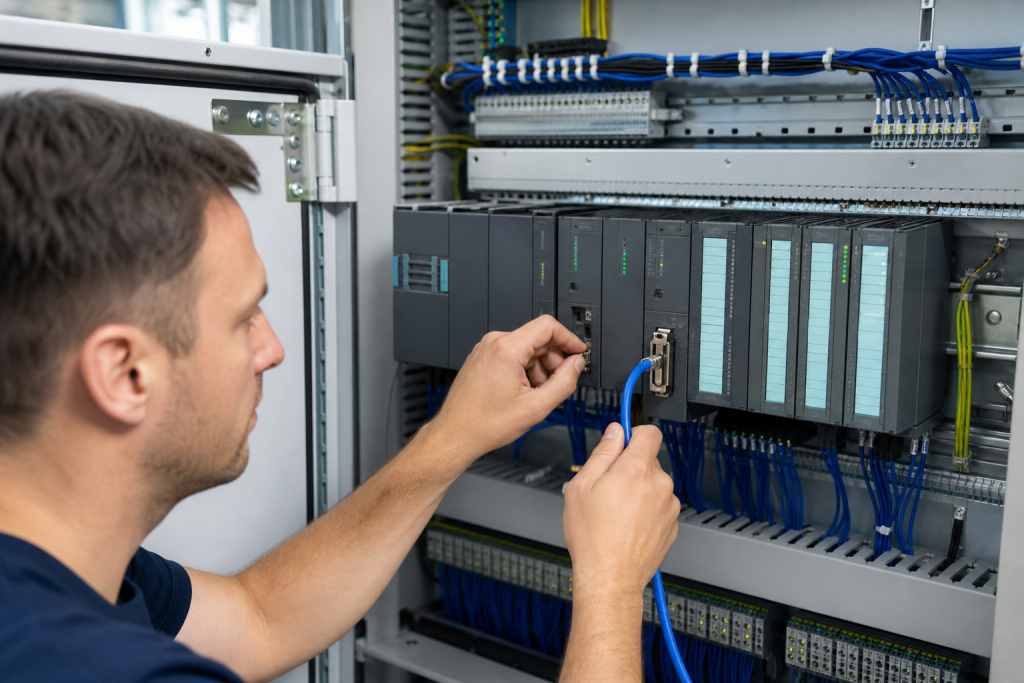

Photograph the CP label, rack, connector, cable shield, termination switches, diagnostic LEDs, adjacent modules, cabinet, and segment entry points. Save the current diagnostic buffer and network configuration.
The connector is part of the network
A correct CP can remain offline when a connector is miswired, termination is duplicated, a shield is open, or a segment has an address conflict. Treat the physical connector and cable evidence as part of the spare plan.
The related Siemens 6ES7972-0BB12-0XA0 PROFIBUS connector reference shows why a low-cost interface item can still determine diagnostic quality and recovery time.
Request exact, tested exchange, repair, refurbished, and substitute options separately, with firmware, connector, cable, termination, diagnostic, and configuration scope stated.
Acceptance must restore the segment
After replacement, verify rack recognition, CP diagnostics, station list, addresses, baud rate, termination, cable shield, slave communication, error counters, and application alarms.
Mark the item exact, configuration restore pending, segment test pending, bench-tested, substitute, or controls-network review required.
Keep the segment map, GSD files, configuration backup, diagnostic captures, connector photos, and final communication test together with the spare record.
Build a PROFIBUS-ready RFQ
State the exact CP or connector model, rack role, firmware, segment address, condition, test scope, included accessories, warranty, and dispatch timing.
Separate a CP replacement from a segment repair or network redesign. They require different isolation, test, and rollback plans.
At receiving, check the label, connector, terminals, enclosure, test report, and included hardware. Photograph the actual item before storage.
Before the maintenance window, confirm the configuration backup, spare connector and cable scope, diagnostic tool, isolation method, and named network approver.
The strongest spare record starts with the installed function rather than a supplier description. State what the item does, where it is mounted, what it connects to, and which production, safety, motion, measurement, or monitoring decision depends on it. This lets engineering, stores, and procurement work from the same evidence.
Keep an exact replacement, a repair exchange, a refurbished bench item, a possible substitute, and a migration candidate as separate options. They do not carry the same approval burden. A direct spare may fit a short outage window; a substitute may require wiring changes, firmware review, parameter work, software restoration, validation, or a controlled production trial.
The live product references in this article are catalog matches, not permission to skip engineering checks. Compare the candidate with the installed label, revision, connector view, power information, configuration, accessory scope, and environmental requirement. If one detail is unknown, record it as an open question instead of silently assuming compatibility.
Receiving inspection should repeat the evidence used for the RFQ. Photograph the received label, packaging, connectors, terminals, mounting features, condition, and included accessories. Record what was checked and what remains unknown. An item that looks clean is not automatically field-ready, and an item that powers up is not automatically accepted by the installed function.
Review the spare before the maintenance window, not only after a failure. Confirm that the item is physically present, the accessory scope is complete, the backup or configuration path is available, the test equipment is ready, and the decision owner is still named. If the item is stored at another location, confirm transport time and release authority.
A good quotation response mirrors the plant record. It states the exact model, actual condition, test scope, included hardware, warranty, dispatch timing, and unresolved compatibility questions. Avoid a quote that quietly combines an exact part, an exchange repair, and a possible substitute under one generic compatible heading.
Before the maintenance window, confirm the approved isolation and test method. For control and I/O hardware, that may include a controlled dry run; for instrumentation and monitoring, it may include calibration or baseline comparison; for networks and generators, it may include a staged functional test. The acceptance method should be named before the part is ordered.
Finally, assign ownership for each decision. Procurement can verify identity and commercial terms; stores can verify packaging and label; maintenance can verify installation; and the responsible controls, safety, motion, reliability, instrumentation, or network engineer can approve functional recovery.
FAQ
What must match on an S7-300 PROFIBUS spare?
Match CP role, rack position, firmware, configuration, address, segment, connector, termination, cable, and diagnostic method.
Can a similar Siemens CP be used?
Only after rack, protocol, firmware, configuration, address, diagnostics, and controls approval are checked.
Why does the connector matter?
Wiring, shielding, termination, and mechanical fit can determine whether the segment recovers cleanly.
What proves PROFIBUS recovery?
CP recognition, correct station list, stable diagnostics, valid slave communication, acceptable error counters, and restored application visibility.
Send DriveKNMS the Siemens CP and connector labels, rack and segment photos, configuration status, condition requirement, and recovery deadline. We can help prepare a reviewable S7-300 PROFIBUS spare RFQ.
