Legacy machine restarts often fail at the interface between an old PLC and the field devices around it. The Mitsubishi FX2N-32ER combines controller-side expansion, digital points, relay behavior, commons, and field wiring. A part number alone does not prove that a replacement will restore the machine sequence.
DriveKNMS readers need a practical method for buying an obsolete Mitsubishi PLC I/O spare without losing the program, wiring, or acceptance evidence. The goal is to reduce the time between receiving the module and proving the first safe cycle.
Identify the FX2N installation
Record the PLC base, expansion position, module label, input and relay-output arrangement, common terminals, field voltage, load type, program version, and machine function carried by each critical point.
The live Mitsubishi FX2N-32ER reference is a catalog match for an RFQ. Compare the installed module, base, terminals, voltage, relay load, and expansion position before approval.

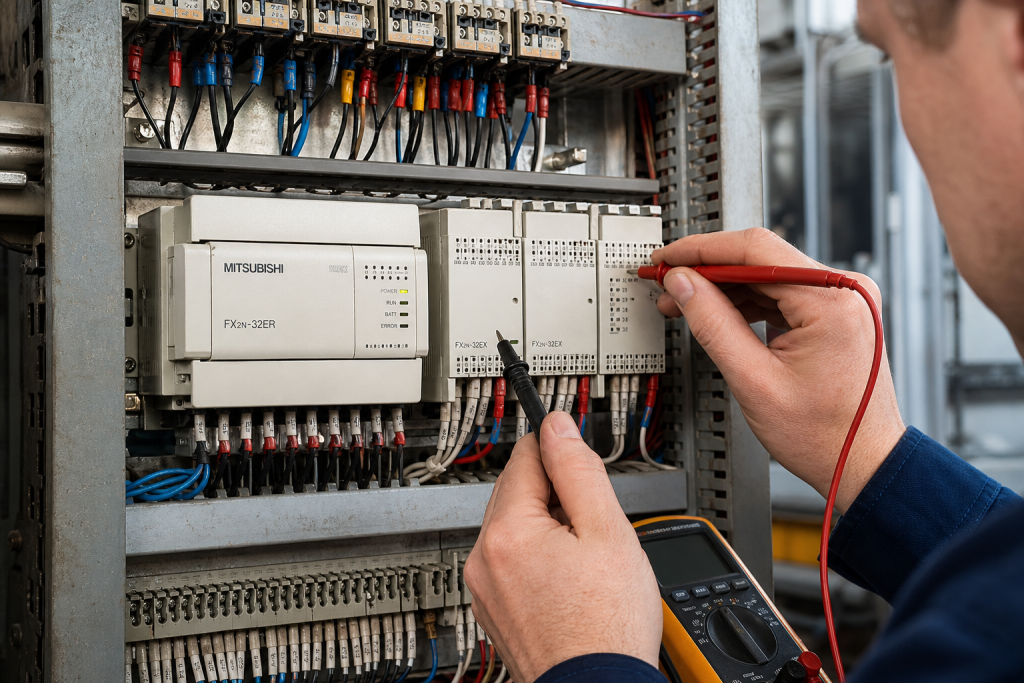

Photograph the PLC rack, module label, terminal strip, wire numbers, output loads, status LEDs, expansion cable, and cabinet environment.
Relay outputs create a second failure path
A replacement may report healthy logic while a relay contact, common, fuse, contactor coil, suppression device, or field cable remains open. Save point-by-point evidence before declaring the PLC module faulty.
The related Yaskawa control-board reference illustrates why a machine restart may involve another legacy control dependency that must remain separate from the FX2N I/O decision.
Ask for exact, tested exchange, repair, substitute, and engineering-review options as separate commercial lines, with actual-item photos, relay test scope, condition, accessories, warranty, and dispatch timing.
Acceptance must include the machine sequence
After replacement, verify expansion recognition, input states, relay contact behavior, commons, program restore, interlocks, alarms, manual controls, and the approved dry cycle.
Mark the item exact, relay-load check pending, bench-tested, substitute, or engineering review required.
Keep module and PLC labels, program backup, point map, contact measurements, wiring evidence, and final machine acceptance together.
Protect the legacy recovery path
Keep a tested copy of the PLC program and a readable point list with the spare. A module cannot restore a sequence if the program or comments are unavailable.
Separate a direct FX2N replacement from any newer PLC conversion. A conversion can be valuable, but it carries different software, wiring, validation, and downtime decisions.
At receiving, check terminal screws, relay contacts, enclosure, label, expansion interface, and test evidence. Photograph the actual item before it enters stores.
Before the outage, confirm the spare location, programming cable, backup media, electrical test equipment, and person responsible for the first approved dry cycle.
The strongest spare record starts with the installed function rather than the supplier description. State what the item does, where it is mounted, what it connects to, and what production, safety, motion, measurement, or monitoring decision depends on it. This lets engineering, stores, and procurement work from the same evidence.
Keep an exact replacement, a repair exchange, a refurbished bench item, a possible substitute, and a migration candidate as separate options. They do not carry the same approval burden. A direct spare may fit a short outage window; a substitute may require wiring changes, firmware review, parameter work, software restoration, validation, or a controlled production trial.
The live product references in this article are catalog matches, not permission to skip engineering checks. Compare the candidate with the installed label, revision, connector view, power information, configuration, accessory scope, and environmental requirement. If one detail is unknown, record it as an open question instead of silently assuming compatibility.
Receiving inspection should repeat the evidence used for the RFQ. Photograph the received label, packaging, connectors, terminals, mounting features, condition, and included accessories. Record what was checked and what remains unknown. An item that looks clean is not automatically field-ready, and an item that powers up is not automatically accepted by the installed function.
Review the spare before the maintenance window, not only after a failure. Confirm that the item is physically present, the accessory scope is complete, the backup or configuration path is available, the test equipment is ready, and the decision owner is still named. If the item is stored at another location, confirm transport time and release authority.
A good quotation response mirrors the plant record. It states the exact model, actual condition, test scope, included hardware, warranty, dispatch timing, and unresolved compatibility questions. Avoid a quote that quietly combines an exact part, an exchange repair, and a possible substitute under one generic compatible heading.
Before the maintenance window, confirm the approved isolation and test method. For control and I/O hardware, that may include a controlled dry run; for instrumentation and monitoring, it may include calibration or baseline comparison; for networks and generators, it may include a staged functional test. The acceptance method should be named before the part is ordered.
Finally, assign ownership for each decision. Procurement can verify identity and commercial terms; stores can verify packaging and label; maintenance can verify installation; and the responsible controls, safety, motion, reliability, instrumentation, or network engineer can approve functional recovery.
FAQ
What must match on an FX2N-32ER spare?
Match PLC family, expansion position, input and relay-output arrangement, commons, voltage, terminal layout, program, and machine role.
Can a transistor-output module replace it?
Not without checking load behavior, wiring, suppression, commoning, speed requirements, and controls approval.
What should the RFQ include?
Send PLC and module labels, point map, wiring photos, load details, program status, condition, test scope, and deadline.
What proves restart readiness?
Expansion recognition, correct I/O states, relay behavior, program restore, alarms, interlocks, manual controls, and an approved dry cycle.
Send DriveKNMS the FX2N rack and module labels, point map, wiring and load photos, program status, condition requirement, and deadline. We can help prepare a practical Mitsubishi legacy-spare RFQ.
